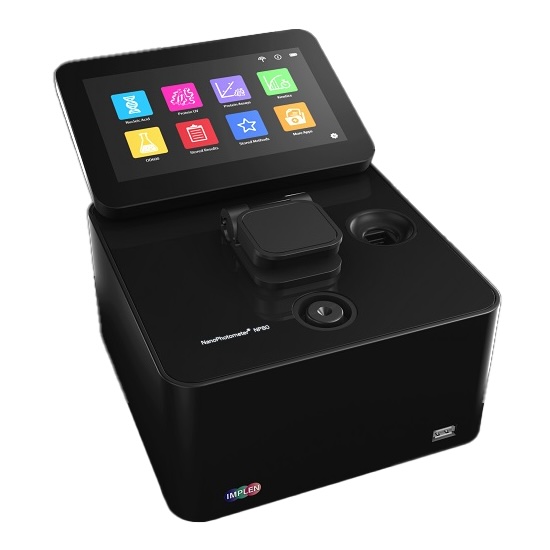

Implen NanoPhotometer® NP80 Spectrometer

• Accurate: Patented Sample Compression Technology™ with guaranteed fixed path lengths allows for unmatched accuracy and precision. Independent from surface tension and free from evaporation. Lifetime accuracy guaranteed.
• Recalibration-free: Sealed optics without path length drift eliminates the need for costly and time-consuming recalibrations. Durable, inert surfaces provide easy-to-clean, scratch-resistant surfaces that do not require reconditioning.
• Easy: NPOS Operating System: intuitive graphical user interfaces (GUI) providing one-step method access, pre-programmed and customizable applications based on the ultimate level of data security.
• Flexible: Control your NanoPhotometer® via Touch Screen / Smart Phone / Tablet / PC.
• Equipped with Wi-Fi, USB A/B, HDMI, and LAN interface connections. Define and store your methods.
• Mobile: Spectroscopy can now be taken anywhere. The optional integrated battery pack provides up to 8 hours of stand-alone battery-powered operation.
• Powerful: Built-in computer with a high-performance Q7 quad core 1 GHz processor and 8 GB of onboard memory provides rapid analysis and easy data storage.
• Fast: Power on and instantly measure without lamp warm-up time. Full scan capability from 200 - 900 nm provides rapid and complete sample analysis in only 3.5 - 6 sec.

Specifications


Item	NP80	N60	N50	C40
Full Spectrum Scan	200 - 900 nm	200 - 900 nm	200 - 650 nm	200 - 900 nm
Detection Range Nanovolume	dsDNA: 1-16,500 ng / uL BSA: 0.03-478 mg / mL	dsDNA: 1-16,500 ng / uL BSA: 0.03-478 mg / mL	dsDNA: 5 -7,500 ng / uL BSA: 0.15-217 mg / mL	N/A
Detection Range Cuvette	dsDNA: 0.1-130 ng / uL BSA: 0.003-3.7 mg / mL	N/A	N/A	dsDNA: 0.1-130 ng / uL BSA: 0.003-3.7 mg / mL
Path-lengths	0.67 and 0.07 mm	0.67 and 0.07 mm	0.67 and 0.07 mm	10 mm
Pre-programming nucleic acid & protein methods	Yes	Yes	Yes	Yes
Measure 260/230 & 260/280 ratios	Yes	Yes	Yes	Yes
LCD Touchscreen	Optional	Optional	Optional	Optional
Customizable Methods	Yes	No	No	Yes
Built-in Vortex	Yes	Yes	No	No
Built-in Battery Pack	Optional	Optional	No	Optional



Implen NanoPhotometer® N120

Microvolume high throughput champion

Fast High Throughput

• Full scan capability range from 200 - 900nm for rapid and complete sample analysis in as little as 1/7 seconds per sample.
• Measure 96 samples up to 126 times faster with 33% less operational steps required compared to microplate readers and other scanning measurement methods.
• The one step Auto Sample Feature saves you hands-on time while giving detailed information for each sample including full high-resolution scan results along with sample purity ratios.

Stand Alone Operation

• The N120 features an integrated computer with an Intel Celeron dual core 2.4 GHz processor and 128 GB of SSD data storage.
• Compact, all-in-one design includes a 7" glove compatible touch display
• Built-in 3hr battery pack saves valuable bench top workspace

Trusted Technology

• For over a decade prestigious biological, chemical and pharmaceutical companies, as well as research organizations around the globe have relied on Implen spectrophotometers. The NanoPhotometer® is the most innovative line of microvolume UV/Vis spectrophotometers - cited by thousands of scientific publications worldwide.

Easy Sample Application

• The N120 features a unique and proprietary 12 Point Technology™ consisting of several positional guides for single and multi-channel pipettes.
• Patented illuminated sample windows and animated sample processing grid endures convenient and error free sample application.

Clean with Confidence

• Smooth quartz glass surfaces provide straightforward cleaning. Feel confident your instrument is clean with integrated warnings that alert users of dirty sample surfaces, fingerprints or lint. A simple swipe with a KimWipe™ makes sample cleaning a breeze.

Accurate

• Patented Sample Compression Technology™ with guaranteed fixed path lengths allows for unmatched accuracy and precision.
• Guaranteed lifetime accuracy.

Consistent Results

• Analyzes up to 12 samples per fun over a wide concentrating range (2 to 8,000 ng/L for dsDNA).
• Black Control™ and Sample Control™ monitor the entire measurement process and highlights reading that are outside of the expected purity range.

Easy

• NPOS Operating System: intuitive graphical user interfaces (GUI) providing one-step method access, pre-programmed and customizable applications based on the ultimate level of data security. Import and export of sample IDs from Excel files is available for fast and automated sample mapping.

Flexible

• Controllable via touchscreen, tablet, or computer.
• Equipped with WiFi, USB A/B, HDMI, and LAN interface connections
• USB flash drive for quick and easy data transfer

Additional Features

• Maintenance Free - no calibration necessary
• Mobile Design - integrated battery, you can now work under laminar flow hood/clean benches or share the device between different lab members or groups
• Sample Control - identifies air bubbles, sample impurities, turbidity, lint residue and potential contaminations
• Optional CFR21 Software - complies with FDA 21 CFR Part 11 requirements
• Universal Linguist - User interface offers selection of languages as well as printing in selected language - currently including English, Chinese, French, German, Japanese, Portuguese, Russian and Spanish
• Ultimate Data Security - The proprietary NanoPhotometer® Operating System (NPOS) protects data in a secure environment immune to known malicious software.
• Universal Data Output - every NanoPhotometer® is able to generate formatted Excel and PDF document files for data processing or archiving of measurements on the lab network
• Flexible Unit Control - Mobile and easy control of the NanoPhotometer® is possible via Wi-Fi from tablets (Android OS & iOS). Easy control from PCs (Windows & Mac) with fast and flexible connection options including Wi-Fi, USB and LAN.
• Confidence with Blank Control™ - Be sure that your data are precise with Implen's unique Blank Control™ feature. Blanks with high background or residues from previous users are the main cause for inaccurate readings. Blank Control™ will protect you from wasting time and precious sample on inaccurate readings caused by high background blanks or inappropriate cleaning.

Click here to shop the updated models NP60 NanoPhotometer® and N50 Spectrometer.

Implen NanoPhotometer® C40 Spectrophotometer

Powerful
Built-in computer with a high performance Q7 quad core 1 GHz processor and 8 GB of onboard memory provides rapid analysis and easy data storage.

Mobile
Spectroscopy can now be taken anywhere. The optional integrated battery pack provides up to 8 hours of stand-alone battery powered operation.

Easy
NPOS Operating System: intuitive graphical user interfaces (GUI) providing one-step method access, pre-programmed and customizable applications based on the ultimate level of data security.

Flexible
Control your NanoPhotometer® via Touch Screen / Smartphone / Tablet / PC.
Equipped with Wi-Fi, USB A/B, HDMI, and LAN interface connections. Define and store your own methods.

Fast
Turn on and instantly measure without lamp warm-up time. Full scan capability from 200 - 900 nm provides rapid and complete sample analysis in only 3.5 sec.

Upgradable
The C40 NanoPhotometer® can be upgraded to a full microvolume Spectrophotometer using Implen's proven Submicroliter cell which utilizes its patented Sample Compression Technology. Being able to measure 0.3µl samples you will have access to comprehensive life science methods and application detecting concentrations from 2ng/ul up to 18,750 ng/ul.

Implen OD600®


Enhancing Microbial Growth Analysis, the Implen OD600® offers a cutting-edge solution designed to streamline and elevate your laboratory measurements. Featuring two built-in programs, OD600 and McFarland, along with a sample-list function for easy data management and export, this device offers unparalleled accuracy and convenience.

The OD600 program enables precise monitoring of bacterial growth in liquid culture media by measuring the optical density at 600 nm, essential for determining growth stages and optimal harvesting conditions. The McFarland program simplifies the estimation of cell suspension density, aiding in tasks such as antimicrobial susceptibility testing and bacterial inoculum preparation.

The Implen OD600® is ideal for diverse laboratory environments worldwide, thanks to its user-friendly design, robust data management capabilities, and seamless LIMS integration. Its multilingual support and adaptable sample compatibility further enhance its versatility. This makes the Implen OD600® perfect for various industries and applications, including microbiology, biotechnology, pharmaceuticals, water quality monitoring, breweries and wineries, the food and beverage industry, clinical and medical research, environmental science, and industrial applications.

Benefits

• Accurate Growth Monitoring: Track bacterial growth phases—from lag to log and beyond—to ensure cells are harvested at peak viability.
• Mobility: Unlimited mobility, suitable for use in fieldwork, safety cabinets, and in incubation chambers, even under anaerobic conditions. (Certain restrictions or limitations apply)
• Efficient Data Management: 4GB internal storage allows for storing over 500,000 measurements. Ensures efficient data management and quick access to all previously measured sample data through the sample list feature.

Product Features

• Higher concentration range, accuracy and reproducibility!
• Pre-programmed with Intuitive OD600 & McFarland Applications
• Utmost Compatibility (DiluCell, Cuvette, Tubes) Without Adapters
• User-friendly, Multilingual Interface
• Stand-alone Operation
• Glove-Compatible 3.5 In. Touch Screen Display
• Integrated Battery with a Runtime > 8 hours (continuous use)
• High Precision Versatile Measurements, Linear up to 4 A
• Data Export to USB in .cvs and .xls Formats
• Large Data Storage & Universal Capabilities
• Easy LIMS integration via WiFi, LAN/Ethernet (REST API PUSH)
• Extremely Lightweight, Compact and Portable
• No Maintenance or Recalibration Needed Ever!

Applications

• Microbiology and Biotechnology: Accurate microbial growth and cell density measurements.
• Pharmaceuticals: Enhanced bioprocess monitoring and liquid pharmaceutical quality testing.
• Water Quality Monitoring: Compliance with safety standards for drinking water, environmental monitoring, and wastewater treatment.
• Breweries and Wineries: Fermentation process control and product quality assurance.
• Food and Beverage Industry: Product quality assurance and microbial growth monitoring.
• Clinical and Medical Research: Diagnostic assay development and vaccine production.
• Environmental Science and Industrial Applications: Ecosystem monitoring, soil microbiology studies, chemical manufacturing quality control, and bioremediation projects.

SmartDrop™ Nano Spectrophotometers

• Microvolume Analysis of DNA, RNA and Proteins
• Quick and accurate results from a sample droplet
• Touch screen control panel, no PC or software required
• Built-in printer and cuvette port for OD600 readings
• XF model includes fluorometer for sensitive DNA quantification

The Accuris SmartDrop™ series of nano spectrophotometers provides quick and easy quantification of small samples. Utilizing a small sample volume eliminates the need for dilutions, providing more accurate results.

A full color, 7 In. touchscreen with icon-driven menus and preprogrammed protocols gets users up and running quickly. No external computer is required. Each unit features a quartz pedestal onto which a drop of sample is placed. The arm is lowered, and the drop is stretched into a liquid column of specified length for spectral analysis. DNA, RNA, and protein concentrations and purity numbers are displayed in a matter of seconds.

The resulting data can be printed, saved in the SmartDrop’s onboard memory or exported via USB as an Excel file. All SmartDrop™ models include an integrated printer. For OD600 readings, each model includes a cuvette port and two optical glass cuvettes. Three SmartDrop™ models are available to meet a range of applications and budgets.

SmartDrop™ L

• Ideal for basic DNA/RNA/protein quantification and purity
• Affordable LED and silicon detector technology
• Fixed 0.5 mm path length, detect up to 2500 ng / uL of dsDNA

SmartDrop™ L is the affordable choice for laboratories needing to determine nucleic acid and protein concentrations and purity of samples. The LED light source and silicon photocell sensor provide readings at 260 and 280 nm. Samples from 1.0 to 2.0 uL are loaded directly on the pedestal. Results are provided in about 5 seconds. The software automatically calculates and displays 260 / 280 ratios.

SmartDrop™ X

• Full-spectrum absorbance scans from 200 to 800 nm
• Quickly calculates and displays 260 / 280 and 260 / 230 ratios
• Long-life Xenon lamp with precision monochromator
• Auto-ranging path lengths of 0.2 mm and 1.0 mm
• Detect up to 4,500 ng / uL of dsDNA without dilution

A full-spectrum UV-Vis spectrophotometer, SmartDrop™ X requires 0.5 to 2.0 uL of sample. In addition to nucleic acid and protein calculations, the software has preset programs for BCA, Bradford, and Lowry assays. A full-spectrum analysis can be performed in about 6 seconds, aiding in the identification of unknowns. Up to 5 specific points on the spectrum can be selected for colorimetric readings output. The long-life Xenon lamp source requires no warm-up and is paired with a highly sensitive CCD detector. To provide the most accurate results, the SmartDrop™ X utilizes 2 path lengths.

SmartDrop™ XF - Spectrophotometer + Fluorometer

• Full-spectrum absorbance scanning and calculations of 260 / 280 and 260 / 230 ratios
• Long-life Xenon lamp with precision monochromator
• Auto-ranging path lengths of 0.05 mm, 0.2 mm, and 1.0 mm
• Detect up to 15,000 ng / uL of dsDNA without dilution
• Integrated fluorometer for sensitive quantitation of low-concentration nucleic acids

This top of the line spectrophotometer can perform not only UV-Vis readings in the range of 200-800 nm but also fluorescence readings. Like the SmartDrop™ X, the SmartDrop™ XF features predefined programs for nucleic acids, proteins, and various colorimetric assays. The patented, motorized system gently stretches the sample column and allows for three different path lengths, providing accurate readings of samples from 0.5 to 2.0 uL without dilution. The integrated fluorometer yields more accurate, sensitive, and selective quantitation of nucleic acids. The blue light channel (460 nm) is useful for the detection of dyes such as PicoGreen and RiboGreen as well as GFP and fluorescein. UV, green, and red channel models are available upon request.


Grant Bio DEN-600 Photometer

The Grant Bio DEN-600 is a compact, portable, and rechargeable photometer designed for fast and accurate optical density measurements at 600 nm. Ideal for microbiology and protein analysis workflows, this device provides a reliable and cost-effective alternative to traditional spectrophotometers.

The DEN-600 supports multiple measurement methods, including:

• OD600 readings for estimating total cell concentration
• McFarland turbidity measurements (McF) for microbial standardization
• Bradford protein assay for protein quantification

Its lightweight, battery-powered design allows convenient use inside biosafety cabinets, anaerobic chambers, or any workspace requiring quick relocation. The versatile cell holder accommodates standard 10 mm cuvettes, round-bottom tubes, conical vials, and Falcon tubes. With USB connectivity and integrated DEN software, users can easily transfer, analyze, and calculate data for streamlined laboratory workflows.

Applications

• Cell concentration measurement
• Cell growth and culture density estimation
• Logphase detection for microbial induction
• Competent cell preparation
• Bradford protein quantification
• Antibiotic susceptibility testing
• Inhibitory testing

DEN MCF Standards (DENMCFSTDS)

The DEN-600 is compatible with a set of liquid McFarland standards in 16 mm glass tubes (0.5/1.0/2.0/3.0/4.0). Standards may be transferred into alternative tubes.

*Shelf-life no longer valid after transfer. Requires D16 adaptor.

UNICO® SQ Scanning UV-VIS Spectrophotometers

The UNICO® SQ Series UV-Visible Scanning Spectrophotometer delivers advanced analytical capabilities in a cost-effective, stand-alone design. The UNICO® SQ-2800 is the most economical general-purpose model in the SpectroQuest® line, offering excellent performance for laboratories requiring reliable UV-VIS measurements across a wide wavelength range.

With a 190 to 1,100 nm wavelength range and 4 nm fixed spectral bandwidth, the SQ-2800 supports a wide variety of applications. Standard functions include full wavelength scanning, kinetics, standard curves, and additional analytical modes. An expanded digital interface with internal memory and automatic system check enhances ease of use and consistency.

The instrument features a large, angled LCD display with adjustable contrast for comfortable viewing. Its large sample compartment accommodates a wide range of cell holders and optional accessories, including peristaltic sippers and Peltier temperature control systems. A 4-position manual cell holder allows simultaneous use of 10 mm square cuvettes, while the USB port enables optional software integration for data acquisition and analysis.

The UNICO® SQ-2800 combines flexibility, reliability, and affordability, making it an ideal choice for research, teaching, and routine laboratory analysis.

Main Attributes

• UV-Vis scanning spectrophotometer with advanced analytical functions
• Standard functions include scanning, kinetics, standard curves, and more
• Wavelength range: 190 to 1,100 nm
• Spectral bandwidth: 4 nm (fixed)
• Expanded digital interface with internal memory and auto system check
• Large angled LCD screen with contrast adjustment
• 4-place holder for 10 mm square cuvettes
• Large sample compartment supports multiple accessories
• USB port for optional software connectivity
• Voltage preset at 110 V

Included Accessories

• 10 mm square quartz cuvettes, 2/pk
• 10 mm square glass cuvettes, 4/pk
• Dust cover, 1/ea
• User manual, 1/ea

UNICO® 2150 Productivity UV-VIS Spectrophotometers

The UNICO® 2150 Series UV-Visible Spectrophotometer provides an economical solution for UV-Vis testing without sacrificing essential performance or advanced features. Designed for general laboratory applications, this single-beam spectrophotometer combines ease of use, reliable accuracy, and a broad wavelength range to meet the needs of conventional labs.

Covering a 200 to 1,000 nm wavelength range with a 4 nm spectral bandwidth, the UNICO® 2150 Series supports a wide variety of analytical applications. A digital interface with internal memory allows storage of up to 200 tests, while the built-in auto system check helps ensure consistent operation. The large sample compartment includes a 4-position manual holder for 10 mm square cuvettes, increasing throughput and efficiency.

Equipped with a USB port for optional software, the UNICO® 2150-UV enables data transfer and expanded functionality. Each instrument comes complete with quartz and glass cuvettes, making it ready to use right out of the box.

Main Attributes

• Digital interface with internal memory and auto system check
• Stores up to 200 test results
• Wavelength range: 200 to 1,000 nm
• Spectral bandwidth: 4 nm
• Single-beam, general-purpose design
• 4-place holder for 10 mm square cuvettes
• USB port for optional software connectivity
• Large sample compartment with easy operation
• Voltage preset at 110 V

Included Accessories

• 10 mm square quartz cuvettes, 2/pk
• 10 mm square glass cuvettes, 4/pk
• Dust cover, 1/ea
• User manual, 1/ea

The UNICO® 2150 Series UV-VIS Spectrophotometer is a dependable and cost-effective choice for laboratories seeking accurate absorbance measurements with straightforward operation.


UNICO® 1000 Basic Visible Spectrophotometers

The UNICO® 1000 Series Basic Visible Spectrophotometer is a rugged, easy-to-use instrument designed specifically for educational and general laboratory applications. With its straightforward operation and durable construction, it is an ideal choice for high school and college teaching laboratories.

Operating over a 400 to 1,000 nm wavelength range with a 20 nm spectral bandwidth, the UNICO® 1000 Series supports common instructional and analytical experiments, including Beer-Lambert law studies, absorption spectra, chlorophyll analysis, and protein (Biuret) tests. Built-in secondary filters help reduce stray light and improve measurement precision.

The instrument features a large digital display for easy reading and a student-proof safety stopper integrated into the wavelength dial to protect the monochromator and grating from damage. A USB port allows optional software connectivity for convenient data collection and reporting.

Main Attributes

• Designed for student and teaching laboratory use
• Wavelength range: 400 to 1,000 nm
• Spectral bandwidth: 20 nm
• Sample holder for 10 mm diameter test tubes
• Built-in secondary filters to reduce stray light
• Large, easy-to-read digital display
• Student-proof safety stopper to protect optical components
• USB port for optional software
• Voltage preset at 110 V

Included Accessories

• 10 mm square cuvette adapter, 1/ea
• Dust cover, 1/ea
• User manual, 1/ea

The UNICO® 1000 Series Visible Spectrophotometer offers dependable performance, safety, and simplicity, making it a practical and economical solution for educational and routine laboratory analysis.


UNICO® 1100RS Basic Visible Spectrophotometers

The UNICO® 1100RS Basic Visible Spectrophotometer is a robust, versatile instrument designed for reliable and precise measurements across a wide range of laboratory applications. Ideal for educational, clinical, industrial, and research laboratories, the 1100RS combines user-friendly operation with consistent analytical performance.

Operating over a 335 to 1,000 nm wavelength range, the 1100RS delivers accurate results with a 20 nm spectral bandwidth, ±2 nm wavelength accuracy, and ±1 nm repeatability. Built-in optical controls minimize stray radiant energy to less than 0.5%T at 340 and 400 nm, ensuring dependable measurement quality. A flexible photometric range supports percent transmittance, absorbance, and concentration measurements for varied sample types.

The instrument features a sample holder for 10 mm diameter test tubes, along with a 10 mm square cuvette adapter for added flexibility. A USB port enables optional software connectivity for convenient data collection and analysis. Designed for ease of use, the 1100RS includes a clear digital display and durable construction suited for routine lab work.

Main Attributes

• Wavelength range: 335 to 1,000 nm
• Spectral bandwidth: 20 nm
• Sample holder for 10 mm diameter test tubes
• Photometric range: 0-125%T, 0-2.0 Abs, 0-1999C (Factor)
• Photometric accuracy: ±1.0%T
• Low stray radiant energy (<0.5%T at 340 and 400 nm)
• USB port for optional software
• Voltage preset at 110 V, with selectable 115/230 V ±10%, 60/50 Hz

Included Accessories

• 10 mm test tubes, 12/bx
• 10 mm square cuvette adapter, 1/ea
• Instrument dust cover, 1/ea
• User manual, 1/ea

The UNICO® 1100RS Basic Visible Spectrophotometer delivers dependable performance, flexibility, and value, making it a practical choice for routine visible-range analysis.


Item 685-SC
This double beam, scanning, UV/Visible spectrophotometer has a variety of programmed measurement modes for photometrics, concentration, multi-wavelength, spectrum scanning, kinetics, quantitation, DNA and protein analysis making it ideal for a number of applications.
The stable optics and two detectors measure your samples and reference simultaneously  providing superior measurement accuracy.

The variable spectral bandwidth provides your experiments with robust detection and quantitation limits, as well as optimal data precision and repeatability. This flexible platform allows the user to comply with multiple regulatory agencies using one spectrophotometer- saving money and time. Three scan speeds are available with wavelength scan intervals of 0.1, 0.2, 1, 2 or 5 nm. The large sample chamber is outfitted with a 10 x 10 mm cuvette holder, but allows for an 8-position cuvette changer (order 83070-61 separately) for flexibility.

The integrated user interface provides local controls with the touch of a keypad. The colored graphical display is easy to read and will display spectrum as well as kinetic curves. Prism PC software is supplied with the spectrophotometer to assist the user with post-measurement analysis. The Prism PC software can be used to fully control the spectrophotometer and comes pre-loaded with methods for DNA analysis, including 260/280 and 260/230 ratios with 320 nm correction. Under the multi-wavelength measurement mode, up to 20 wavelengths can be measured simultaneously and quantitation curves can be created by measuring up to 200 standards.

Operating system compatibility: Windows 2000, XP, Vista, Windows 7
Specifications & Description

• Stray Light<0.05%T at 220 nm, 360 nm
• Beam TypeDouble
• Bandwidth0.5 nm, 1.0 nm, 2.0 nm, 4.0 nm, 5.0 nm (variable)
• Min Wavelength (nm)190
• Max Wavelength (nm)1100
• Wavelength Noise<0.0005 A
• Wavelength Accuracy±0.3 nm at 0.5 and 1 nm bandwidth; ±0.5 nm at 2, 4 and 5 nm bandwidth
• Wavelength Reproducibility±0.2 nm
• Min Photometric - Transmittance (%T)1
• Max Photometric - Transmittance (%T)200
• Min Photometric - Absorbance (A)-0.3
• Max Photometric - Absorbance (A)3
• Photometric Accuracy±0.002 A (0-0.5 A); ±0.3%T (0-100%T)

Item 632-521
This easy-to-use spectrophotometer is ideal for the busy technician or student. Wavelength calibration is automatic at start-up and includes an auto-zero (% transmittance) functiona significant time saver. This spectrophotometer is fully GLP (Good Laboratory Practice) compliant. Each sample reading is given a time and date stamp and easily connects to a printerthen simply push the print key to send data.
The included 63-Zero PC software allows you to take and control measurements remotely, and export data and results to Excel, Word, Power Point, and other software applications for storage, reporting, or presentation. Transmittance, absorbance, or concentration with factor value, as well as wavelength are simultaneously. The digital, dual-line LCD shows error messages, prompts, mode indication, and concentration units (ppm, mg/L, g/L, M, %, or blank).

Specifications & Description
