Home  >  Instruments  >  Spectrophotometers  > Implen NanoPhotometer® N120

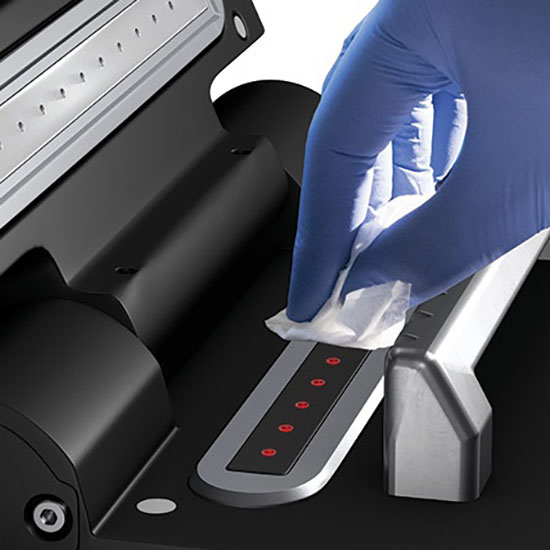

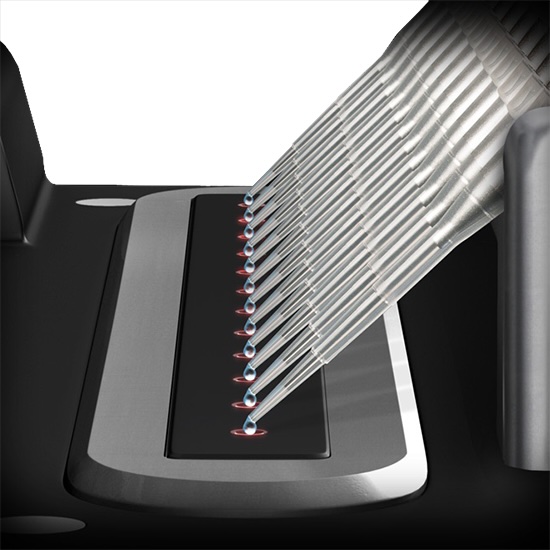

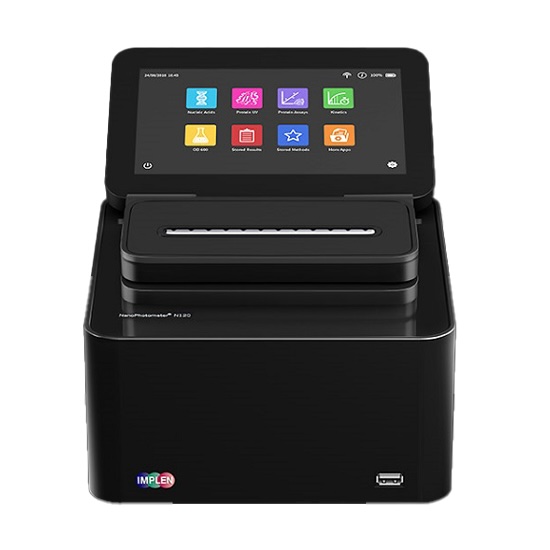

Implen NanoPhotometer® N120

Item #: ASN120

1 year full coverage warranty

NanoVolume Performance
Detection Range dsDNA 2 - 8,000 ng/µl
Detection Range BSA 0.06 - 230 mg/ml
Sample Volume 2 - 3.5 µl
Photometric Range (10 mm equivalent) 0.04 - 160 A
Path Length 1 and 0.125 mm
Dilution Factor 10 and 80
Processing Power & Compatibility
Operating System Linux based NPOS
Onboard Processor Intel Celeron dual core 2.4 GHz
Internal Data Storage 128 GB
Software Compatibility Windows 7, 8, 10 (32 & 64 bit), OS X, iOS Android OS
Optical Specifications
Wavelength Scan Range 200 - 900 nm
Measure Time For Full Scan Range 1.7 - 2.5 sec per sample
Wavelength Reproducibility ± 0.2 nm
Wavelength Accuracy ± 0.75 nm
Bandwidth < 2.5 nm
Absorbance Reproducibility < 0.004 A (1 mm path) @ 280 nm
Absorbance Accuracy < 1.75% @ 0.7 A @ 280 nm of the reading
Stray Light < 1% @ 240 nm using NaI
Optical Arrangement 1 x 3648 CCD Array
Lamp Xenon flash lamp
Lifetime 109 flashes, up to 10 years
General Specifications
Main Body Size 200 x 200 x 120 mm
Weight 3.8 - 5.2 kg depending on configuration
Operating Voltage 90 - 250 V, 50/60 Hz, 90 W, 18/19 VDC

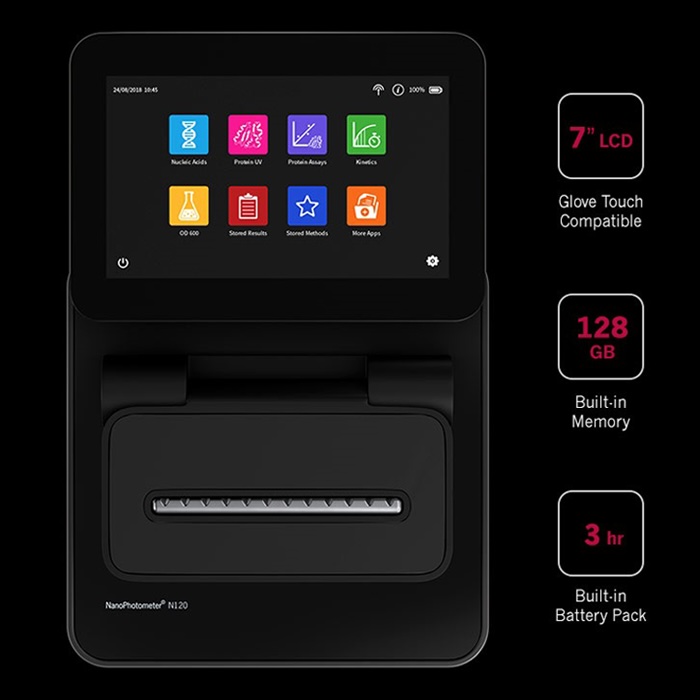

Display 1024 x 600 pixels; glove compatible touchscreen
Built-in Battery Pack 47.5 Wh, 3.3 Ah, 3 h Min. charging cycles: 800
Certification CE, IEC 61010-1:2012 and EN 61326-1:2013
Battery Certification IEC 62133 and UN38.3 transport test
In & Output Ports 2x USB A, USB B, HDMI, Ethernet, WiFi
Security Slot for Kensington lock
Reservoirs


PR1MA™ Standard Solution Reservoirs



Sterile, RNase/DNase-Free Basins for Multi-Channel Pipetting.



PR1MA™ Standard Solution Reservoirs are designed for efficient and contamination-free liquid handling in any laboratory using multi-channel pipettes. Compatible with 4-, 8-, 12-channel, and specialty pipettes, these disposable reservoirs feature graduated inner walls and U-shaped bottoms to minimize reagent waste and ensure complete sample retrieval.



Each reservoir includes pouring spouts in all four corners for easy, drip-free pour-off of unused solutions. Manufactured from clear, medical-grade polystyrene, they are supplied sterile, RNase-, DNase-, and pyrogen-free, and come packaged in eco-friendly, biodegradable bags and recycled cardboard boxes.



Available in 25 mL and 50 mL capacities, each size includes five free protective lids per pack to prevent evaporation, airborne contamination, and solution loss during extended use.



Key Features

  • Graduated inner walls for accurate volume measurements
  • U-shaped bottoms reduce reagent waste
  • Four-corner spouts for easy, spill-free pouring
  • Includes 5 free protective lids with 25 mL and 50 mL versions
  • Sterile, RNase-, DNase-, and pyrogen-free
  • Compatible with all multi-channel pipettes (4, 8, 12-channel, and more)
  • Made from clear polystyrene for high visibility
  • Eco-friendly packaging – biodegradable bags & recycled boxes
  • Available in various pack sizes, including bulk, 5-packs, and individually wrapped
Harvest ASPIR-8
Item#:
ASRESIVOIR7

Multi-Channel Solution Re
Item#:
ASRESIVOIR10

SKU Number Type Battery Touchscreen Vortexer Included Cuvette Port Included Spectrum Read Price Quantity Add to Cart
N120 12-Channel NanoVolume Optional Yes No No 200 - 900 nm
22950.00
Each
N120 Nanophotometer
Implen NanoPhotometer® N120
Special Order
Quantity:
