IC Biomedical K-Series Cryostorage Systems

Item #: ASLN2KSER

Specifications

Model 3K 10K 24K 38K
Item # 3KSBL 10K, 10K-CS100, 10K-CS200 24K, 24K-CS100, 24K-CS200 38K, 38K-CS200, 38K-CS200-GBP
LN2 Capacity 48 L 165 L 365 L 590 L
Weight When Empty 42 lb | 19.1 kg 245 lb | 111 kg 405 lb | 184 kg 565 lb | 256 kg
Weight When Full 125 lb | 56.7 kg 537 lb | 243 kg 1,046 lb | 474 kg 1,616 lb | 733 kg
Neck Diameter 14.0 In. | 356 mm 21.0 In. | 533 mm 31.0 In. | 787 mm 39.0 In. | 991 mm
Overall Height 29.7 In. | 754 mm 44.0 In. | 111.8 mm 44.0 In. | 111.8 mm 49.0i In. | 124.5 mm
Overall Diameter 15.4 In. | 391 mm 23.1 x 30.5 In. | 587 x 775 mm 34.0 x 38.5 In. | 864 x 965 mm 42.0 In. | 1067 mm
Usable height - Internal 19.2 In. | 488 mm 29.0 In. | 737 mm 29.0 In. | 737 mm 29.0 In. | 737 mm
Internal Diameter 14.0 In. | 356 mm 21.0 In. | 533 mm 31.0 In. | 787 mm 39.0 In. | 991 mm
Qty of 2 mL Plastic Vials Held 3,024 Vials 10,400 Vials 24,050 Vials 38,350 Vials
Qty of 81/100 Place Boxes Held N/A 7 17 28
Qty of 25 Place Boxes Held N/A 4 6 6
Qty of Shelves N/A 13 13 13
Box Shape Triangle Square Square Square
Box Size 6.75 x 6.87 In.
171 x 175 mm
3 x 3 In. | 76 x 76 mm AND
5 x 5 In. | 127 x 127 mm
0.55cc Straws, 10 per goblet,
2-13 mm goblets per cane,
Two-tier turn-table inventory
control system
N/A 44000 59400 114000
Roller Base R018-8C00 N/A N/A N/A
CS100 Controller N/A 372540 372541 N/A
CS200 Controller N/A 367901 367914 368086

Blood Bag Capacity

Model 3K 10K 24K 38K
Fenwal #4R5461 - 9953 N/A 235 535 870
Fenwal #4R5462 - 9955 N/A 185 475 680
Fenwal #4R5451 N/A 343 805 1407
Stericon #RCM91D N/A 235 360 560
Chartmed # 7005-2 N/A 105 216 536
Gambro #DF700 N/A 88 200 320
Gambro #DF200 N/A 192 496 496



Warranty

November 2016

Unless a different warranty is agreed to in writing by Worthington (“Seller”), Seller warrants to Buyer that all products manufactured by Seller or its affiliates shall be in accordance with Worthington standard specifications and shall be free from defects in design (to the extent designed by Worthington or its affiliates) and in material and workmanship for a period of one (1) year after date of shipment; provided that the length of certain warranties for products set forth below shall be as listed, all from date of shipment:

Cryogenic Product Vacuum Warranty Material Warranty Workmanship Warranty Made
Liquid Cylinders 5 Years 1 Year from shipment 1 Year from shipment Westerville
Micro Bulk Cylinders 5 Years 1 Year from shipment 1 Year from shipment Theodore
Bulk Tanks – General 5 Years 2 Years from shipment 2 Years from shipment Turkey
Engineered bulk tanks 2 Years 2 Years from shipment 2 Years from shipment Turkey
Trailers - New 2 Years 1 Year from shipment 1 Year from shipment Theodore
Trailers Repair/Rehabs N/A 30 days from shipment 30 days from shipment Theodore
Marine Tanks 1 Year 1 Year from shipment 1 Year from shipment Turkey
LS/CX Aluminum 3 Years 2 Years from shipment 2 Year from shipment Theodore
LD/HC/XT Aluminum 5 Years 2 Years from shipment 2 Year from shipment Theodore
K Series 5 Years 2 Years from shipment 2 Years from shipment Theodore
LABS Products 5 Years 2 Years from shipment 2 Years from shipment Theodore
Controllers/Displays N/A 2 Year from shipment 2 Year from shipment Theodore
Products Not Listed Here 1 Year 1 Year from shipment 1 Year from shipment Any location

Parts, components, and accessories manufactured by others but supplied by Seller or its affiliates are not covered by this warranty, but the equipment manufacturers’ warranties shall apply, and Seller shall assign such warranties to the extent it is permitted.

The above warranty does not cover any designs, products, services or material furnished by a person other than Seller or its affiliates, and does not apply to any damage or defect caused by: normal wear and tear; lack of proper maintenance; improper installation or repair by a party other than Seller or its affiliates; alterations or modifications not approved by Seller in writing (installation of normal maintenance parts does not constitute modification); mis-use, abuse, excessive external forces, negligence or accident; or use or operation contrary to law or Worthington instructions or specifications, or outside normal operating conditions.

The above warranty does not cover any designs, products, services or material by Purchaser or by third parties and does not apply to any installation by Buyer or a third party.  Buyer hereby indemnifies Seller and its affiliates for any loss, cost, or expense to which Seller and its affiliates may be exposed as a result of any such activities or negligence by Buyer, or such third parties. Any damage arising out of the Buyer’s or any third party’s fault or negligence shall not be satisfied by the Seller or its affiliates under any circumstances.

In the event of any failure to conform with the applicable warranties during the warranty period, Buyer shall provide Seller with prompt written notice identifying the problem, and in no event shall such notice be given more than ten (10) days after discovery of the problem. Seller’s sole obligation, and Buyer’s sole remedy, is for Seller to correct such defect by, at Seller’s option, either:  (a) repair or replacement of the defective product or parts thereof; or (b) refund the purchase price of the non-conforming product or parts.

Repairs or replacements made pursuant to the warranty shall be warranted for the time remaining in the original warranty, or 30 (thirty) days, whichever is longer.

For warranty repairs or replacements, Seller will, at its discretion, make arrangements to transport the defective product or defective part to and from Seller’s facility or Seller will go to Buyer’s site, at Seller’s sole option; provided however that Seller shall not be responsible for providing working access to the defect, including disassembly or reassembly, or for transportation costs to and from Seller’s repair facility, all of which shall be at Buyer’s risk and expense.

The above remedies and warranties are in lieu of and exclude all other remedies and warranties, express or implied, including merchantability and fitness for a particular purpose or those arising from course of dealing or usage of trade, all of which are hereby expressly disclaimed by Seller and its affiliates.  The liabilities of Seller and its affiliates hereunder are limited solely and exclusively to repair or replacement as provided above and exclude all special, consequential, incidental, or other damages of any kind whatsoever, whether any claim is based on periods of contract, negligence, or tort.  Seller’s and its affiliates’ liability does not cover shipping charges, labor, installation, loss of product, or any other losses or expenses incurred in the operation or installation of any repaired or replaced materials and products.

If it is ultimately determined that the product was not defective or covered by warranty, then Buyer agrees to pay Seller for all costs which it incurred in connection with such matter.

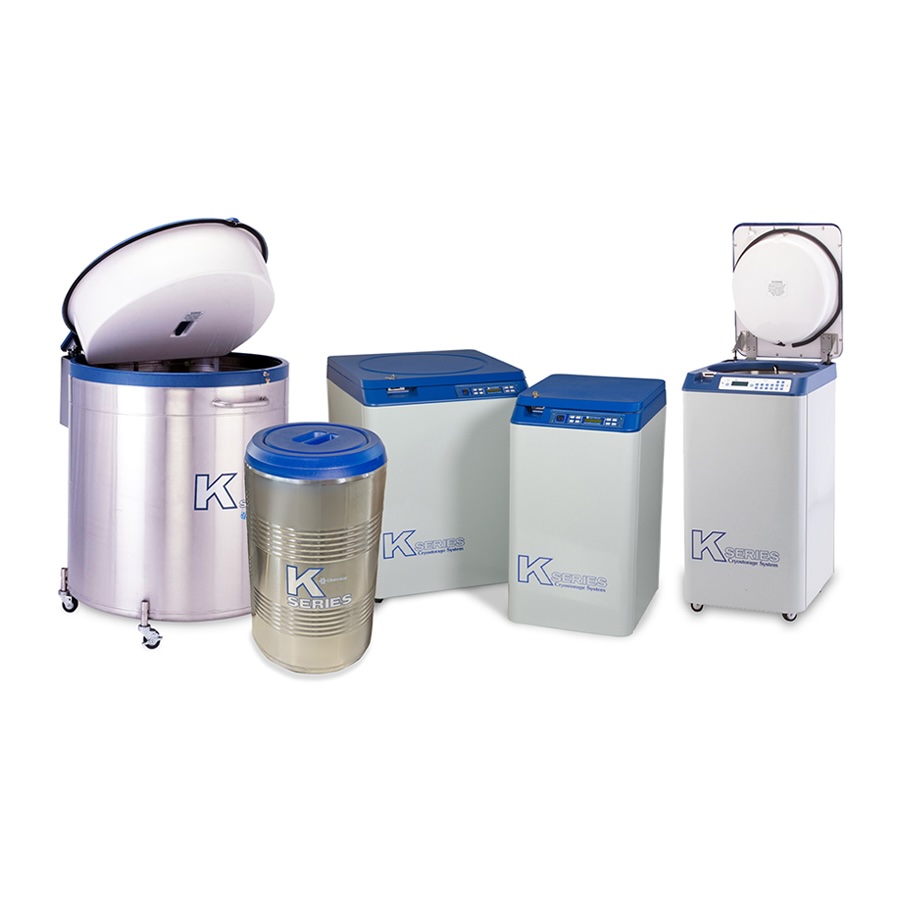

IC Biomedical K-Series Cryostorage Systems



Reliable liquid and vapor phase liquid nitrogen storage.



K-Series Cryostorage Systems provide secure, efficient storage for biological and research samples in either liquid or vapor phase liquid nitrogen environments. Equipped with advanced electronic controllers, these systems continuously monitor liquid level and temperature while delivering comprehensive alarm protection to safeguard valuable samples.



With storage capacities ranging from approximately 3,000 to over 38,000 vials, K-Series freezers support a wide range of cryogenic applications, including IVF clinics, biobanking, pharmaceutical research, and agricultural storage. Intuitive touch controls, robust construction, and caster-mounted mobility ensure ease of use in demanding laboratory environments.



Main Attributes

  • Liquid nitrogen storage in liquid or vapor phase
  • Electronic monitoring of temperature and LN2 level
  • Comprehensive alarm system for enhanced safety
  • Stainless steel vacuum vessel for superior insulation
  • Modular, expandable design
  • Durable powder-coated cabinet
  • Caster-mounted for easy repositioning
  • Superior vacuum performance for reduced LN2 consumption
  • Scalable Storage for Growing Facilities

The modular design allows facilities to expand storage capacity by adding additional K-Series modules, minimizing downtime and avoiding full system replacement as research needs grow.



Trusted Sample Protection

  • Exceptional insulation maintains stable cryogenic temperatures
  • Continuous monitoring ensures real-time system awareness
  • Designed to protect samples during access and retrieval

K-Series Cryostorage Systems are proudly made in the USA!
Click
here for more made in America products!




Item#:
ASLN2LDDEWARS

SKU Number Description Capacity Holds Qty Price Quantity Add to Cart
3KSBL 3K Stainless Steel System 48 L of LN2 3,024 Vials 1/ea
4277.00
Each
10K 10K System 165 L of LN2 10,400 Vials 1/ea
15477.00
Each
10K-CS100 10K System w/ CS100 Control 165 L of LN2 10,400 Vials 1/ea
19809.00
Each
10K-CS200 10K System w/ CS200 Control 165 L of LN2 10,400 Vials 1/ea
20859.00
Each
24K 24K System 365 L of LN2 24,050 Vials 1/ea
16276.00
Each
24K-CS100 24K System w/ CS100 Control 365 L of LN2 24,050 Vials 1/ea
23608.00
Each
24K-CS200 24K System w/ CS200 Control 365 L of LN2 24,050 Vials 1/ea
24658.00
Each
38K 38K System 590 L of LN2 38,350 Vials 1/ea
31462.00
Each
38K-CS200 38K System w/ CS200 Control 590 L of LN2 38,350 Vials 1/ea
33829.00
Each
38K-CS200-GBP 38K System w/ CS200 Control w/ Gas Bypass 590 L of LN2 38,350 Vials 1/ea
34879.00
Each
R018-8C00 Roller Base N/A For 3K Model 1/ea
397.10
Each
R03K-9C69 Spare Lid N/A For 3K Model 1/ea
928.00
Each
R27K-8C05 Step Platform N/A For 38K Models 1/ea
4016.10
Each
R10K-9C44 Stainless Steel Rack 13 Shelves 25 Place Bxs 1/ea
218.90
Each
R23K-8C35 Stainless Steel Rack 13 Shelves 100 Place Bxs 1/ea
232.10
Each
9900-0001 Aluminum Rack 13 Shelves 25 Place Bxs 1/ea
199.10
Each
9900-0000 Aluminum Rack 13 Shelves 100 Place Bxs 1/ea
240.90
Each
N-374180 Polycarbonate Box 25 Place Cryo Vials 36/pk
481.80
Each
R24K-9C45 Polycarbonate Box 81 Place Cryo Vials 24/pk
562.10
Each
R24K-9C44 Polycarbonate Box 100 Place Cryo Vials 24/pk
436.70
Each
