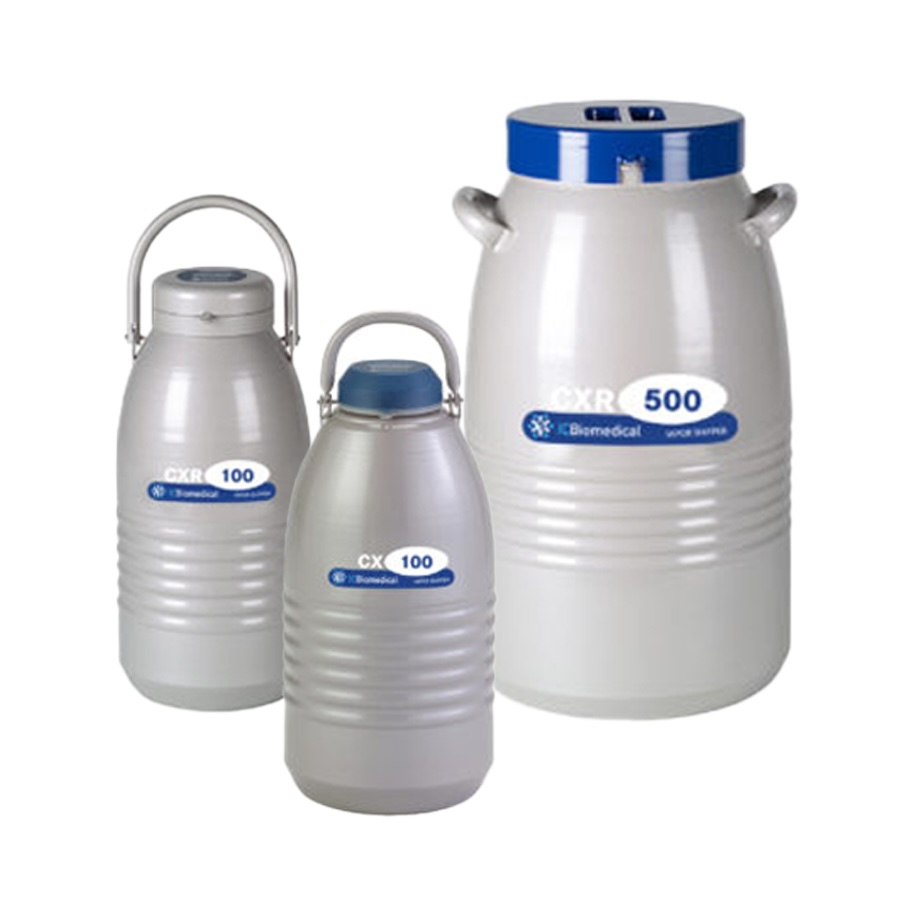

IC Biomedical CX-Series Cryogenic Shippers

Easy shipment of your temperature-sensitive samples.

IC Biomedical’s vapor shippers, or dry shippers, enable easier transport, free from the challenges of liquid nitrogen. These shippers are safe and compliant, ideal for facilities and clinics that work with IVF, cell therapy, biomedical storage, and other programs that require sub-cryogenic shipping.

Vapor shippers utilize advanced dry shipper technology to eliminate spillage risks while maintaining cryogenic temperatures for biological samples. The CX-Series utilizes a Hydrophobic Adsorbent material that’s easier to clean if the vessel gets contaminated. All shippers comply with IATA regulations for open cryogenic receptacles.

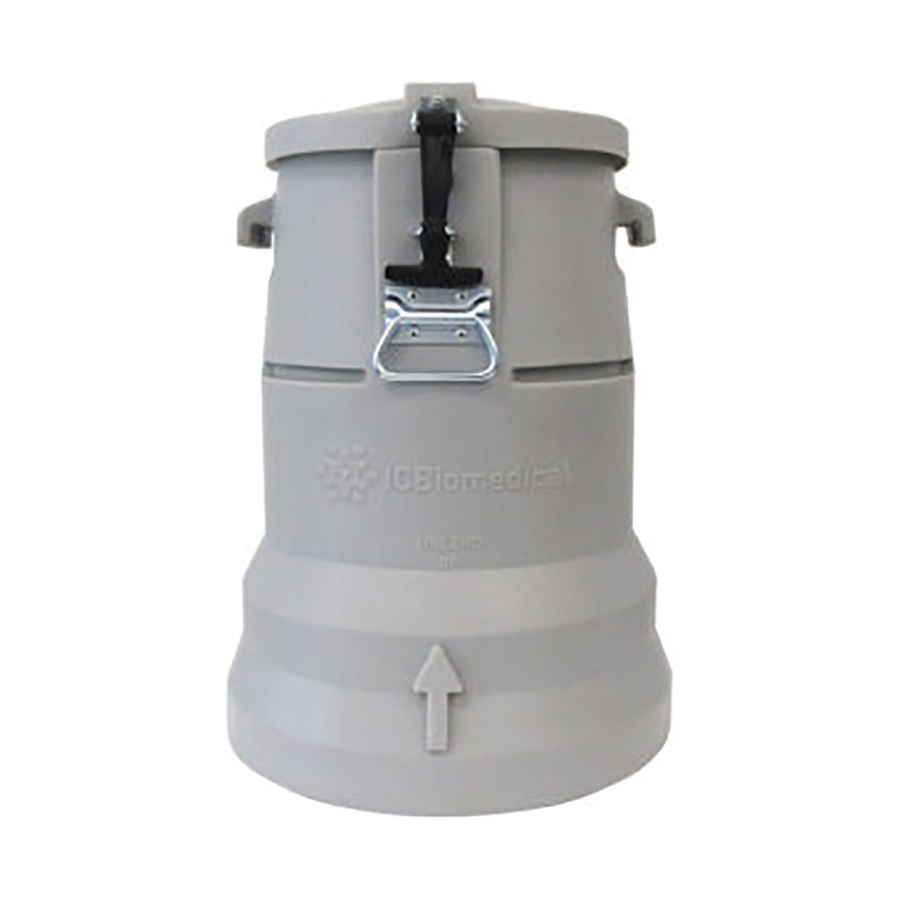

IC Biomedical Shipping Cases are available for the safe transport of vapor shippers. These cases are made to protect shippers from physical damage. The CX100-4LSC option is designed for IC Biomedical shippers CX100 and CXR100 and is also compatible with most other similar-sized shippers. CXR500-8C00 is designed to protect the CXR500 model.

Main Attributes

• Complies with IATA regulations
• Rugged construction and superior vacuum performance with super insulation

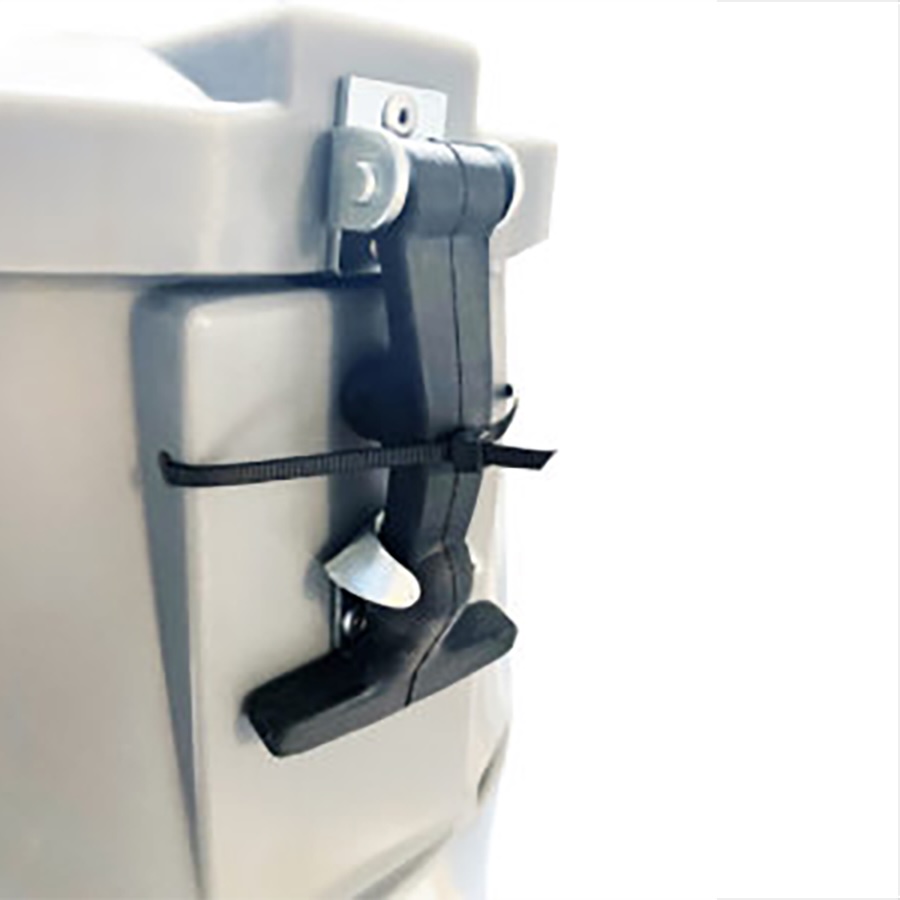

• Lockable lid
• Optional temperature monitoring kit
• Various upright shipping case options

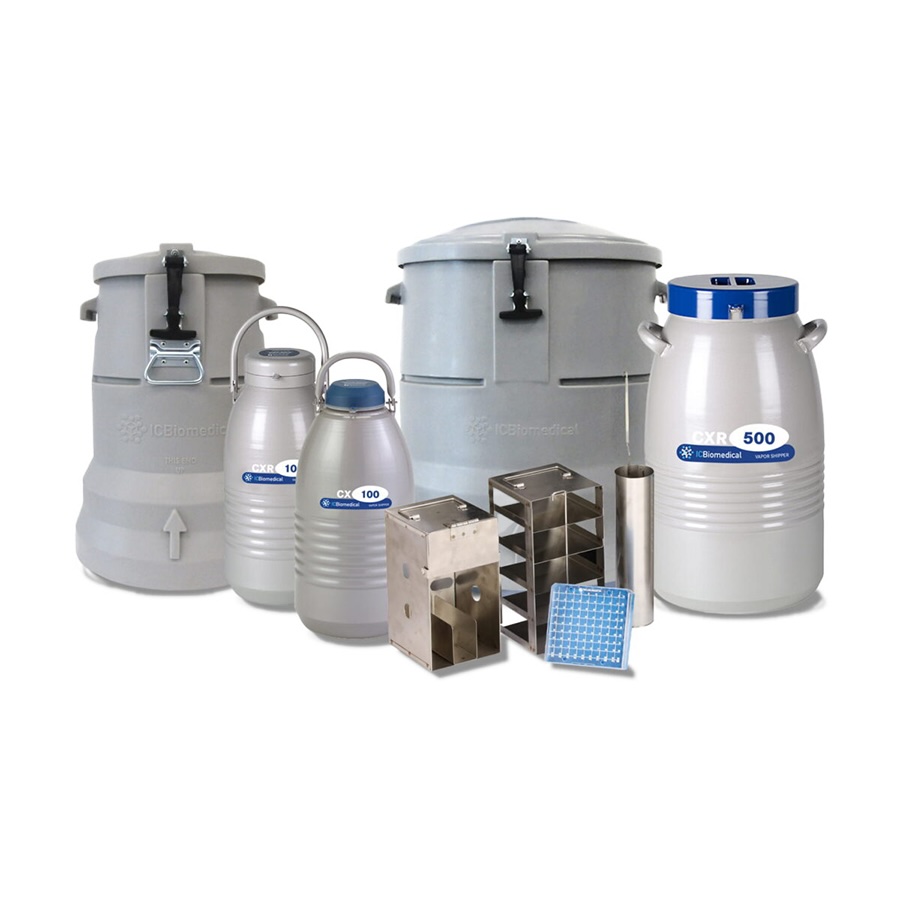

• Optional, compatible racks, boxes, and accessories
• Warranty: 2 years on vacuum, 1 year on electronic

Specifications


Model (Item #)	CX100 (CX100B-11M)	CXR100 (CXR100-11M)	CXR500 (CXR500-0)
Description	Cryopack Shipper w/ 11 In. Canister	Cryopack Shipper w/ Replaceable Adsorbent and 11 In. Canister	Cryopack Shipper w/ Replaceable Adsorbent (Rack not included)
LN2 Capacity	3.7 L	3.7 L	6.4 L
Static Hold Time	18 Days	16 Days	11 Days
Evaporation Rate	0.2 L / Day	0.23 L / Day	0.64 L / Day
Necktube Dimensions	2.78 In. | 70.6 mm	3.58 In. | 90.9 mm	8.5 In. | 216 mm
Overall Dimensions	8.75 In. | 222.3 mm	9.2 In. | 233.7 mm	15.5 In. | 393.7 mm
Height	18.5 In. | 472.4 mm	19.4 In. | 492.7 mm	26.9 In. | 683.3 mm
Empty Weight	10 lb | 4.53 kg	11.7 lb | 5.3 kg	30 lb | 13.6 kg
Full Weight	16.5 lb | 7.5 kg	18.2 lb | 8.3 kg	41.5 lb | 18.8 kg
5/Cane Capacity	85 x 1.2 & 2.0 mL Vials	85 x 1.2 & 2.0 mL Vials	500 x 1.2 & 2.0 mL Vials
6/Cane Capacity	102 x 1.2 & 2.0 mL Vials	102 x 1.2 & 2.0 mL Vials	500 x 1.2 & 2.0 mL Vials
10/Cane Capacity	280 x 0.5 cc Straws	280 x 0.5 cc Straws	1,240 x 0.5 cc Straws
28/Cane Capacity	784 x 0.25 cc Straws	784 x 0.25 cc Straws	1,736 x 0.25 cc Straws
0.25 Straw Capacity in Goblets	1,640 x 0.25 cc Straws	1,640 x 0.25 cc Straws	7,160 x 0.25 cc Straws
0.5 Straw Capacity in Goblets	800 x 0.5 cc Straws	800 x 0.5 cc Straws	3,200 x 0.5 cc Straws
Number of Canisters	1	1	N/A



Item #	Accessory	Compatibility
3701-9277	Shipping Case	For use with CX100B-11M
CXR100-8C00	Shipping Case	For use with CXR100-11M
CX100-4LSC	Shipping Case - Mushroom Design	For use with CX100B-11M and CXR500-0
CXR500-8C00	Shipping Case	For use with CXR500-0
R005-9C21	Spare Necktube Core	For use with CX100B-11M
CXR100-9C01	Spare Necktube Core	For use with CXR100-11M
CP70-9C18	Spare Necktube Core	For use with CXR500-0
R005-9C24	Spare 11 In. Canister	For use with CX100B-11M
CXR100-9C24	Spare 11 In. Canister	For use with CXR100-11M
CXR100-9C30	Replaceable Adsorbent Kit	For use with CXR100-11M and CXR500-0
CP70-9C44	Blood Bag Rack	For use with CXR500-0
RS30-9C44	5-Shelf Rack for 100-Cell PC Boxes	For use with CXR500-0
R24K-9C44	100-Cell PC Boxes	For use with RS30-9C44


CX-Series Cryogenic Shippers are proudly made in the USA!
