Jeio Tech Standard Forced Convection Ovens

Item #: ASJEIOSTDFCD

Specifications

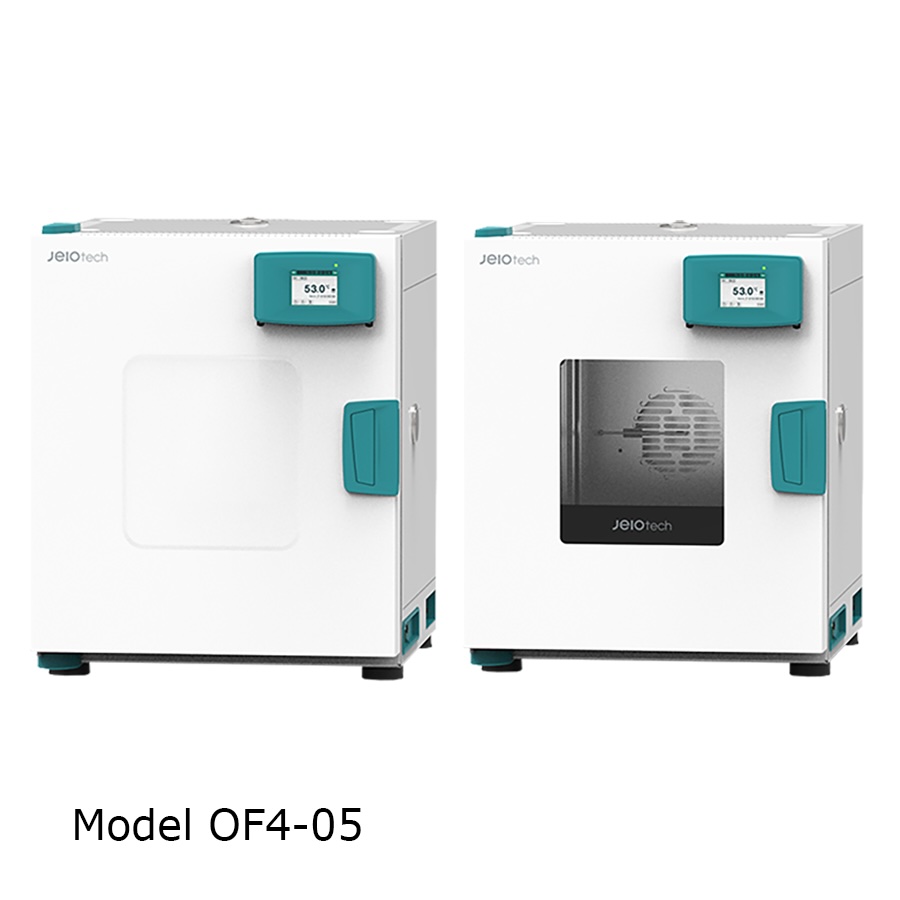

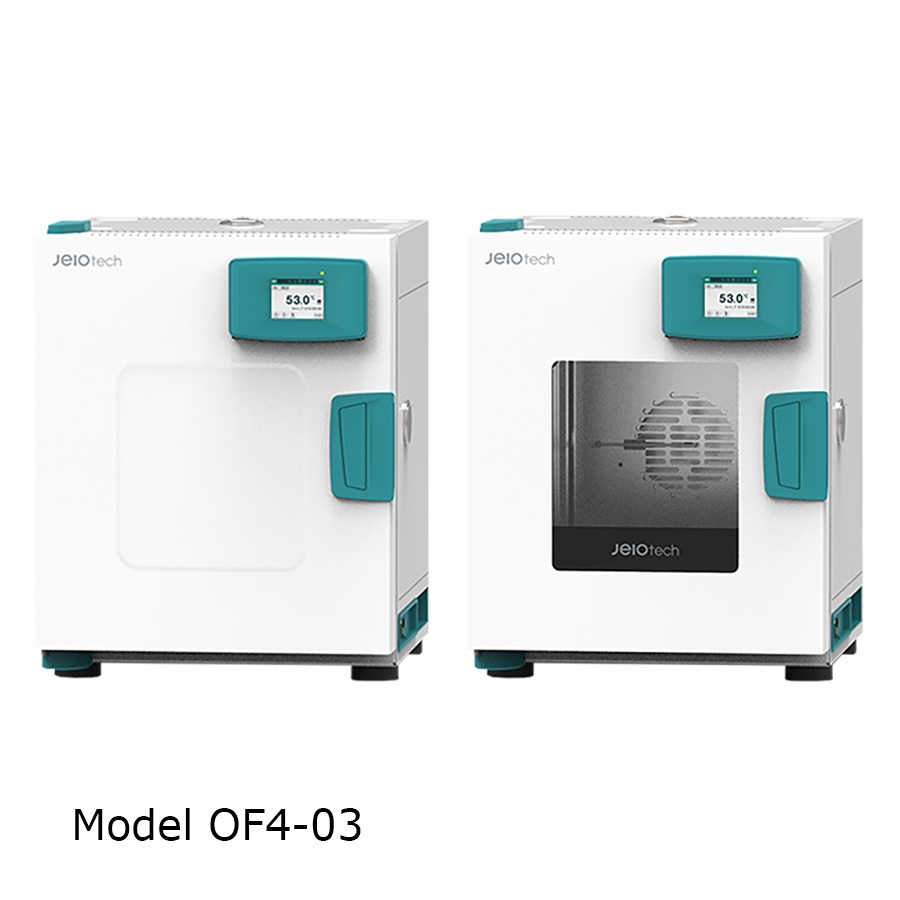

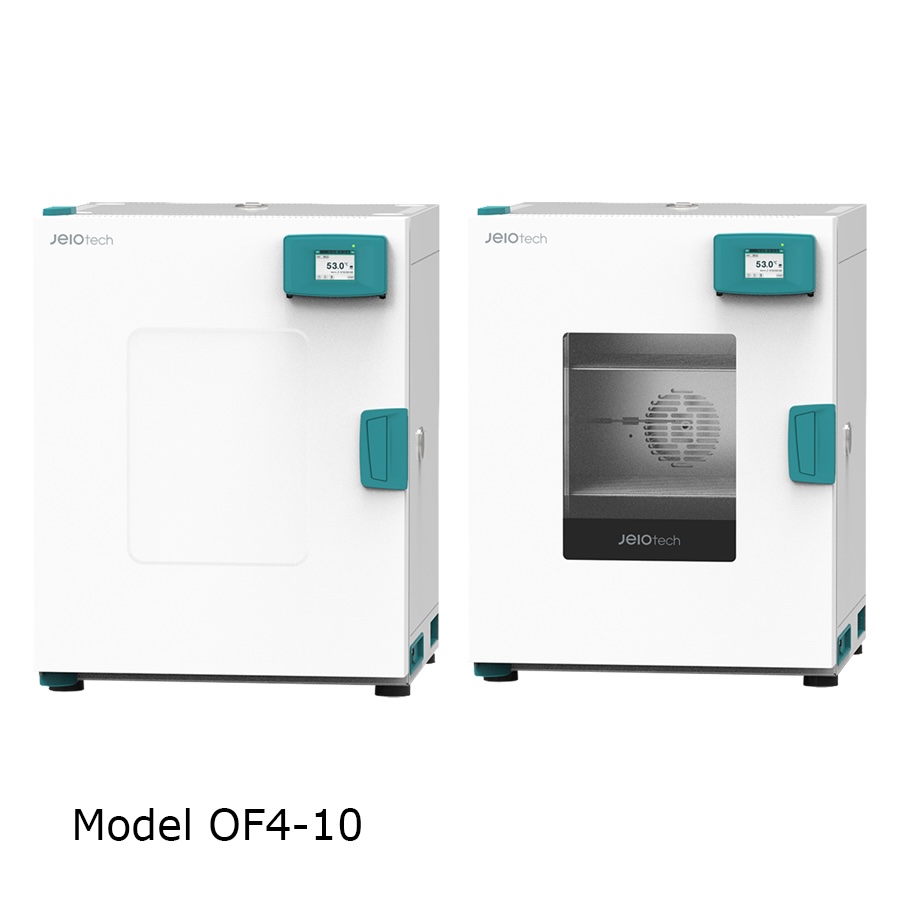

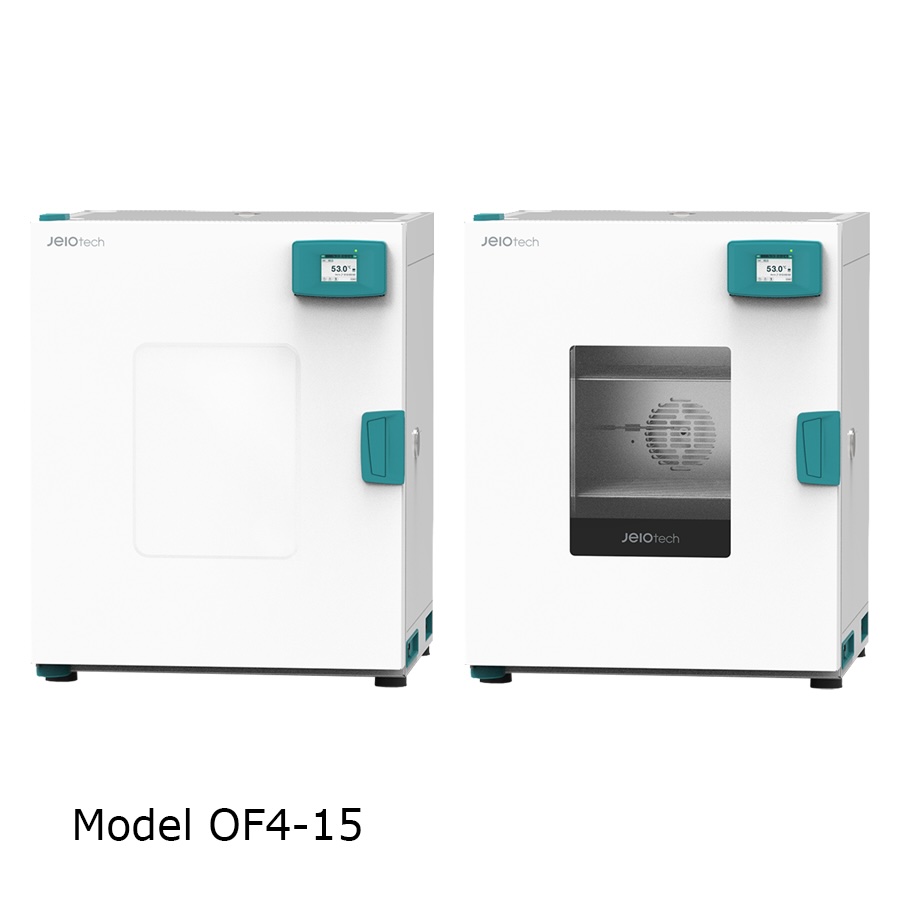

Model OF4-03 Std. Forced OF4-05 Std. Forced OF4-10 Std. Forced OF4-15 Std. Forced
Item # Solid Door (AAH14116U)
Window Door (AAH14216U)		 Solid Door (AAH14126U)
Window Door (AAH14226U)		 Solid Door (AAH14136U)
Window Door (AAH14236U)		 Solid Door (AAH14146U)
Window Door (AAH14246U)
Chamber Vol. 26 L | 0.92 Cu. Ft. 61 L | 2.15 Cu. Ft. 112 L | 3.96 Cu. Ft. 147 L | 5.19 Cu. Ft.
Temp. Range Amb. + 10~250ºC | Amb. + 18 ~ 482ºF
Temp. Fluctuation at 100ºC ±0.3ºC | ±0.54ºF ±0.3ºC | ±0.54ºF ±0.3ºC | ±0.54ºF ±0.3ºC | ±0.54ºF
Temp. Variation at 100ºC ±1.4ºC | ±2.52ºF ±1.9ºC | ±3.42ºF ±1.7ºC | ±3.06ºF ±1.5ºC | ±2.70ºF
Heating Time to 100ºC 8 Minutes 10 Minutes 14 Minutes 15 Minutes
Temp. Recovery Time at 100ºC 4 Minutes
Control Panel 3.5 inch TFT Color LCD
Communication Interface USB, RS-232 (Option)
Recent Event Record 12 ea
Interior Dimensions
(W x D x H)		 11.80 x 8.27 x 15.75 In.
300 x 210 x 400 mm		 14.97 x 13.0 0 x 18.90 In.
380 x 330 x 480 mm		 19.09 x 13.78 x 25.79 In.
485 x 350 x 655 mm		 21.65 x 14.80 x 27.95 In.
550 x 376 x 710 mm
Exterior Dimensions
(W x D x H)		 18.82 x 20.75 x 23.78 In.
478 x 527 x 604 mm		 21.97 x 25.51 x 26.93 In.
558 x 648 x 684 mm		 26.1 x 26.65 x 33.82 In.
663 x 677 x 859 mm		 28.66 x 27.72 x 35.98 In.
728 x 704 x 914 mm
Net Weight 72.8 lb | 33 kg 116.8 lb | 53 kg 138.9 lb | 63 kg 160.9 lb | 73
Shelves 2 Standard | 4 Max. 2 Standard | 5 Max. 2 Standard | 8 Max. 2 Standard | 9 Max.
Max. Load Per Shelf 66.1 lb | 30 kg 66.1 lb | 30 kg 66.1 lb | 30 kg 66.1 lb | 30 kg
Air Changes/hour at 100ºC 123 22 18 11
Electrical Requirements 12.3 (120V, 60Hz, A)




Jeio Tech Standard Forced Convection Ovens



Jeio Tech Standard Forced Convection Ovens offer reliable temperature performance and essential functionality at an affordable price. Designed with vertical airflow for uniform heat distribution, these ovens are ideal for routine laboratory heating and drying applications.



Simple, Intuitive Operation

  • 3.5-inch touch controller for easy, intuitive operation
  • Wait On/Wait Off timer for efficient scheduling and automation

Reliable Temperature Performance

  • Temperature range up to 250ºC
  • Three-point calibration ensures accurate temperature control across the entire range
  • Adjustable upper and lower temperature limits with alarm alerts for deviations
  • Uniform temperature distribution through optimized airflow
  • ±1.9ºC or better at 100ºC

Monitoring and Connectivity (Optional)

  • Optional RS-232 / USB communication for PC control and data management
  • Optional LC Connected mobile monitoring system for remote control
  • Optional BMS communication port for facility-wide monitoring

Built-In Safety Features

  • Effective fume release via upper vent (model dependent)
  • Exterior surface remains safe to touch during operation (≤70ºC at 250ºC)
  • Advanced overheating protection system
  • Over-temperature limit function
  • Meets IEC Protection Class II standards

User Convenience and Efficiency

  • Records up to 12 recent events (operation, runtime, errors)
  • Optional stacking kit to maximize workspace efficiency
  • Hands-Free™ door system for safe and easy sample handling
  • Power Configuration: 120V, 60Hz (US plug)

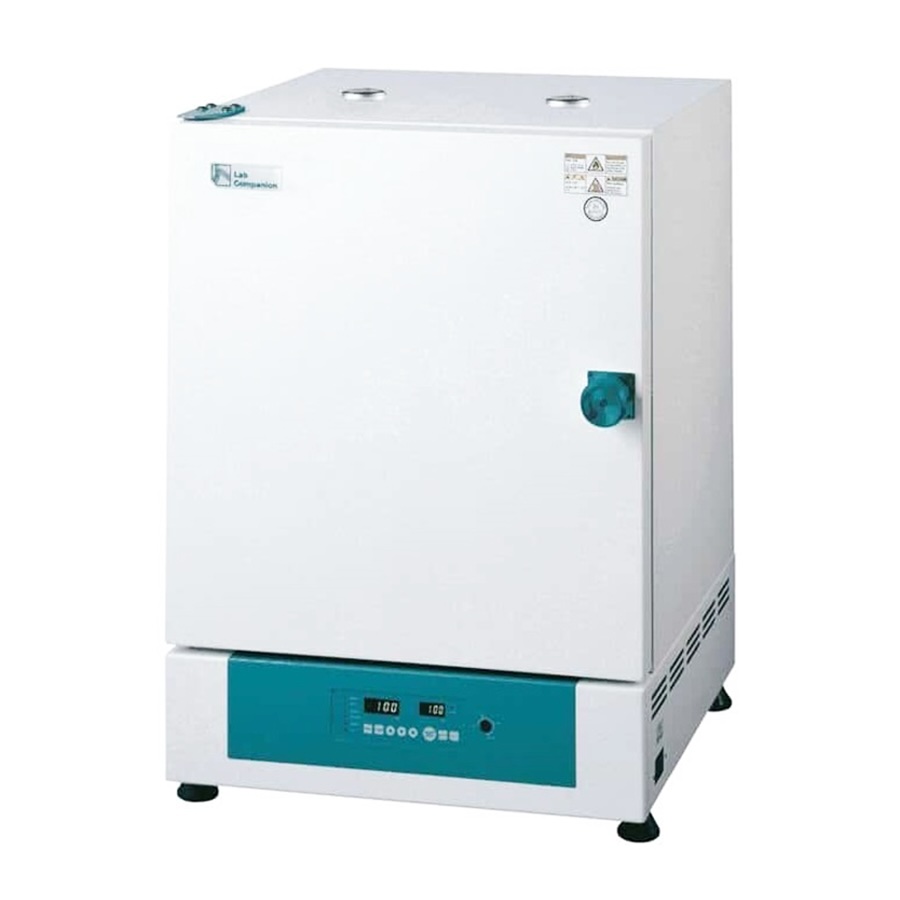

Economy Forced Ovens
Item#:
ASCONVOVEN

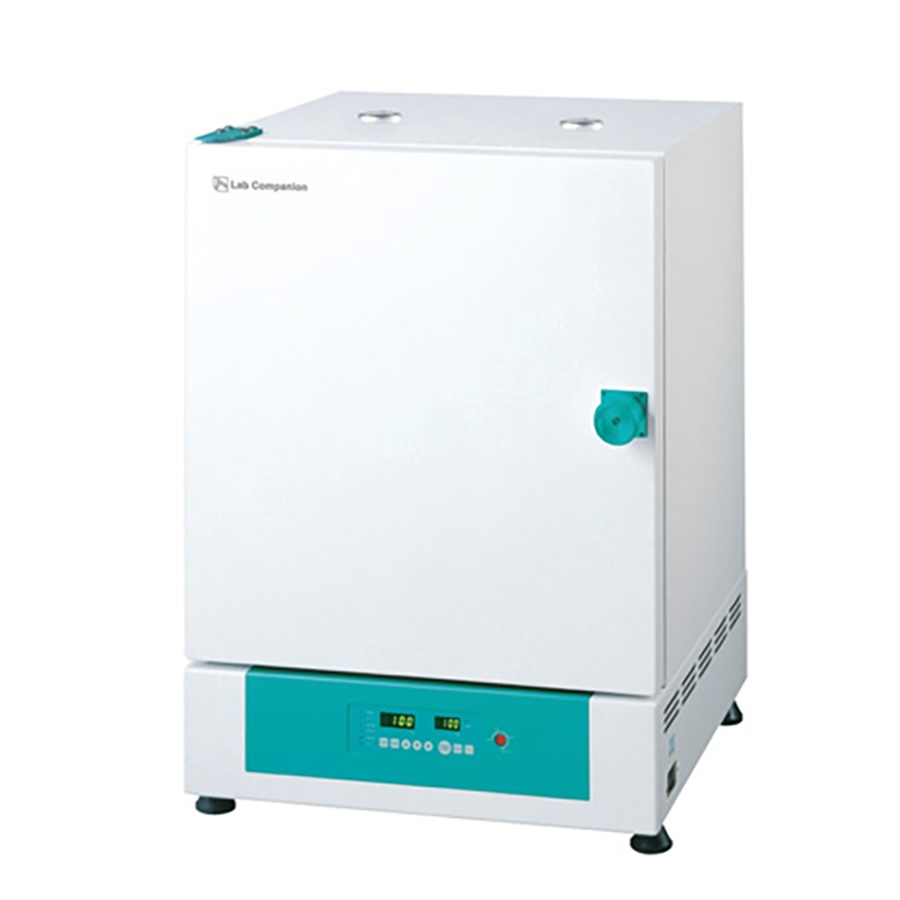

Natural Convection Oven
Item#:
ASNATCONOVEN

Natural Convection Oven
Item#:
ASNATCONOVEN1

SKU Number Type Operating Temp Vol Price Quantity Add to Cart
AAH14116U Std. Forced, Solid Door Amb. 10 to 250C 26 L, 0.92 Cu. Ft.
2535.00
Each

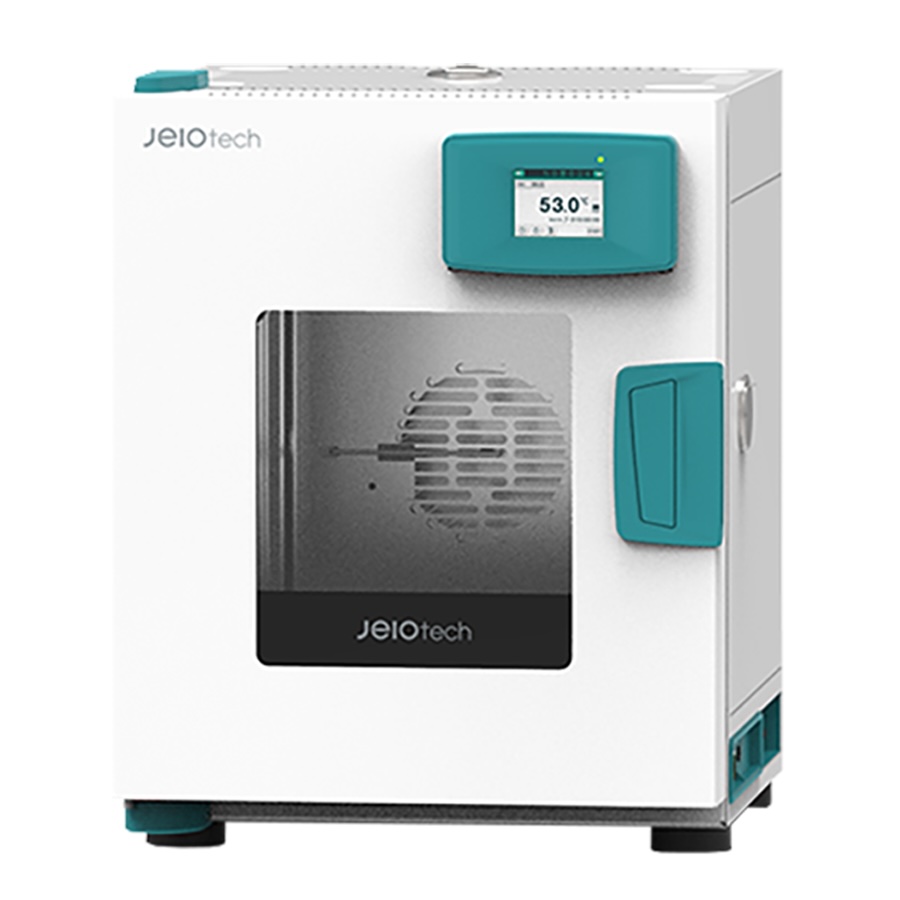

AAH14216U Std. Forced, Window Door Amb. 10 to 250C 26 L, 0.92 Cu. Ft.
2648.00
Each
AAH14126U Std. Forced, Solid Door Amb. 10 to 250C 61 L, 2.15 Cu. Ft.
2616.00
Each
AAH14136U Std. Forced, Solid Door Amb. 10 to 250C 112 L, 3.96 Cu. Ft.
3112.00
Each
AAH14226U Std. Forced, Window Door Amb. 10 to 250C 61 L, 2.15 Cu. Ft.
2728.00
Each
AAH14236U Std. Forced, Window Door Amb. 10 to 250C 112 L, 3.96 Cu. Ft.
3240.00
Each
AAH14146U Std. Forced, Solid Door Amb. 10 to 250C 147 L, 5.19 Cu. Ft.
3507.00
Each
AAH14246U Std. Forced, Window Door Amb. 10 to 250C 147 L, 5.19 Cu. Ft.
3631.00
Each
