Jeio Tech Economy Natural Convection Ovens

Item #: ASNATCONOVEN

Specifications

Model ON-01E ON-11E ON-21E
Item # AAH15016U AAH15026U AAH15036U
Chamber Vol. 52 L | 1.8 Cu. Ft. 100 L | 3.5 Cu. Ft. 150 L | 5.3 Cu Ft.
Temp. Range Amb. +15 to 220ºC | Amb. +27 to 428ºF
Temp. Fluctuation at 100ºC ±0.3ºC | ±0.72ºF ±0.4ºC | ±0.72ºF ±0.5ºC | ±0.9ºF
Temp. Variation at 100ºC ±6.5ºC | ±11.7ºF ±4.1ºC | ±7.38ºF ±7.3ºC | ±13.14ºF
Heating Time to 100ºC 12 Minutes 13 Minutes 10 Minutes
Temp. Recovery Time at 100ºC 4 Minute 5 Minute 3 Minute
Interior Dimensions
(W x D x H)		 14.8 x 14.6 x 14.6 In.
375 x 370 x 370 mm		 18 x 17 x 20 In.
455 x 430 x 510 mm		 23 x 18.1 x 21.9 In.
585 x 460 x 555 mm
Exterior Dimensions
(W x D x H)		 20.9 x 21.1 x 29 In.
530 x 535 x 737 In.		 24 x 23.4 x 34.5 In.
610 x 595 x 877 mm		 29.1 x 24.6 x 36.3 In.
740 x 625 x 922 mm
Net Weight 75 lb | 34 kg 101.4 lb | 46 kg 130 lb | 59 kg
Shelves 2 Standard | 5 Max. 2 Standard | 7 Max. 2 Standard | 7 Max.
Max. Load Per Shelf 66.1 lb | 30 kg 66.1 lb | 30 kg 66.1 lb | 30 kg
Electrical Requirements 6.7 (120V, 60Hz, A) 8.3 (120V, 60Hz, A) 10 (120V, 60Hz, A)
Warranty 2-Year

*The lowest temperature that can be controlled depends on changes in room temperature and sample temperature. Therefore, please contact the distributor of our products before purchasing for technical consultation.

*Technical data (according to DIN 12880, before 2013)



Warranty

2-Year Warranty




Jeio Tech Economy Natural Convection Ovens



Reliable, cost-effective natural convection ovens for everyday lab use.



Jeio Tech Economy Natural Convection Ovens are a dependable and energy-efficient solution designed for laboratories, research facilities, and industrial environments. Built to deliver consistent performance, this economical oven is ideal for users seeking accuracy, durability, and safety without unnecessary complexity.



Main Attributes

  • Reliable Performance and consistent and stable operation
  • Cost-effective model that reduces upfront investment and long-term operating costs
  • Advanced insulation and enclosed construction minimize energy loss and improve energy efficiency
  • Corrosion-resistant stainless steel chamber and shelves ensure easy cleaning and long product life

Structural and Functional Features

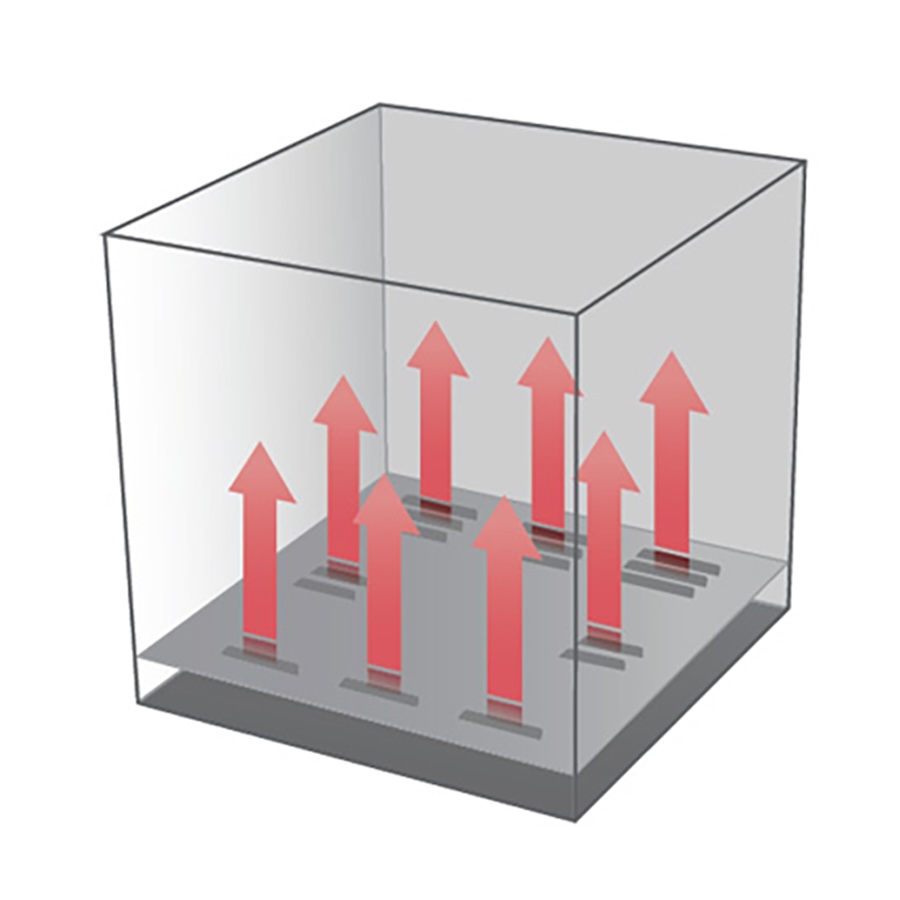

  • Natural convection heating for uniform temperature distribution
  • Dual top vent holes for effective gas discharge
  • Compact, enclosed design to maintain internal temperature stability
  • Operates on 120V, 60Hz power

User-Friendly Operation

  • PID Microprocessor Control: Delivers precise and consistent temperature management
  • Auto-Tuning Function: Optimizes temperature control automatically
  • Calibration Feature: Reduces temperature deviations for accurate results
  • Memory Function: Save and quickly recall up to 3 frequently used temperature settings
  • Timer Function: Program operation up to 99 hours and 59 minutes
  • Power Recovery: Automatically resumes operation after unexpected power interruptions

Advanced Safety Features

  • Overheating Protection System: Prevents damage from excessive temperatures
  • Over-Temperature Limit Control: Adds an extra layer of thermal safety
  • Cool External Surface: Designed to remain safe to touch, even at high operating temperatures
  • Controller Lock Function: Prevents accidental changes or misuse
  • Self-Diagnostics System: Detects and alerts users to temperature sensor abnormalities
  • Door Alarm System: Notifies users if the door is left open too long

Ideal Applications

  • Laboratory drying and heating
  • Sample preparation
  • General-purpose thermal processing
  • Industrial and research environments requiring uniform heating
Natural Convection Oven
Item#:
ASNATCONOVEN1

Economy Forced Ovens
Item#:
ASCONVOVEN

Refrigerated Incubator
Item#:
ASREFSKINC2

SKU Number Type Operating Temp Vol Price Quantity Add to Cart
AAH15016U Econ. Natural, Solid Door Amb. 15 to 220C 52 L, 1.8 Cu. Ft.
1987.00
Each
AAH15026U Econ. Natural, Solid Door Amb. 15 to 220C 100 L, 3.5 Cu. Ft.
2282.00
Each
AAH15036U Econ. Natural, Solid Door Amb. 15 to 220C 150 L, 5.3 Cu Ft.
2962.00
Each
EDA8136 Shelf Amb. 15 to 220C N/A
249.35
Each
