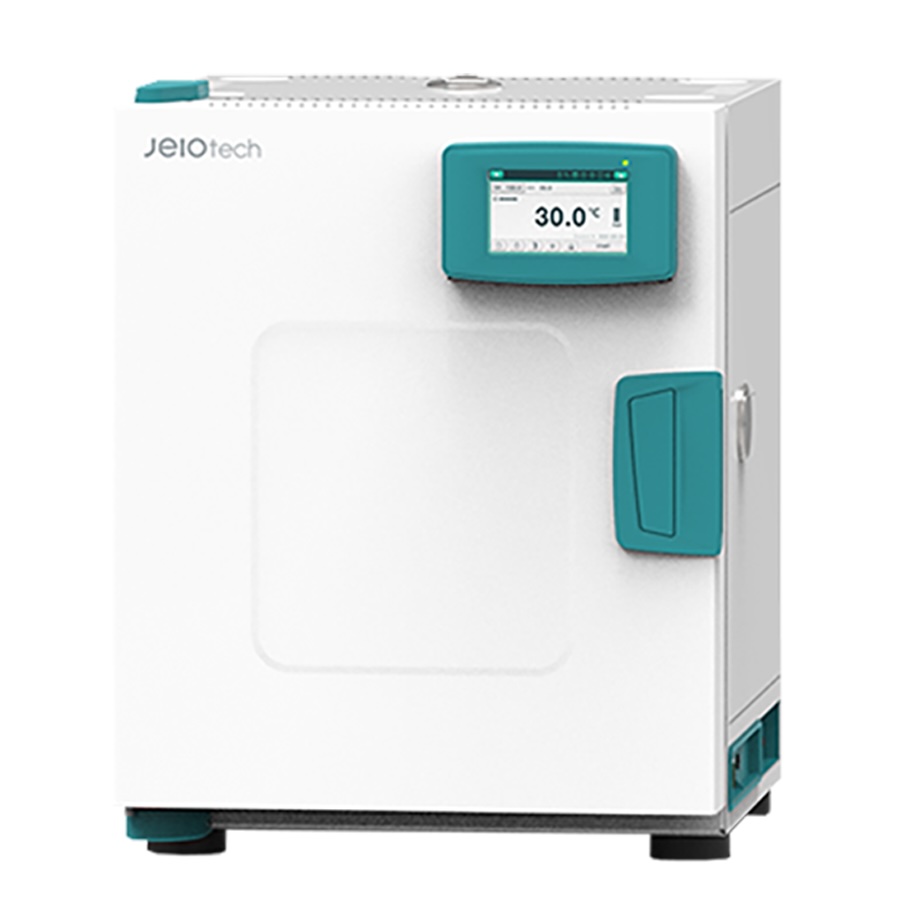

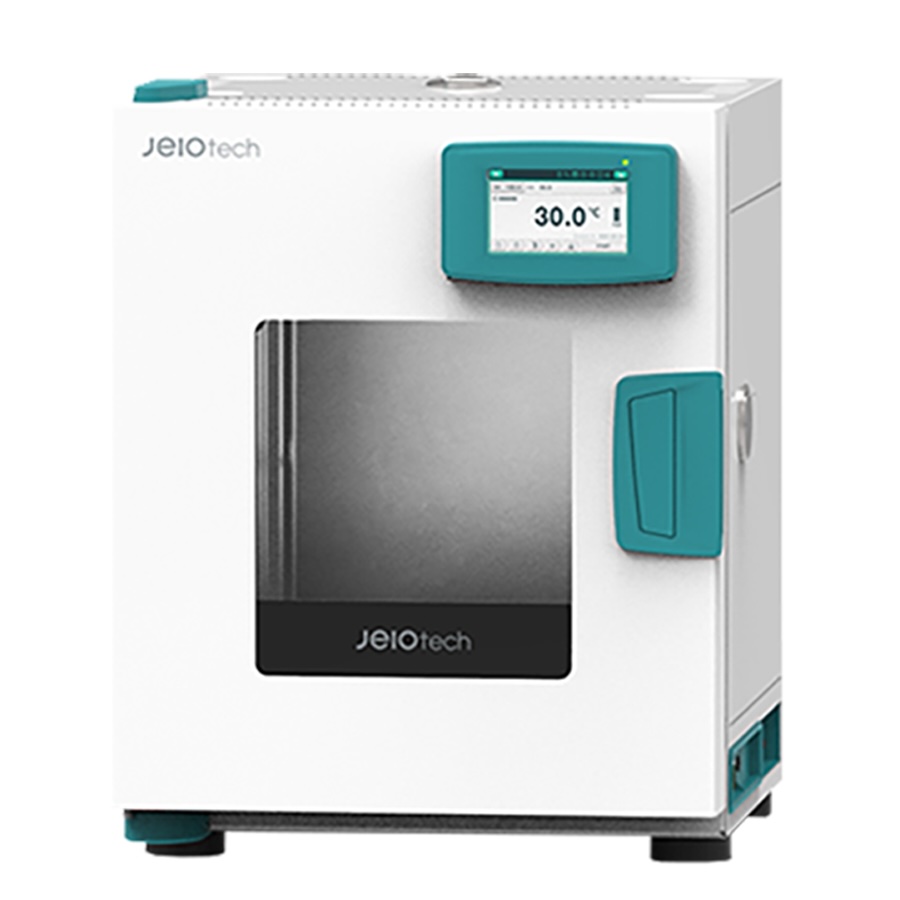

Jeio Tech Advanced Natural Convection Ovens

Jeio Tech Advanced Natural Convection Ovens deliver reliable, uniform heating with advanced control functions designed for laboratory and research applications requiring precise and stable temperature performance. Optimized airflow design, intuitive touch-screen control, and flexible data management make these ovens ideal for routine and regulated laboratory environments.

Uniform and Stable Temperature Distribution

These ovens use optimized natural convection airflow to ensure consistent heat transfer throughout the chamber, supporting high reproducibility and reliable experiment results.

• Uniform temperature distribution through airflow optimized for heat transfer (within ±3.6ºC at 100ºC)
• Multi-path airflow design improves temperature stability and reliability of experimental data

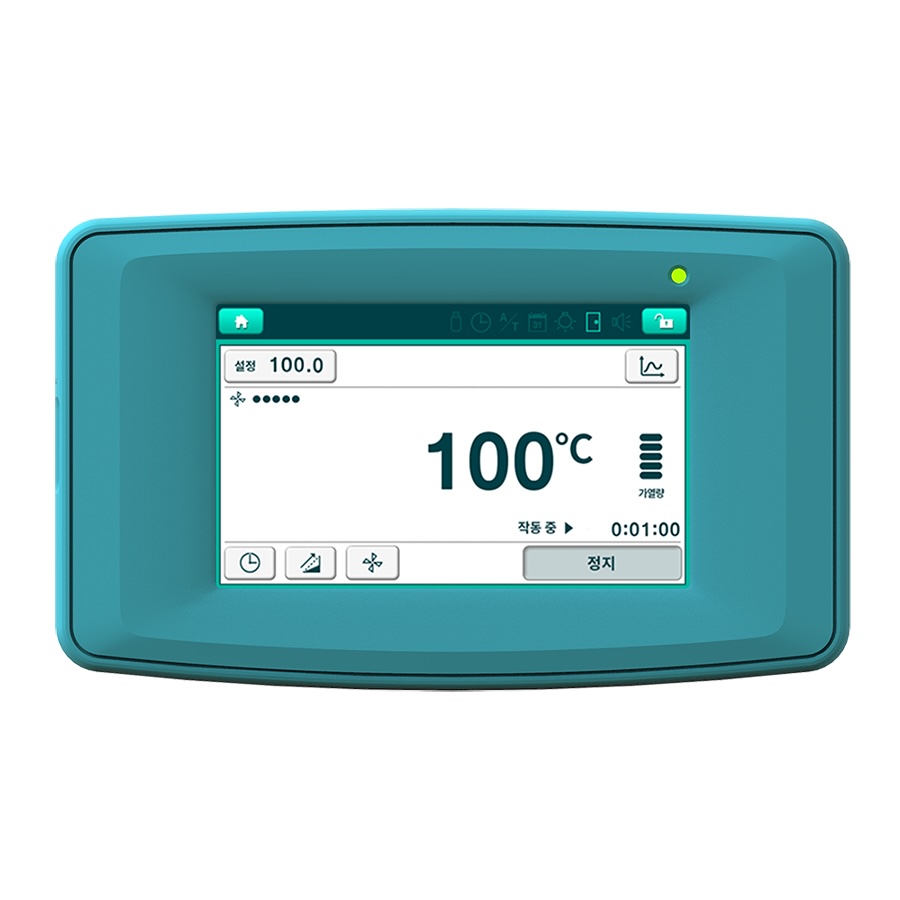

Intuitive Large Touch-Screen Controller

The large, easy-to-use touch controller simplifies operation while providing clear visibility into oven performance and test progress.

• Intuitive interface with a large 5-inch display
• Single-screen view of events and alerts with real-time graphs
• Automatic suggestion of three frequently used temperatures
• Wait On/Wait Off timer function for efficient test scheduling

Compact, User-Friendly Structural Design

Thoughtful structural features allow easy placement and day-to-day usability in laboratory environments.

• Compact design with depth less than 750 mm, enabling stable placement on lab benches
• Uniform and stable temperature control improves experiment repeatability

Real-Time Monitoring and Smart Supervision

Optional monitoring capabilities provide enhanced supervision and faster response to abnormalities.

• Optional BMS (Building Management System) communication port for real-time temperature monitoring
• Optional LC GreenBox mobile monitoring system, enabling monitoring and control anytime, anywhere

Convenient Data Management and Compliance Support

Built-in communication and logging features simplify data handling, reporting, and regulatory compliance.

• RS-232 and USB ports with compatible software for easy PC-based operation and data management
• Automatic data storage with USB export in CSV format
• Records 36 most recent events, including errors and door open/close history
• Optional integration with LC DataKeeper, compliant with 21 CFR Part 11, suitable for GMP audits

Reliable Temperature Control Performance

Advanced control mechanisms ensure accuracy across the full operating range.

• Wide temperature range of up to 250ºC
• High temperature accuracy through 3-point calibration

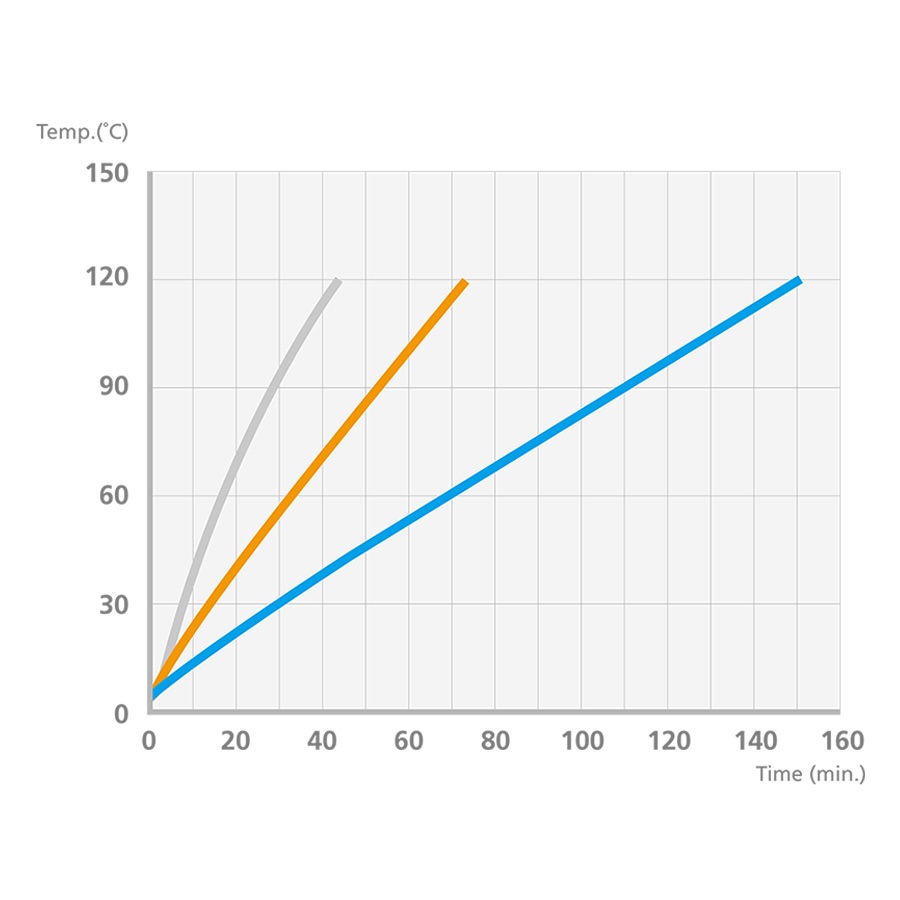

• Ramp Control™ function allows programmable temperature ramping rates (ºC/min) for each experiment
• Uniform temperature distribution within ±3.6ºC at 100ºC
