Jeio Tech Advanced Forced Convection Ovens

Item #: ASJEIOADVFCD

Specifications

Temp. Range Amb. + 10~250ºC | Amb. + 18 ~ 482ºF
Temp. Fluctuation at 100ºC ±0.3ºC | ±0.54ºF
Temp. Recovery Time at 100ºC 4 Minutes
Control Panel 5 In. TFT Color LCD
Communication Interface USB, RS-232, BMS
Recent Event Record 36 ea
Adjustable Fan Speed Three-step wind speed settings
Recommended Temp. Three frequently used temperature settings suggested
Graph Available checking the stored and real-time data as graphs
Data Storage Save the test data in CSV format
Max. Load Per Shelf 66.1 lb | 30 kg
Electrical Requirements 12.3 (120V, 60Hz, A)

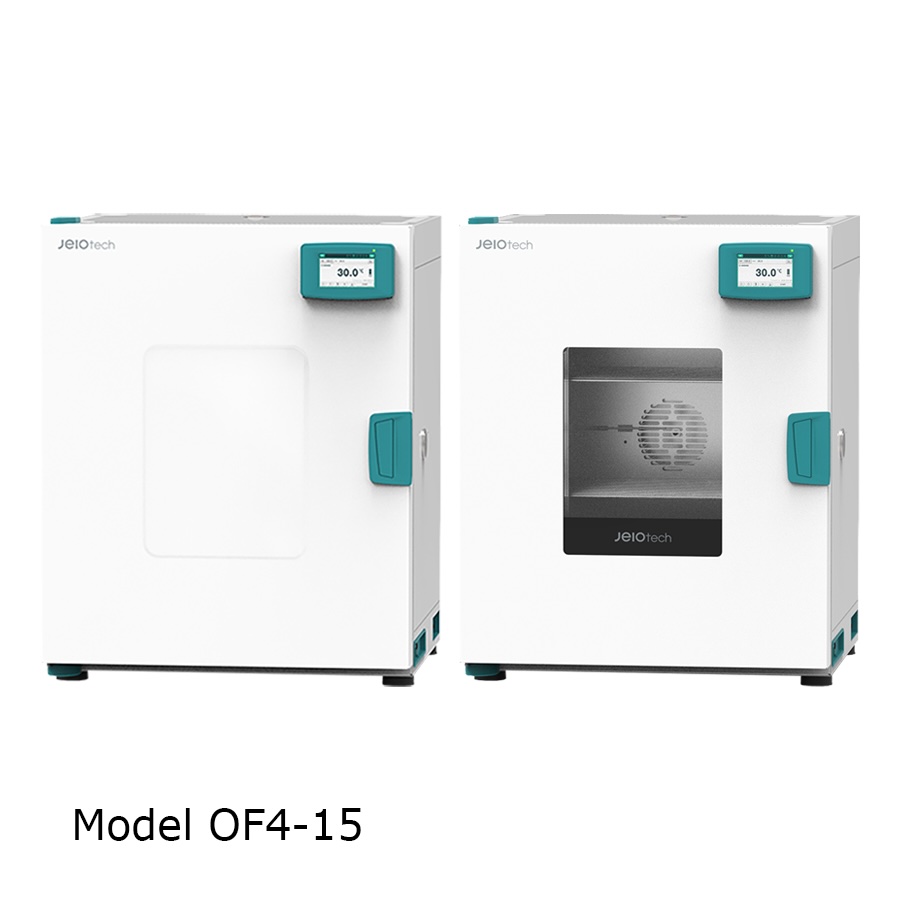

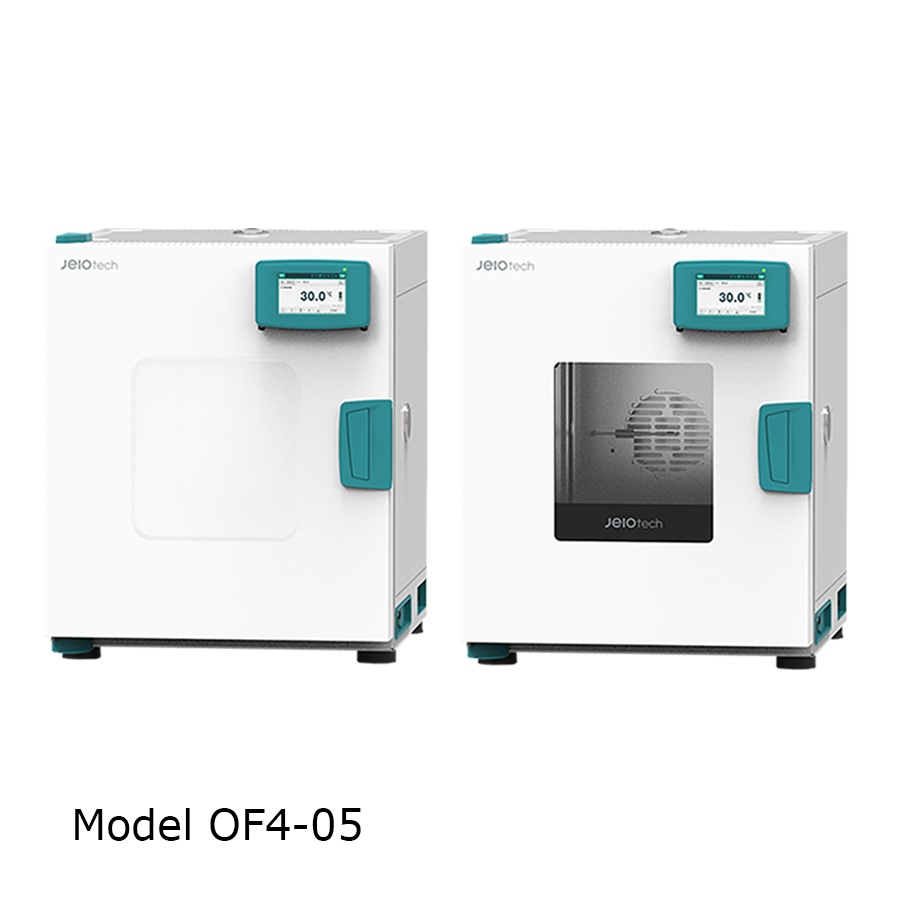

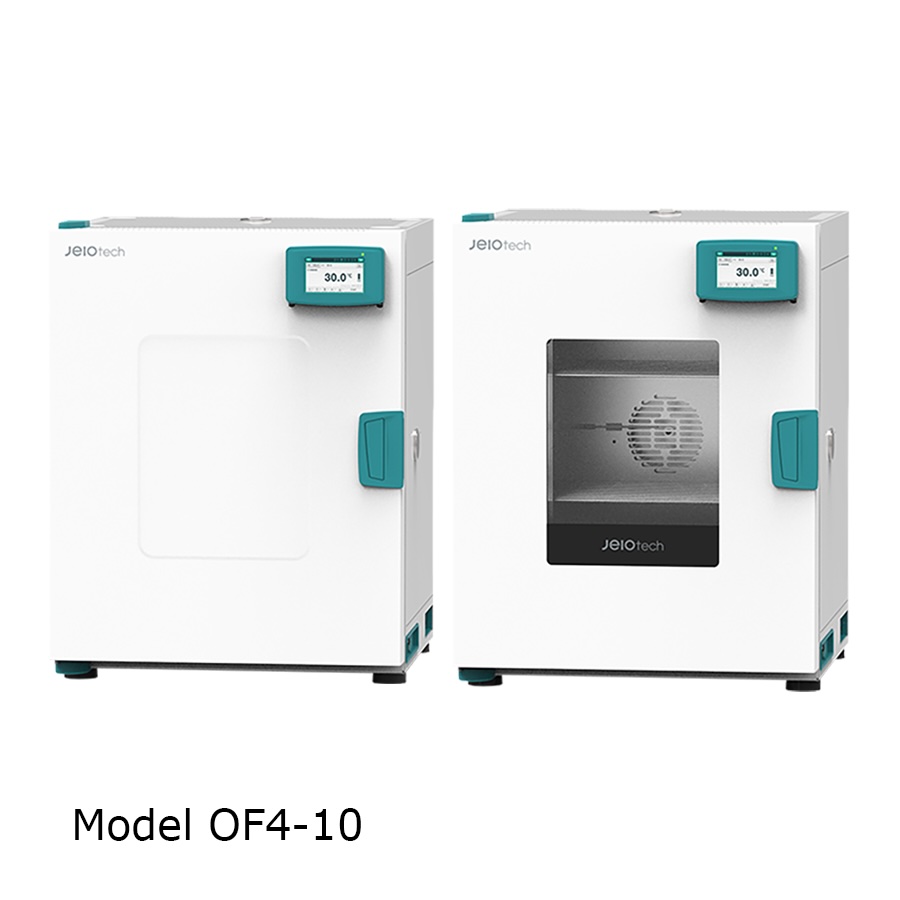

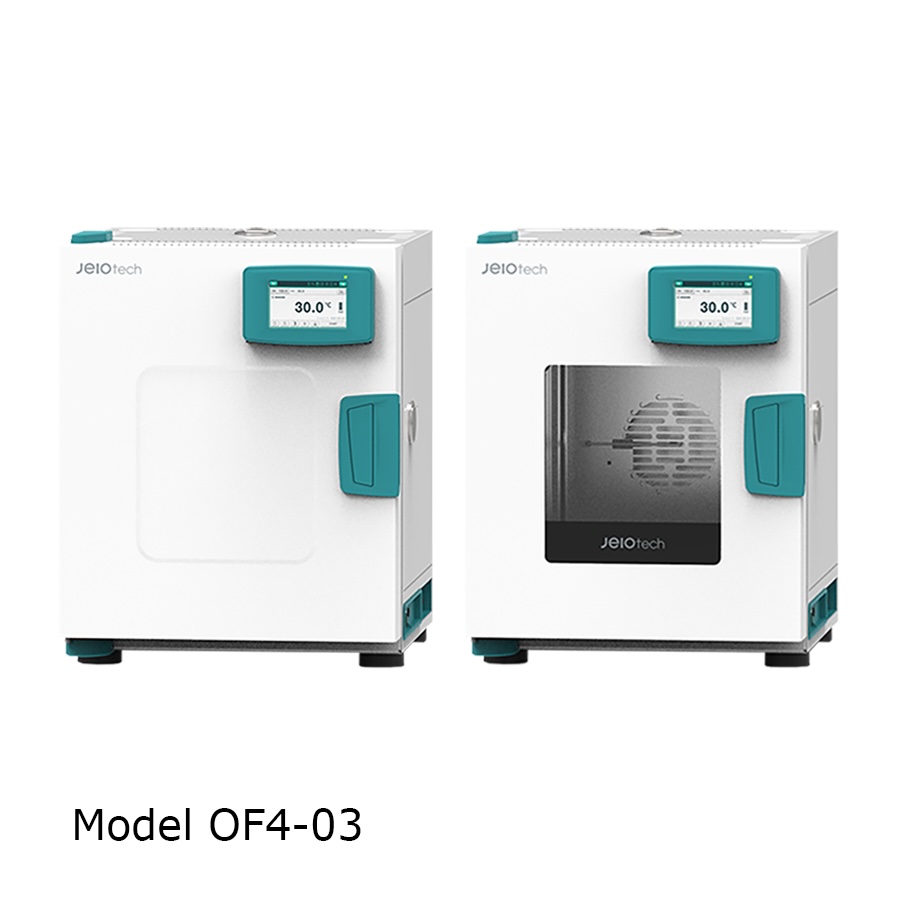

Model OF4-03 Adv. Forced OF4-05 Adv. Forced OF4-010 Adv. Forced OF4-15 Adv. Forced
Item # Solid Door (AAH12716U),
Window Door (AAH12816U)		 Solid Door (AAH12726U)
Window Door (AAH12826U)		 Solid Door (AAH12736U)
Window Door (AAH12836U)		 Solid Door (AAH12746U)
Window Door (AAH12846U)
Chamber Vol. 26 L | 0.92 Cu. Ft. 61 L | 2.15 Cu. Ft. 112 L | 3.96 Cu. Ft. 147 L | 5.19 Cu. Ft.
Temp. Variation at 100ºC ±1.4ºC | ±2.52ºF ±1.9ºC | ±3.42ºF ±1.7ºC | 3.06ºF ±0.3ºC | 0.54ºF
Heating Time to 100ºC 8 Minutes 10 Minutes 14 Minutes 15 Minutes
Temp. Ramping Rate (º/min.) 0~13ºC | 0~23.4ºF 0~9ºC | 0~16.2ºF 0~6ºC | 0~10.8ºF 0~5ºC | 0~9ºF
Interior Dimensions
(W x D x H)		 11.80 x 8.27 x 15.75 In.
300 x 210 x 400 mm		 14.97 x 13.0 0x 18.90 In.
380 x 330 x 480 mm		 19.09 x 13.78 x 25.79 In.
485 x 350 x 655 mm		 21.65 x 14.80 x 27.95 In.
550 x 376 x 710 mm
Exterior Dimensions
(W x D x H)		 18.82 x 20.75 x 23.78 In.
478 x 527 x 604 mm		 21.97 x 25.51 x 26.93 In.
558 x 648 x 684 mm		 26.1 x 26.65 x 33.82 In.
663 x 677 x 859 mm		 28.66 x 27.72 x 35.98 In.
728 x 704 x 914 mm
Net Weight 72.8 lb | 33 kg 116.8 lb | 53 kg 138.9 lb | 63 kg 160.9 lb | 73 kg
Shelves 2 Standard | 4 Max. 2 Standard | 5 Max. 2 Standard | 8 Max. 2 Standard | 9 Max.
Air Changes/hour at 100ºC 123 22 18 11

1) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the fluctuation and variation values will increase. (According to DIN 12880, before 2013)

2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)




Jeio Tech Advanced Forced Convection Ovens



Jeio Tech Advanced Forced Convection Ovens are engineered for reliable, precise, and user-friendly thermal processing in laboratory and research environments. Featuring a wide touch-screen controller, advanced airflow optimization, and powerful data management capabilities, these ovens deliver consistent temperature performance while simplifying daily operation.



Intuitive Touch-Screen Control



The large 5-inch TFT touch controller provides clear, intuitive access to all operating parameters. Real-time graphical displays allow users to easily monitor temperature trends, alarms, and test progress at a glance, improving visibility and confidence during critical processes.

  • 5-inch TFT touch-screen controller for intuitive operation
  • Real-time graphs for easy monitoring of events and alarms
  • Auto 3 temperature recommendations based on operating history
  • Wait On/Wait Off timer for efficient test scheduling
  • Adjustable ramping rates (ºC/min) for each individual test
  • Simple, flexible program setting interface tailored to specific test requirements

Optimized Airflow and User-Focused Design



Advanced structural and functional features are designed to enhance usability, workflow efficiency, and space utilization.

  • Opti-flow™ fan control allows flexible adjustment of fan speed based on specimen type and test conditions
  • Optional stacking kit enables safe stacking of units to maximize laboratory space efficiency
  • Hands-Free™ door system allows easy door opening while carrying samples with both hands

Fan speed can be adjusted manually, giving users full control over airflow and test conditions.



Real-Time Monitoring and Smart Connectivity



Jeio Tech ovens support seamless monitoring and control, helping users respond quickly to changes and maintain stable operating conditions.

  • Optional BMS (Building Management System) communication port for continuous temperature monitoring and rapid response to abnormalities
  • Optional LC Connected mobile monitoring system for real-time monitoring and control anytime, anywhere

Data Management and Test Progress Visibility



Built-in data recording and communication features simplify documentation, compliance, and process analysis.

  • RS-232 and USB communication ports with compatible PC software
  • Automatic data saving with easy USB download in CSV format
  • Automatic recording of up to 36 recent events, including errors and door open/close history, to support experiment review and troubleshooting

Reliable and Precise Temperature Performance



Advanced control mechanisms ensure stable, repeatable, and uniform heating performance across a wide operating range.

  • Maximum temperature up to 250ºC
  • Three-point temperature calibration for high accuracy over the entire temperature range
  • Adjustable ramping rates (ºC/min) tailored to each test
  • Excellent temperature uniformity through optimized airflow design (±1.9ºC or better at 100ºC)
Economy Forced Ovens
Item#:
ASCONVOVEN

Natural Convection Oven
Item#:
ASNATCONOVEN

Natural Convection Oven
Item#:
ASNATCONOVEN1

SKU Number Type Operating Temp Vol Price Quantity Add to Cart

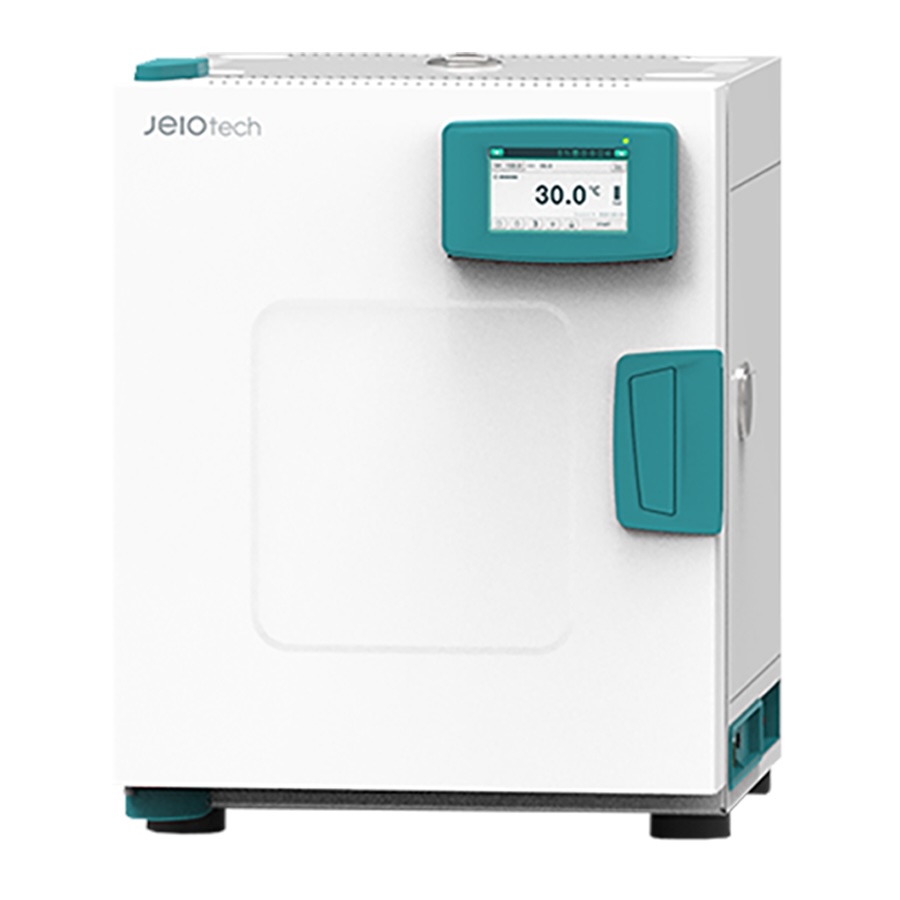

AAH12716U Adv. Forced, Solid Door Amb. 10 to 250C 26 L, 0.92 Cu. Ft
2788.00
Each
AAH12816U Adv. Forced, Window Door Amb. 10 to 250C 26 L, 0.92 Cu. Ft
2902.00
Each
AAH12726U Adv. Forced, Solid Door Amb. 10 to 250C 61 L, 2.15 Cu. Ft.
2881.00
Each
AAH12826U Adv. Forced, Window Door Amb. 10 to 250C 61 L, 2.15 Cu. Ft.
2996.00
Each
AAH12736U Adv. Forced, Solid Door Amb. 10 to 250C 112 L, 3.96 Cu. Ft.
3387.00
Each
AAH12836U Adv. Forced, Window Door Amb. 10 to 250C 112 L, 3.96 Cu. Ft.
3524.00
Each
AAH12746U Adv. Forced, Solid Door Amb. 10 to 250C 147 L, 5.19 Cu. Ft.
3813.00
Each
AAH12846U Adv. Forced, Window Door Amb. 10 to 250C 147 L, 5.19 Cu. Ft.
3933.00
Each
