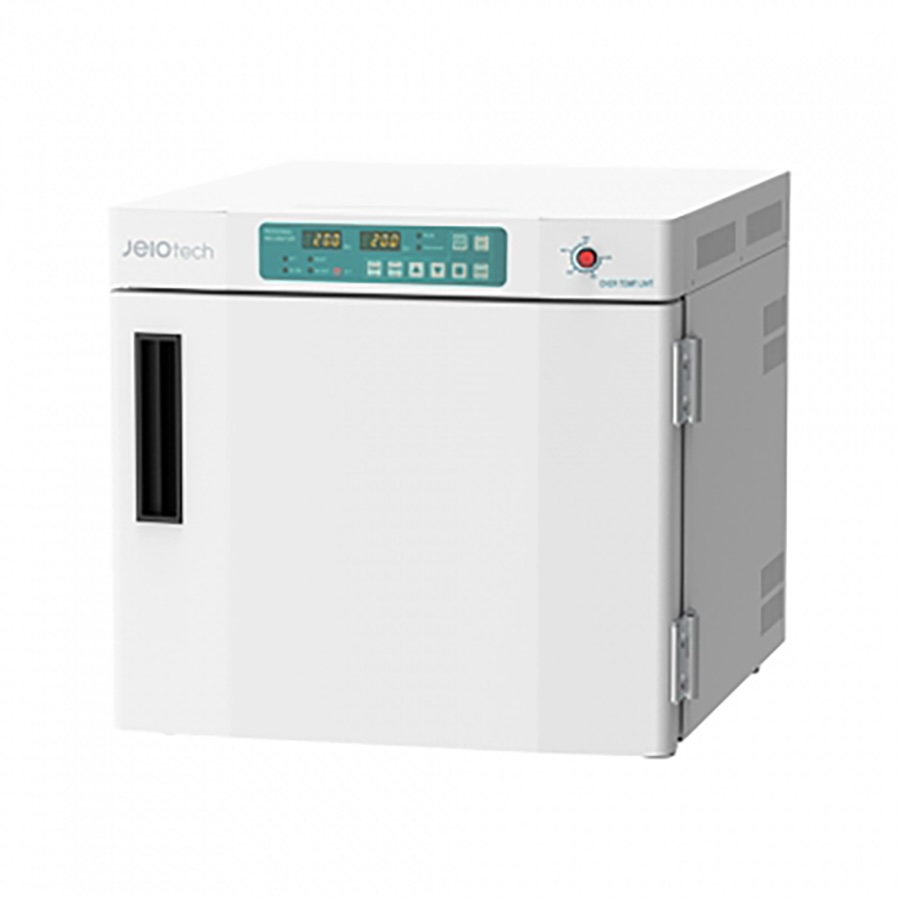

Jeio Tech Personal Refrigerated Incubators

Designed for convenience, durability, and safety.

These compact incubators have a stainless-steel interior and shelves made for corrosion resistance and easy cleaning/maintenance. The inner glass door is completely enclosed with silicone packing, making it easy to observe samples without changing the temperature, and the external door can be opened and closed smoothly with magnetic packing, minimizing sample impact.

Incubators are structured to circulate internal air for temperature control. These incubators also minimize vibration and power consumption by using an electronic cooling element. (Peltier module).

Main Attributes

• Accurately control temperature based on temperature calibration / autotuning / microprocessor PID
• Save and use 3 frequently used temperatures
• Wait On/Off timer (up to 99 hours 59 minutes)
• Operation and data management with computer connection
• Alarm function when the temperature sensor is disconnected
• Internal air circulation speed and defrost cycle control
• Monitor via mobile app anytime, anywhere with LC Connected (when purchased LC GreenBox)
• Various culture and incubating experiments with the 9-step program
• Temperature/time settings for each step
• Up to 99 hours and 59 minutes.

Safety Attributes

• Top-rated overheating protection system (registration KR 10-0397583)
• Over-temperature limit function
• Maloperation prevented by controller lock function

Specifications


Model	ILP-02 Personal	ILP-12 Personal
Item #	AAH24033U	AAH24043U
Chamber Vol.	14 L | 0.5 Cu. Ft.	48 L | 1.7 Cu. Ft.
Temp. Range at 68ºF | 20ºC	+41 to 104ºF | 5 to 40ºC	+41 to 104ºF | 5 to 40ºC
Temp. Range at 77ºF | 25ºC	+50 to 104ºF | 10 to 40ºC	+50 to 104ºF | 10 to 40ºC
Temp. Range at 86ºF | 30ºC	+59 to 104ºF | 15 to 40ºC	+59 to 104ºF | 15 to 40ºC
Temp. Fluctuation at 25ºC	0.18ºF | 0.1ºC	0.18ºF | 0.1ºC
Temp. Variation at 25ºC	0.9ºF | 0.5ºC	0.72ºF | 0.4ºC
Heating Time to 40ºC	17 min.	9 min.
Cooling Time 40 to 5ºC	60 min.	60 min.
Recovery Time at 25ºC	1.5 min.	1.5 min.
Interior Dimensions (W x D x H)	12.4 x 7.9 x 9.1 In. | 315 x 200 x 230 mm	13.1 x 13.1 x 17 In. | 334 x 334 x 430 mm
Exterior Dimensions (W x D x H)	17 x 19.4 x 15.7 In. | 430 x 495 x 400 mm	17 x 26.2 x 24.4 In. | 430 x 665 x 620
Net Weight	60.6 lb | 27.5 kg	108 lb | 49 kg
# of Shelves	1 Standard | 6 Max.	2 Standard | 13 Max.
Max. Load per Shelf	33 lb | 15 kg	44.1 lb | 20 kg
Electrical Requirements	3.4A (120V, 60Hz)	6.7A (120V, 60Hz)

Technical data (according to DIN 12880 before 2013)
