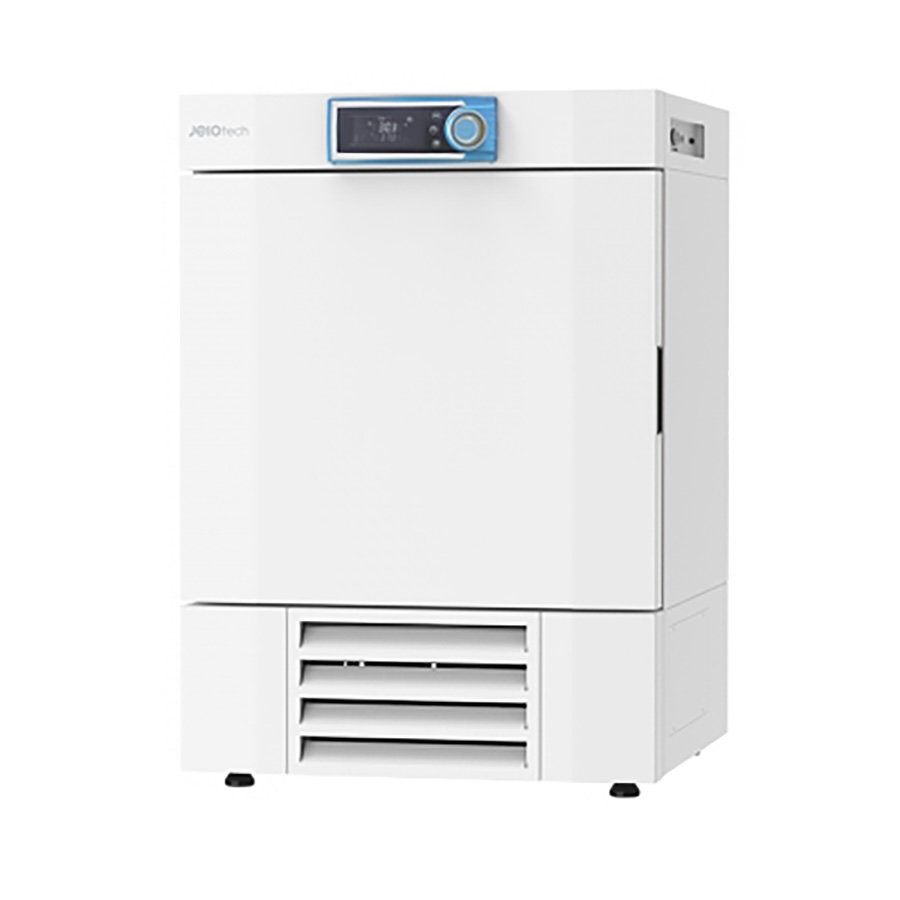

Jeio Tech Refrigerated Incubators

Performance Attributes

• Microprocessor PID control
• Three-point temperature calibration / Automatic tuning
• Air-jacketed Options
• Temperature range from: 4ºC to 70ºC
• Natural convection within the chamber induced by the heater and the fan located inside the air jacket
• Forced Convection Options
• Temperature range from: 0ºC to 80ºC
• Silent cooling system reduces water evaporation within the chamber
• Forced air convection using an optimal crossflow fan for chamber temperature uniformity

Convenience Attributes

• Large chamber volumes
• Bright VFD display (0.1ºC Resolution)
• Air-jacketed timer modes
• Dual delayed on/off timer modes. (1 min. to 99 hr. 59 min.) with heating level indication and a quick-adjustable dial knob
• Forced Convection timer modes
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.) with heating level indication and quick-adjustable dial knob
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
• Convenient preset function for 3 most commonly used temperature settings
• Built-in electrical outlet with a safety cover inside the chamber
• Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door
• Rounded inner chamber corners for easy cleaning and optimal airflow
• Quick-release front grill for easy cleaning of the condenser
• Built-in RS-232 port and USB port for external control and data collection
• Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection (when purchasing LC GreenBox)

Safety Attributes

• Automatic run after power interruption
• Over-current protection
• Triple independent temperature monitoring system
• Temperature deviation alarm (High/Low)
• Electronic temperature limiter (High/Low)
• Mechanical over-temperature limiter (High)
• Keypad lock function prevents accidental changes during operation
• Audible and visible open-door alarms

Specifications


Model	IL3-15A (Air-Jacketed)	IL3-25A (Air-Jacketed)	IL3-15 (Forced Convection)	IL3-25 (Forced Convection)
Item #	AAH220632U	AAH220732U	AAH220462U	AAH220562U
Chamber Vol.	156 L | 5.5 Cu. Ft.	254 L | 8.97 Cu. Ft.	150 L | 5.32 Cu. Ft.	242 L | 8.5 Cu. Ft.
Refrigerator (Hp)	1 / 6 HBP	1 / 6 HBP	1 / 6 HBP	1 / 6 HBP
Temp. Range	39.2 to 158ºF | 4 to 70ºC	39.2 to 158ºF | 4 to 70ºC	32 to 176ºF | 0 to 80ºC	32 to 176ºF | 0 to 80ºC
Temp. Fluctuation at 37ºC	0.36ºF | 0.2ºC	0.36ºF | 0.2ºC	0.18ºF | 0.1ºC	0.18ºF | 0.1ºC
Temp. Variation at 37ºC	1.26ºF | 0.7ºC	1.26ºF | 0.7ºC	1.44ºF | 0.8ºC	0.18ºF | 1.0ºC
Interior Dimensions (W x D x H)	24 x 20.5 x 20 In. 600 x 520 x 500 mm	20 x 21.3 x 37 In. 500 x 540 x 940 mm	24 x 20 x 20 In. 600 x 500 x 500 mm	20 x 20.5 x 36.6 In. 500 x 520 x 930 mm
Exterior Dimensions (W x D x H)	30 x 31.1 x 43.9 In. 770 x 790 x 1,115 mm	26.4 x 31.7 x 65.7 In. 670 x 805 x 1,668 mm	28.9 x 29.9 x 42.1 In. 720 x 760 x 1,070 mm	24.4 x 30.3 x 66.1 In. 620 x 770 x 1680 mm

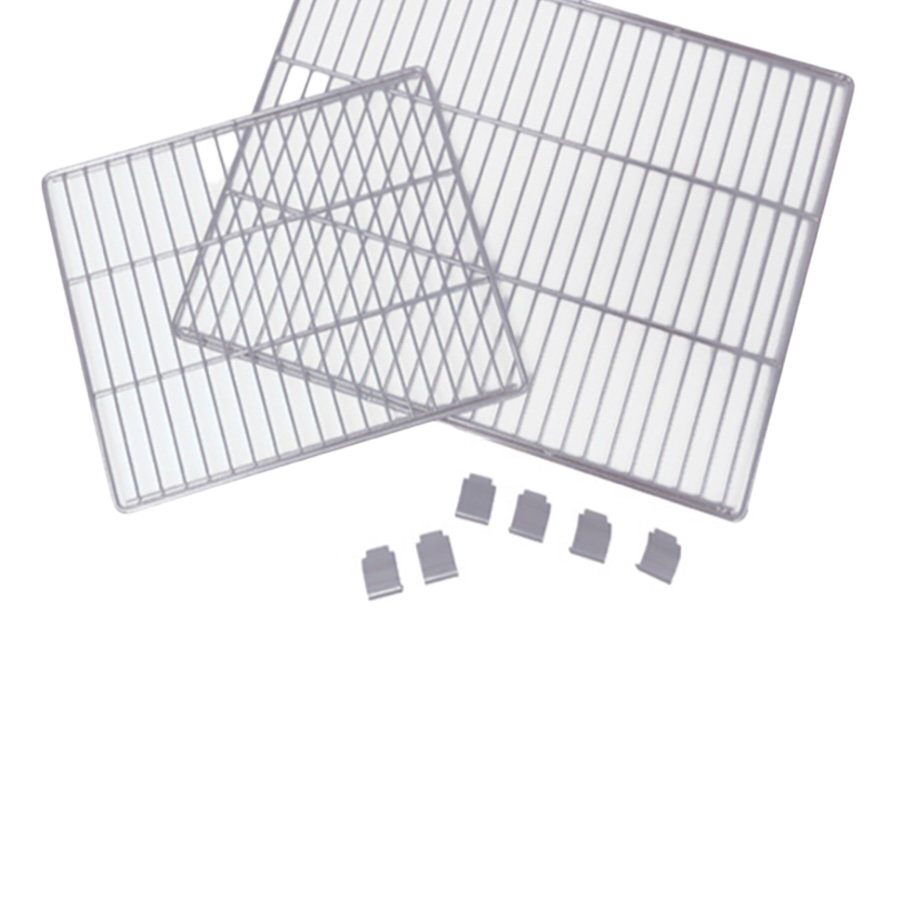

# of Wire Shelves	2 Standard | 11 Max.	3 Standard | 25 Max.	2 Standard | 11 Max.	3 Standard | 25 Max.
Net weight	238.1 lb | 108 kg	319.7 lb | 145 kg	220 lb | 100 kg	297 lb | 135 kg
Electrical Requirements	60Hz, 10.2A (120V)	60Hz, 12.3A (120V)	60Hz, 8.3A (120V)	60Hz, 10.6A (120V)
