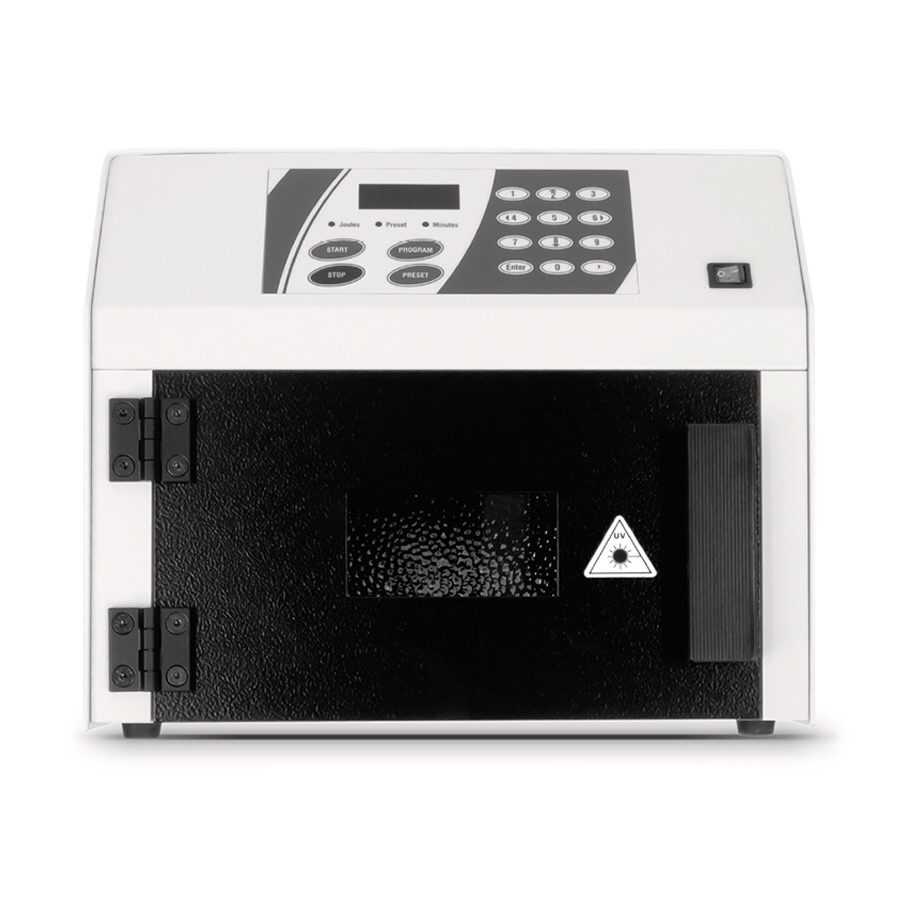

Uvitec CL-508 Crosslinker® UV Irradiation System

The Crosslinker® CL-508 is a complete, microprocessor-controlled UV irradiation system, mainly dedicated to the crosslinking of DNA and RNA by covalently binding nucleic acids to nitrocellulose or nylon membranes. With 9 possible presets for energy and time exposure, the CL-508 Crosslinker® is a safe and space-saving instrument offering fast, high-quality results. It is particularly suited for molecular biology applications requiring precise nucleic acid handling.

The system is designed for durability and long-term use, featuring a stainless-steel irradiation chamber, a protective quartz cover over the sensor, and a resistant touch-sensitive control panel. Operation is straightforward, with an intuitive interface and programmable settings.

The microprocessor-controlled system continuously monitors UV output and automatically stops irradiation once the exact programmed energy dose is reached. This ensures accuracy across every run and eliminates variability caused by fluctuations in UV lamp intensity.

With interchangeable UV tubes, the CL-508 also offers flexibility for various wavelengths, making it suitable for a wide range of applications such as Southern, Northern, dot, and slot blotting, nucleic acid crosslinking to membranes, PCR contamination reduction, RecA mutation screening, and other UV-based molecular biology techniques.

Main Attributes

• Microprocessor-controlled system for accurate and automated UV exposure
• Precise irradiation settings in energy (J/cm²) or time (seconds)
• Automatic shut-off when programmed energy dose is reached
• Highly reproducible results using integrated UV sensors

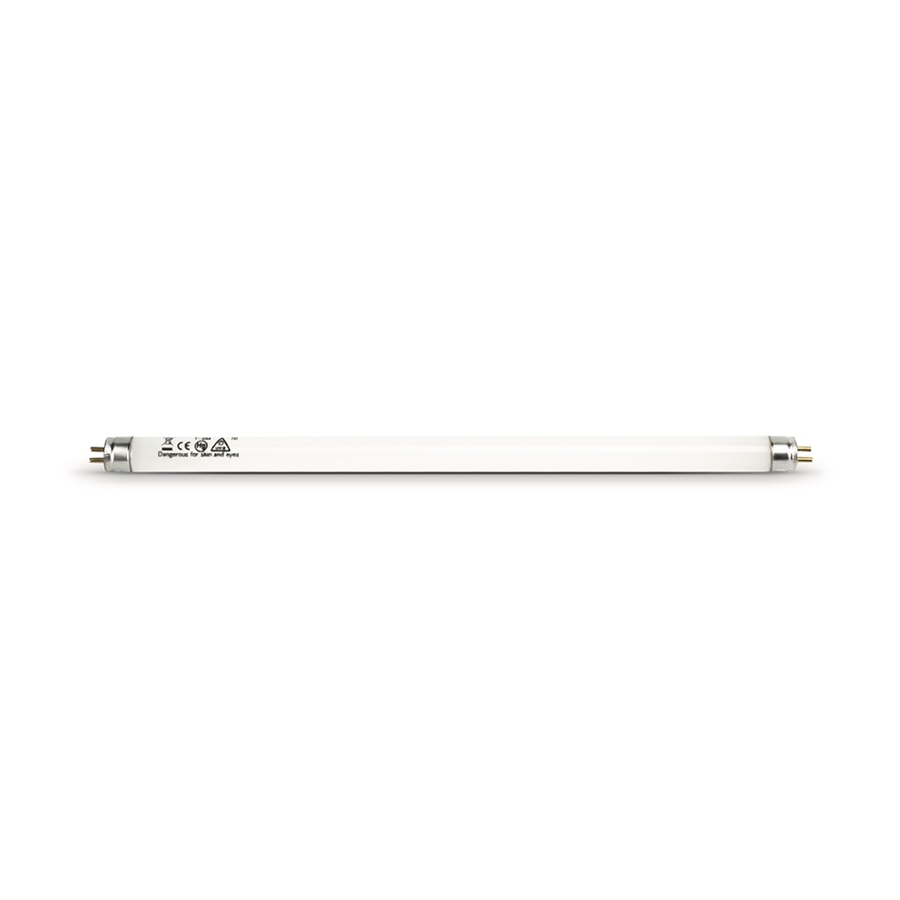

• Interchangeable UV tubes for flexible wavelength selection
• Integrated light well measurement capturing UV from all tubes for consistent readings
• Multiple safety features
• Safety interlock door with UV-blocking observation window
• Dual safety fuses
• Automatic restart with no data loss after a power interruption
• 2-Year Warranty

Programs and Controls

• 9 preset programs for UV energy exposure
• 9 preset programs for time exposure
• Preset dose of 0.120 J/cm² for optimized nucleic acid immobilization
• Manual adjustment of UV energy or exposure time
• Memory function to store last used UV setting

Crosslinker® comes equipped with the following:

• Touch panel membrane keypad for easy operation
• Large LED display for clear readout
• No loss of information if the circuit is interrupted
• Storage of the last UV setting (energy and time)
• Internal safety interlock
• UV blocking viewing window
• Large stainless steel internal UV exposure chamber
• Removable power cable

Climate Conditions

• Altitude: <2,000 Meters
• Operating Humidity: 20% to 80% (No concentration allowed)
• Operating Temp: 5 to 33ºC

Specifications


External Dimensions (D x W x H)	14.17 x 13.78 x 12 In. | 36 x 35 x 30.5 cm
Internal Dimensions (D x W x H)	12.99 x 10.24 x 5.71 In. | 33 x 26 x 14.5 cm
Weight	22.05 lb | 10 kg
Ultraviolet wavelength	254 nm, 312 nm or 365 nm
Ultraviolet Source	5 x 8-Watt Tubes
Warranty	2-Years


 Multiple Set Functions


UV Energy Exposure	9, Preset
UV Exposure Time	9, Preset
Manual Setting of UV Energy Exposure	Min. 0.025 Joules | Max. 99.99 Joules
Manual Setting of UV Exposure Time	Min. 10 Seconds | Max. 599 Minutes
Energy Display (2 Measurement Ranges)	From 0.000 to 9.999 Joules From 00.00 to 99.99 Joules
Exposure Time Display (2 Measurement Ranges)	From 00.00 to 99.59 Minutes/Seconds From 000.0 to 599.5 Minutes/Seconds
