Vacuubrand® BVC Professional Fluid Aspiration Systems

Item #: ASBVCPROF

Specifications

Max. pumping speed 50 Hz 0.7 m3/h (Vacuum pump)
Max. pumping speed 60 Hz 0.5 cfm (Vacuum pump)
Ultimate vacuum 150 mbar / 112 torr
Vacuum controller Touchpanel
Control range 150 - 850 mbar (adjustable)
Collection bottle 4 L Polypropylene (20727403), 2 L Glass (20727503)
Max. back pressure (abs.) 1.1 bar
Inlet connection Suction controller
Outlet connection Hose nozzle DN 8 mm / silencer
Rated motor power 0.04 kW
Rated motor speed at 50/60 Hz 1500/1800 min-1
Protection class IEC 60529 IP 40
Weight 16.976 lb | 7.7 kg (20727403), 17.86 lb | 8.1 kg (20727503)
Noise 49 dBA (sound pressure level) in dBA at 50 Hz or 1500 rpm/62% (VARIO)/1500 rpm (VARIO-SP)/12500 Upm (VACUU·PURE®)
NRTL certification Yes
Rated mains voltage range 1 100-115 V
Rated mains voltage range 2 120 V
Mains frequency 1 50-60 Hz
Mains frequency 2 60 Hz
Items supplied with
Item # 20727403		 Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, non-contact liquid level sensor, quick couplings (4l PP version), aspiration hand set VHCpro and protection filter, ready for use with manual.
Items supplied with
Item # 20727503		 Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, non-contact liquid level sensor, aspiration hand set VHCpro and protection filter, ready for use with manual.




Vacuubrand® BVC Professional Fluid Aspiration Systems

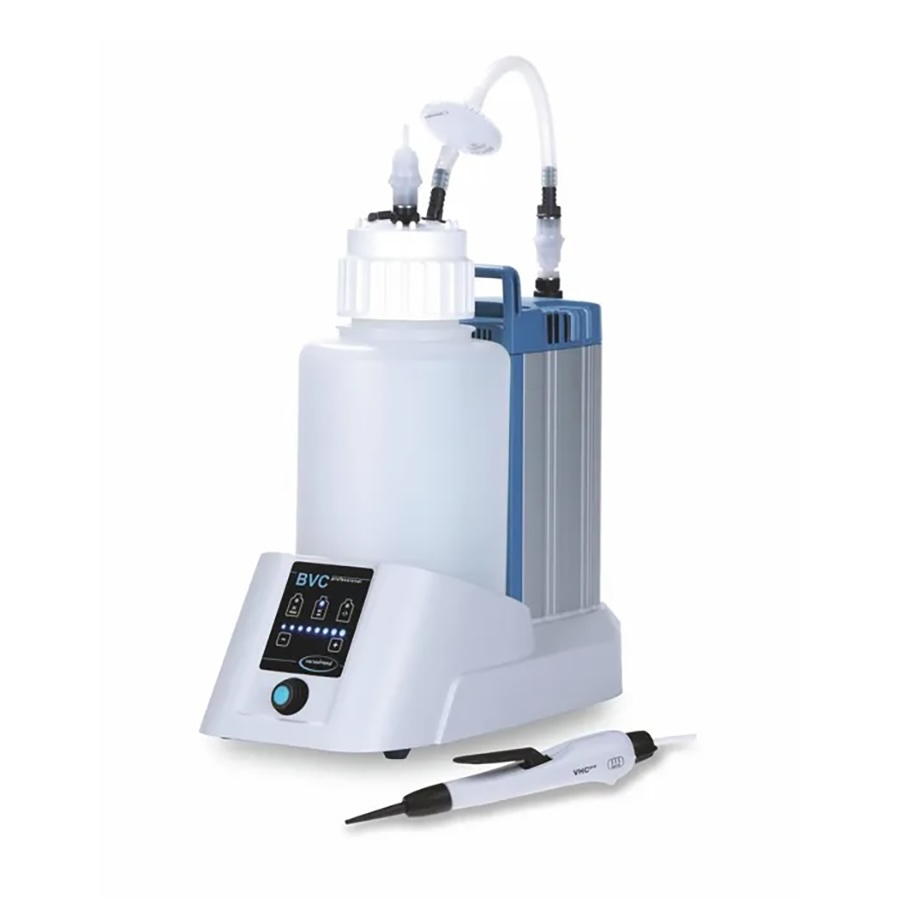

Vacuubrand® BVC Professional Fluid Aspiration Systems are designed for the safe, efficient aspiration and disposal of biological and biohazardous liquids in professional laboratory environments. Built on the proven advantages of BVC control technology, this system delivers exceptional safety, reliability, and ease of use while supporting demanding lab safety protocols.



A non-contact electronic liquid level sensor continuously monitors the collection bottle and automatically prevents overfilling, protecting both the user and the instrumentation. For enhanced biosafety, the integrated disinfection routine draws disinfectant through the aspiration hand set and tubing after the pump is switched off, reducing the risk of contamination and supporting strict hygiene workflows.



The BVC Professional is engineered for laboratories working with biological fluids, including biohazardous materials.

The BVC Professional is available in two configurations:

  • BVC Professional G with a 2 L coated borosilicate glass bottle
  • BVC Professional with a 4 L polypropylene (PP) bottle

Key design features, such as optional self-closing quick couplings (for BVC Professional G models), ensure secure handling, making the system ideal for clinical, research, and biotechnology labs that require both performance and compliance.



Main Attributes

  • All the proven advantages of BVC control technology
  • Non-contact sensor for electronic liquid level monitoring
  • Automatic overfill protection for enhanced safety
  • Integrated disinfection routine for aspiration tubing
  • Self-closing quick couplings for safe and convenient bottle changes
  • Designed for professional laboratories and biohazard applications
  • Supports compliance with stringent safety and disinfection protocols

*Warning: This product can expose you to chemicals, including Lead and Lead Compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Aspire Aspirator
Item#:
ASASPIRE1

BVC Basic Systems
Item#:
ASBVCBASIC

BVC Control Systems
Item#:
ASBVCCONTROL

SKU Number Type Description Range Bottle Qty Price Quantity Add to Cart
20727503 BVC Professional G Touchpanel Controller 150 to 850 mbar (adjst.) 2 L Glass 1/ea
3872.00
Each
20727403 BVC Professional Touchpanel Controller 150 to 850 mbar (adjst.) 4 L PP 1/ea
3872.00
Each
