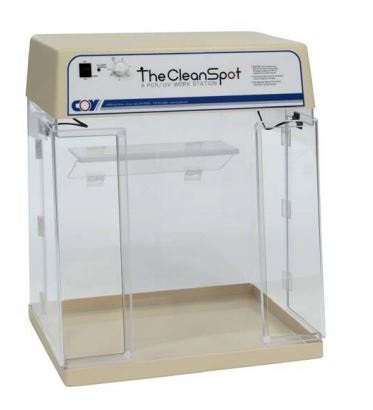

PCR Workstation, Clean Spot

Item #: CS01
VM-01UA

Vortex Mixer

  • Universal Head for a wide variety of mixing applications
  • Three operational features: “Touch Control”, “Timed”, and “Continuous Mode”
  • Constant torque within the full range of speed
  • Counterbalance design for minimal body vibration
  • Brushless DC motor drive for long life

Vortex Mixers are essential research lab instruments used for mixing and stirring in a variety of mixing applications. These mixers are powerful, quiet, and stable.


Specifications:


ModelVM-01UAVM-02UA
Product NameVortex Mixer with Digital
Timer and Analog Speed		Vortex Mixer with Digital
Timer and Speed
Operation ModeTouch Control, Timed,
or Continuous Run		Touch Control, Timed,
or Continuous Run
Orbital DiameterØ4.5 mm (Ø0.18″)Ø4.5 mm (Ø0.18″)
Speed0~3000 rpm200~3000 RPM
Speed Accuracy±10%±10%
Speed DisplayN/ALED
Timer1 ~ 999 min1~999min
Timer DisplayN/ALED
OscillationCircularCircular
Accessories included
in standard Packaging		1 x VMA01 (Single Tube Head)1 x VMA01 (Single Tube Head)
Single Tube Head
Dimensions		Ø76mm (Ø3 in.)Ø76mm (Ø3 in)
Max Load0.5 kg (1.1 lb)0.5 kg (1.1 lb)
Ambient Temperature5°C~40°C5°C ~ 40°C
Relative Humidity≤ 80%≤80%
Power SupplyAC110 V ± 11V, 60 HzAC110V±11V, 60Hz
Max Power24W24 W
Dimension (W x D x H)155 x 205 x 108 mm
(4.5 x 8.1 x 4.3 in.)		155 x 205 x 108 mm
(4.5 x 8.1 x 4.3 in.)
Net Weight4 kg (8.8 lb)4 kg (8.8 lb)
Protection LevelIP21IP21
CertificationsCECE

PCR Workstation
PCR Workstation, Clean Spot
Special Order
Quantity:
