Vortex Mixer

Item #: ASVORTEXMIX
QuadCount Cell Counter


Accuris™ QuadCount™ Automated Cell Counter

The Accuris QuadCount™ improves on the simple technique of brightfield microscopy by utilizing an LED light source, precision optics and a high resolution CMOS detector. A finely tuned, motorized XYZ positioning stage provides for extra fine focusing and ability to capture multiple images.

With count speeds at fast as 20 seconds per sample, the Accuris QuadCount™ provides many advantages over the tedious and time consuming manual hemocytometry method. The advanced software eliminates human bias in dead/live determinations, reduces counting errors, saves time, and improves efficiency.

The QuadCount™ utilizes a unique 4-chambered disposable QuadSlide™.  Four samples can be processed in one slide (twice the capacity of standard 2-chambered slides), decreasing consumable costs.  Each chamber has a hydrophilic inner surface with an engraved grid pattern. High precision production and molding ensure that each QuadSlide meets the rigorous standards and dimensional tolerances required for optimal counting performance.

3 Count Modes Available to analyze different sample volumes.
  • Quick Mode: 0.15 uL / 20 seconds (1 image frame)
  • Normal Mode: 0.9 uL / 30 seconds (6 image frames)
  • Precise Mode: 3.6 uL/ 100 seconds  (24 image frames)
The QuadCount’s ability to analyze larger sample volumes/multiple images provides significantly better accuracy.

Advanced Optics and Imaging Technology
The Accuris™ QuadCount™ incorporates the highest quality optical and electronic components, such as a 4X objective lens and 5 MP CMOS detector, to ensure reliable performance and consistent results.
The precision motorized stage adjusts the position of the lens and sensor assembly in micron increments for automatic focus.  Multiple image frames (up to 24) can be captured to increase the volume of sample counted, providing a higher level of accuracy.

Autofocus
Correct focus is crucial for accurate counts of viable cells. The QuadCount’s proprietary autofocus system and image analysis software work in conjunction with the motorized stage to analyze and capture images in the proper focal plane.

Advanced Algorithms
Advanced detection algorithms easily manage irregularly shaped and aggregated cells. Often misinterpreted by visual counting, correct analysis of these cells is performed by QuadCount’s software, resulting in more accurate counts. User to user variation is eliminated.

Intuitive User Interface
After images are captures, the cell count parameters are easily adjusted.
  • Gating size range
  •  Aggregation level
  •  Live/dead definition
Cell population statistics are viewed as a histogram and cell size gating can be adjusted.  Choose to view the histogram data for individual or multiple chambers in each QuadSlide.

Specifications

OpticsHigh quality 4x objective lens
Image Detection5 mega pixel CMOS sensor
IlluminationGreen LED (50,000 hour life)
Sample Volume20 uL (4 samples per QuadSlide)
Max. Counting Volume3.6 uL (24 image captures)
Consumable SlideQuadSlide, 4-chamber
Counting Modes/SpeedsQuick (20 sec), Normal (30 sec), Precise (100 sec)
Dynamic Range1 x 104 to 1 x 107 cells per mL
Cell Size Range5 to 60 um
Dimensions6.4 x 11.5 x 8.5 In. | 16.3 x 29.3 x 21.6 cm
Weight11 lbs
Electrical115 V, 50-60 Hz
12 Mini Microcentrifuge
Item#:
ASMINCENMF12

PR1MA Plate Microcentrifu
Item#:
ASPCRCENT2

SKU Number Type Speed Orbital Diameter Max Load Price Quantity Add to Cart
VM-01UA Vortex Mixer w/ Digital Timer & Analog Speed 0 - 3,000 rpm 4.5 mm 1.1 lbs
404.00
Each

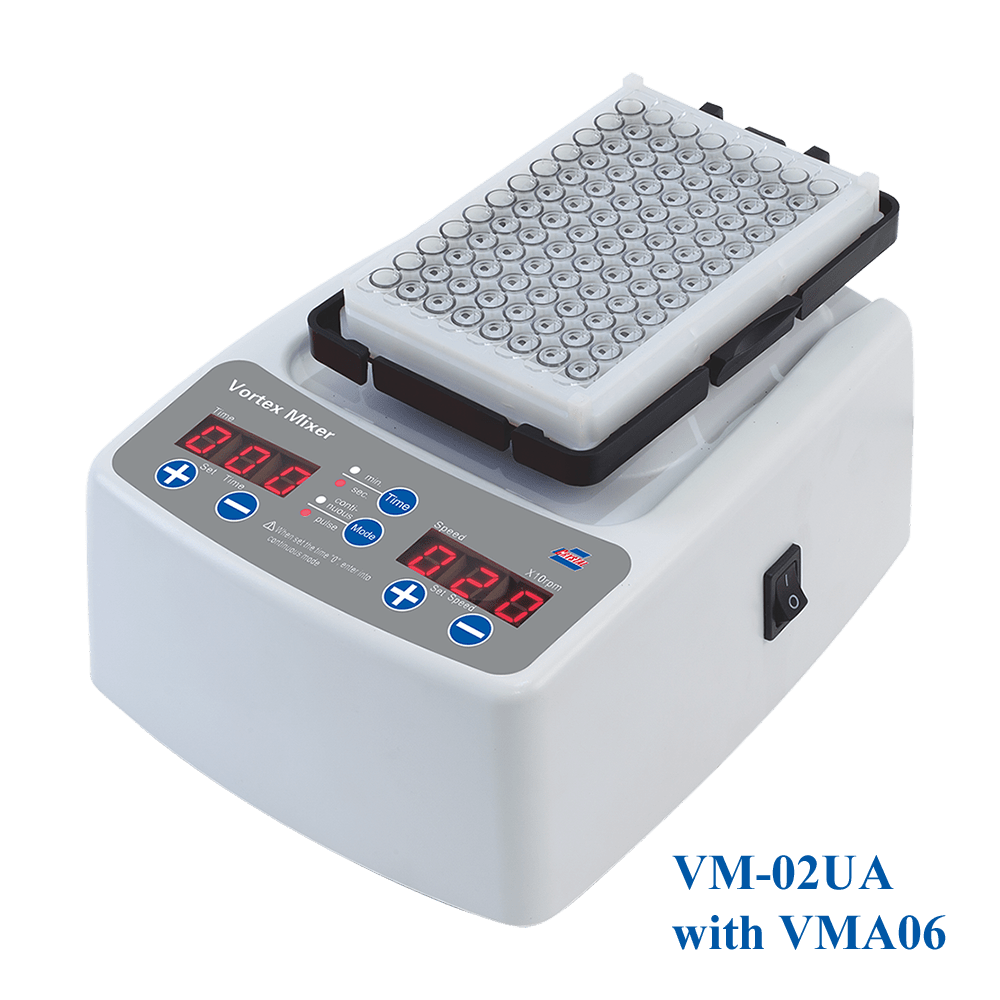

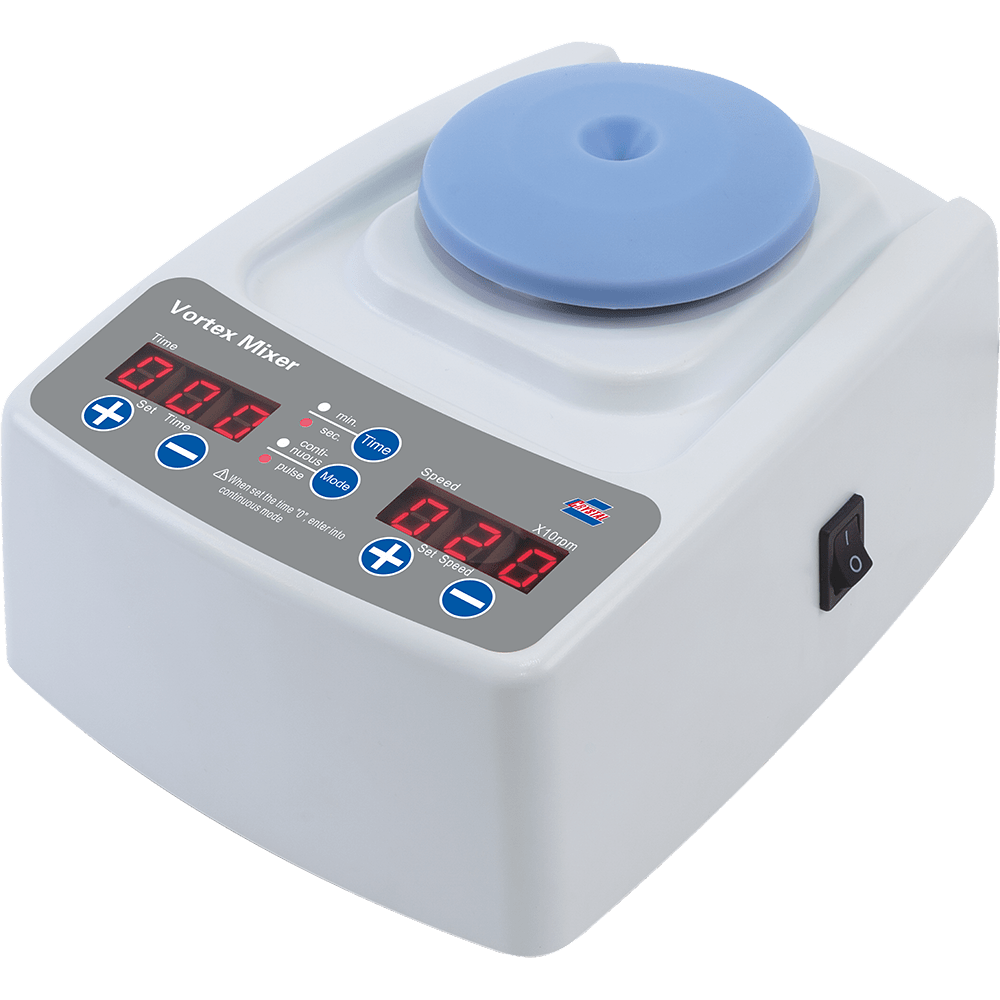

VM-02UA Digital Vortex Mixer w/ Digital Timer & Speed 200 - 3,000 rpm 4.5 mm 1.1 lbs
421.00
Each
VMA01 Single Tube Head N/A N/A Standard Platform, Concave Design, Single Tube Mix
13.00
Each
VMA02 Adaptor for VMA04 and VMA05 N/A N/A Needed for use with VMA04 and VMA05
18.00
Each
VMA03 Adaptor for VMA07, VMA08, VMA09 N/A N/A Needed for use with VMA07, VMA08, & VMA09
39.00
Each
VMA04 12 mm Tube Holder N/A N/A Holds 7 x 12 mm (0.47 in) Tubes, Held by VMA02
16.00
Each
VMA05 Customizable Tube Blank N/A N/A Can Drill Holes to Custom Dia, Held by VMA02
11.00
Each
VMA06 Microplate Holder N/A N/A Holds One Microplate
26.00
Each
VMA07 ELISA Plate Holder N/A N/A Holds ELISA Plate, Held by VMA03
65.00
Each
VMA08 Combo Tube Holder N/A N/A Holds 1.5/2mL, 5/7mL, 10/15mL Tubes, Held by VMA03
62.00
Each
VMA09 PCR Tube Holder N/A N/A Holds PCR Tubes and Strips, Held by VMA03
49.00
Each
VM-01UA
Vortex Mixer
Special Order
Quantity:
