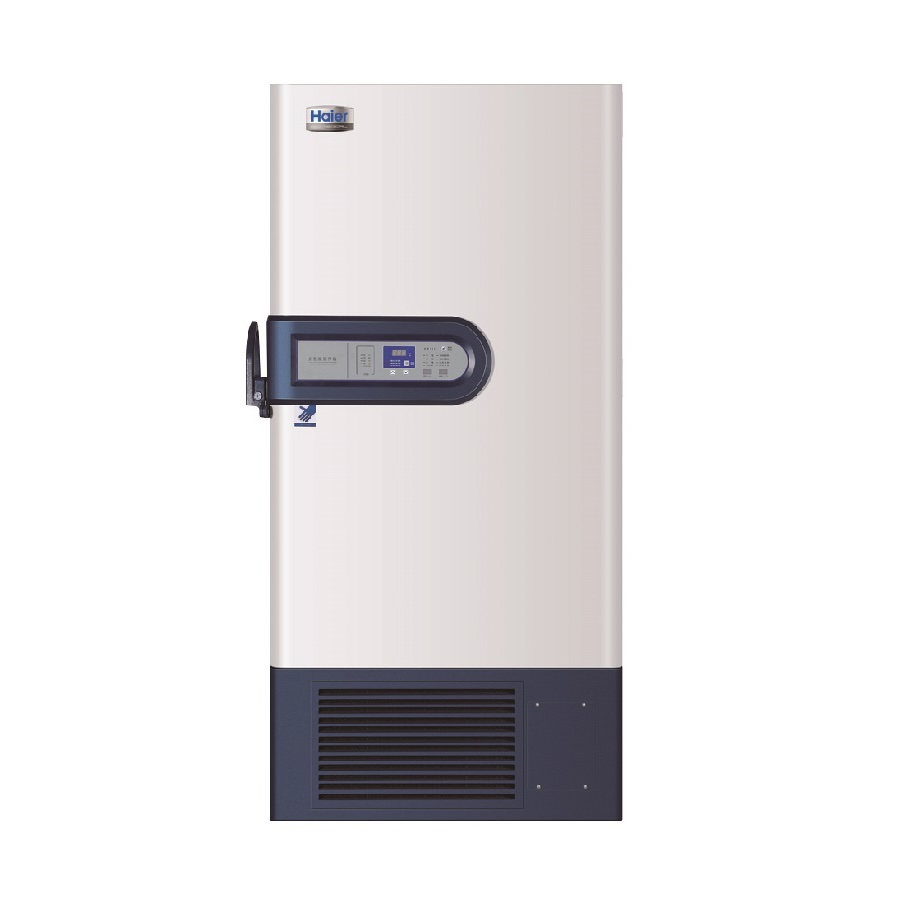

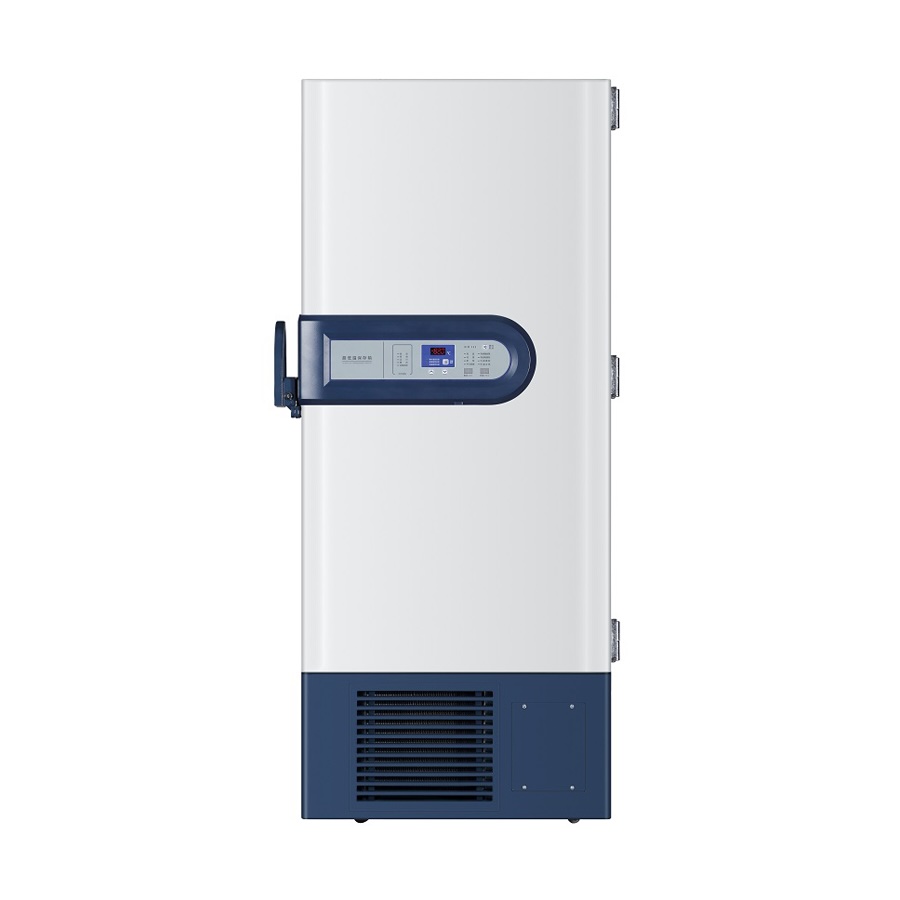

Haier Ultra-Low Temperature Freezer

Item #: ASULTLOWFREZ

3 years on all parts and 5 years on the compressor

Specifications




DW-86L338J

DW-86L338JA

DW-86L578J

DW-86L578JA

DW-86L728J

DW-86L728JA

DW-86L828JA






Technical Data



Type

-86°C ULT Freezer

-86°C ULT Freezer

-86°C ULT Freezer

-86°C ULT Freezer

-86°C ULT Freezer

-86°C ULT Freezer

-86°C ULT Freezer



Cabinet Type

Upright

Upright

Upright

Upright

Upright

Upright

Upright



Climate Class

N

N

N

N

N

N

N



Cooling Type

Direct Cooling

Direct Cooling

Direct Cooling

Direct Cooling

Direct Cooling

Direct Cooling

Direct Cooling



Defrost Mode

Manual

Manual

Manual

Manual

Manual

Manual

Manual



Refrigerant

HC

HC

HC

HC

HC

HC

HC



Noise Lever (dB)

50

50

50

50

50

50

51.5



Performance



Cooling performance

-86°C

-86°C

-86°C

-86°C

-86°C

-86°C

-86°C



Temperature Range

-40°C to -86°C

-40°C to -86°C

-40°C to -86°C

-40°C to -86°C

-40°C to -86°C

-40°C to -86°C

-40°C to -86°C



Control



Controller

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor



Display

LED

LED

LED

LED

LED

LED

LED



Electrical Data



Power Supply

115V, 60Hz

200V, 60 Hz

115V, 60Hz

220V, 60Hz

115V, 60Hz

220V, 60Hz

220V, 60Hz



Power

700W

700W

1000W

1000W

1000W

1000W

1100W



Electrical Current

11A

11A

18A

9A

18A

10A

10A



Dimensions



Capacity(L/Cu.Ft)

338 L / 11.9 Cu Ft

338 L / 11.9 Cu Ft

578 L / 20.4 Cu Ft

578 L / 20.4 Cu Ft

728 L / 25.7 Cu Ft

728 L / 25.7 Cu Ft

828 L / 29.2 Cu Ft



Net/Gross Weight(approx)

238/278 kg

238/278 kg

300/330 kg

300/330 kg

345/385 kg

345/385 kg

380/410 kg





524.7/612.9 lbs

524.7/612.9 lbs

661.4/727.5 lbs

661.4/727.5 lbs

760.6/848.8 lbs

760.6/848.8 lbs

837.7/903.9 lbs



Interior Dimensions

465 x 630 x 1165 mm

465 x 630 x 1165 mm

620 x 716 x 1310 mm

620 x 716 x 1310 mm

766 x 716 x 1310 mm

766 x 716 x 1310 mm

870 x 716 x 1310 mm



(W x D x H)

18.3 x 24.8 x 45.9 in

18.3 x 24.8 x 45.9 in

24.4 x 28.2 x 51.6 in

24.4 x 28.2 x 51.6 in

30.2 x 28.2 x 51.6 in

30.2 x 28.2 x 51.6 in

34.3 x 28.2 x 51.6 in



Exterior Dimensions

812 x 893 x 1846 mm

812 x 893 x 1846 mm

895 x 980 x 1960 mm

895 x 980 x 1960 mm

1041 x 980 x 1980 mm

1041 x 980 x 1980 mm

1145 x 980 x 1980 mm



(W x D x H)

32.0 x 35.2 x 72.7 in

32.0 x 35.2 x 72.7 in

35.4 x 38.6 x 77.2 in

35.4 x 38.6 x 77.2 in

41.0 x 38.6 x 78.0 in

41.0 x 38.6 x 78.0 in

45.1 x 38.6 x 78.0 in



Packing Dimensions

875 x 970 x 2010 mm

875 x 970 x 2010 mm

950 x 1055 x 2125 mm

950 x 1055 x 2125 mm

1090 x 1050 x 2150 mm

1090 x 1050 x 2150 mm

1190 x 1045 x 2150 mm



(W x D x H)

34.4 x 38.2 x 79.1 in

34.4 x 38.2 x 79.1 in

37.4 x 41.5 x 83.7 in

37.4 x 41.5 x 83.7 in

42.9 x 41.3 x 84.6 in

42.9 x 41.3 x 84.6 in

46.9 x 41.1 x 84.6 in



Container load (20'/40'/40'H)

12/24/2024

12/24/2024

12/24/2024

12/24/2024

12/20/2020

12/20/2020

8/20/2020



Functions



High/Low Temperature

Y

Y

Y

Y

Y

Y

Y



Remote Alarm

Y

Y

Y

Y

Y

Y

Y



Hot Condenser

Y

Y

Y

Y

Y

Y

Y



Power Failure

Y

Y

Y

Y

Y

Y

Y



High/Low Voltage

N/A

N/A

N/A

N/A

N/A

N/A

N/A



Sensor Error

Y

Y

Y

Y

Y

Y

Y



Low Battery

Y

Y

Y

Y

Y

Y

Y



High Ambient Temp

Y

Y

Y

Y

Y

Y

Y



Door Ajar

Y

Y

Y

Y

Y

Y

Y



Accessories



Caster

Y

Y

Y

Y

Y

Y

Y



Foot

Y

Y

Y

Y

Y

Y

Y



Test Hole

Y/2

Y/2

Y/2

Y/2

Y/2

Y/2

Y/2



Shelves/Inner Doors

3 | 2

3 | 2

3 | 4

3 | 4

3 | 4

3 | 4

3 | 4



Temperature Recorder

Optional

Optional

Optional

Optional

Optional

Optional

Optional



USB Interface

Y

Y

Y

Y

Y

Y

Y



Rs232/485 Interface

Optional

Optional

Optional

Optional

Optional

Optional

Optional



CO2 Backup System

Optional

Optional

Optional

Optional

Optional

Optional

Optional



LN2 Backup System

Optional

Optional

Optional

Optional

Optional

Optional

Optional

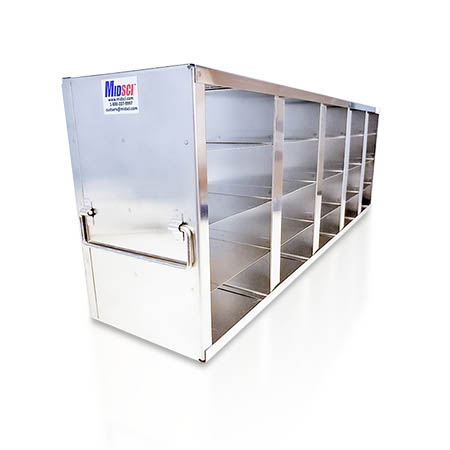

Racks And Boxes

Optional

Optional

Optional

Optional

Optional

Optional

Optional




Vortex Mixer


PR1MA™ Vortex Mixer

  • Powerful motor for INSTANT vortexing
  • Continuous or “touch” operation
  • Q-Drive™ dynamic balancing system
  • Variable speed from 200 to 3200 rpm
  • Wide variety of accessories

The PR1MA™ Vortex Mixer sets the new standard in vortex mixing. With advanced Q-Drive™ technology, the PR1MA™ Vortex Mixer provides smooth instant vortexing of even the largest sample sizes, including full 50 mL tubes. The unique counter-balance system creates maximum vortexing action while minimizing noise and excessive vibration. This results in quieter, more efficient, and longer-lasting operation.

Other features include “no-walk” suction feet, cold room/incubator compatibility, and spill-proof electronic controls.

Mixer with Multi-Head
Item#:
ASVORTEX1

V2 Vortex Mixer
Item#:
ASLD1003

SKU Number Cu Ft Operating Temp Range Style Monitoring System Price Quantity Add to Cart

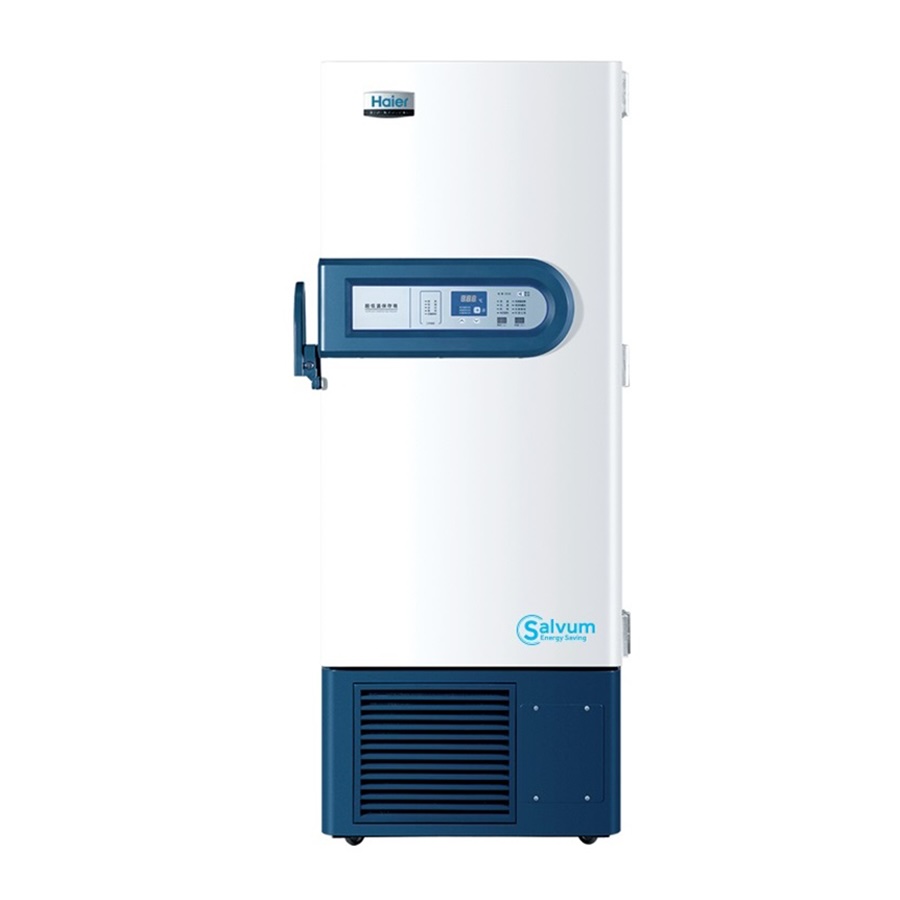

DW-86L338J 11.9 Cu Ft (338 L) -40°C to -86°C Upright 115 V 60 HZ Yes, see Spec Tab
13300.00
Each
DW-86L338JA 11.9 Cu Ft (338 L) -40°C to -86°C Upright 220 V 60 HZ Yes, see Spec Tab
13300.00
Each

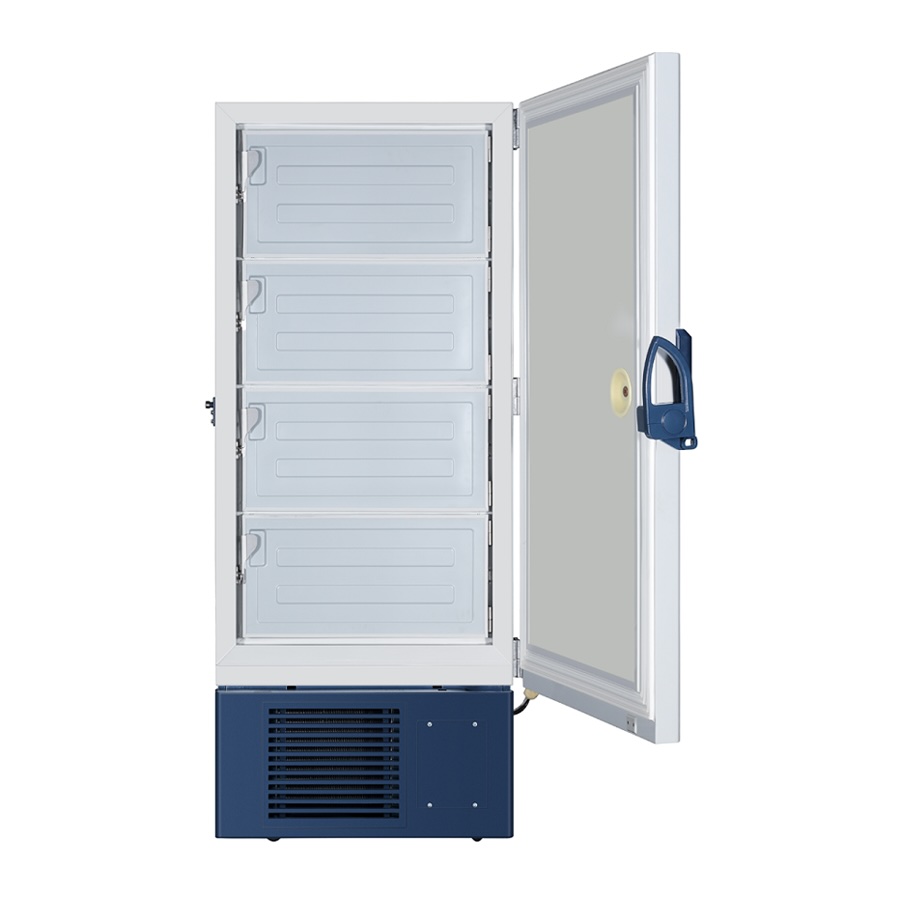

DW-86L578J 20.4 Cu Ft (578 L) -40°C to -86°C Upright 115 V 60 HZ Yes, see Spec Tab
15800.00
Each
DW-86L578JA 20.4 Cu Ft (578 L) -40°C to -86°C Upright 220 V 60 HZ Yes, see Spec Tab
15800.00
Each

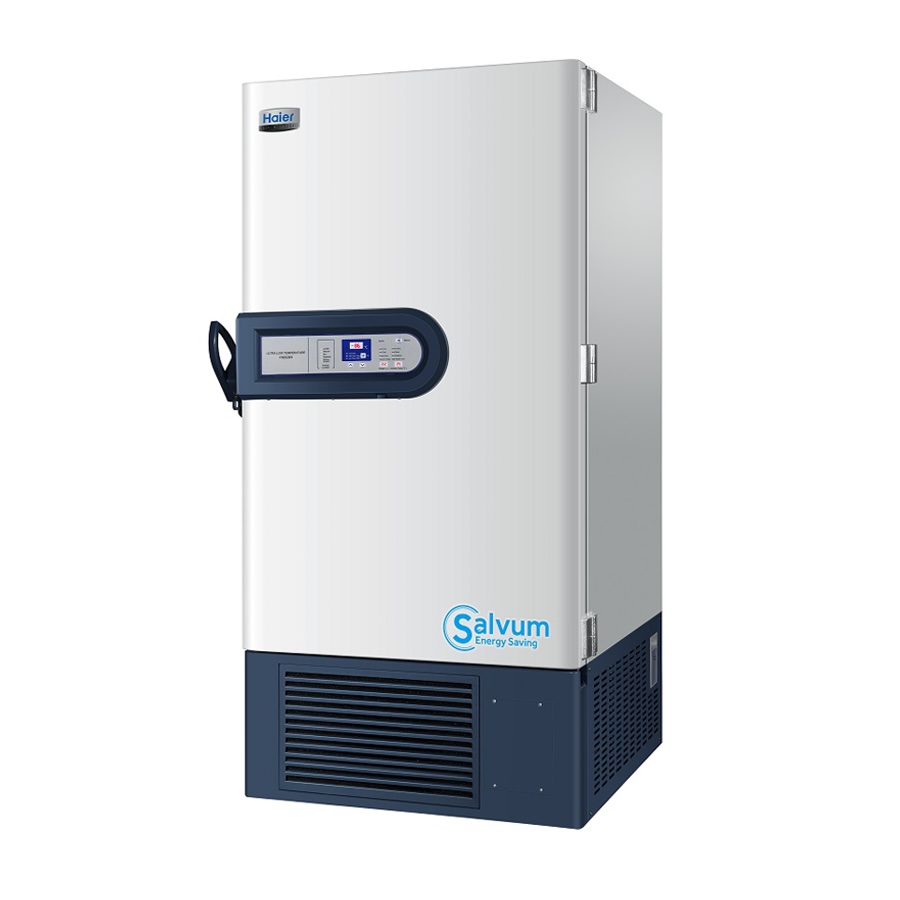

DW-86L728J 25.7 Cu Ft (728 L) -40°C to -86°C Upright 115 V 60 HZ Yes, see Spec Tab
17900.00
Each
DW-86L728JA 25.7 Cu Ft (728 L) -40°C to -86°C Upright 220 V 60 HZ Yes, see Spec Tab
17900.00
Each
DW-86L828JA 29.2 Cu Ft (828 L) -40°C to -86°C Upright 220 V 60 HZ Yes, see Spec Tab
18300.00
Each

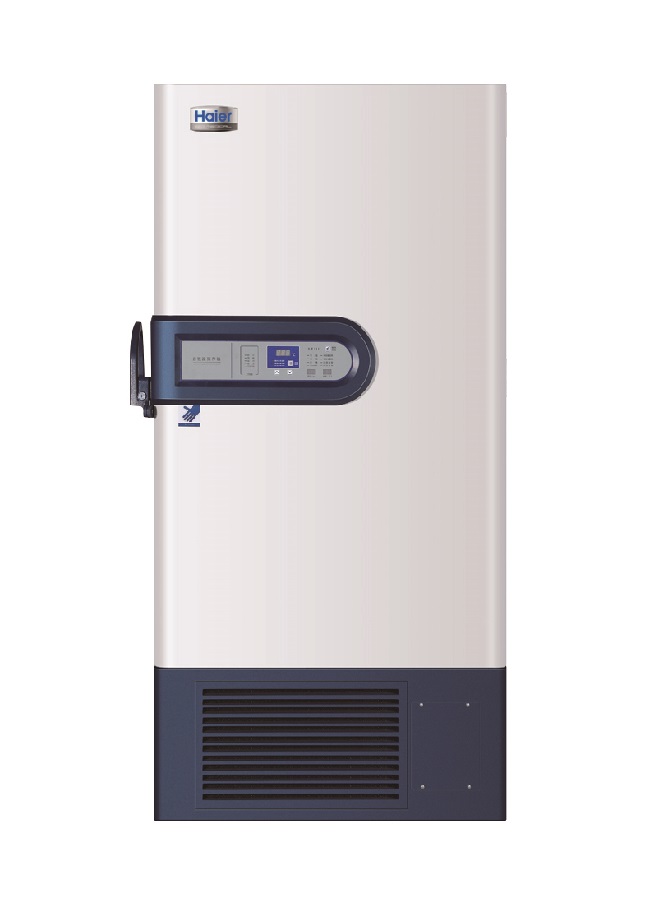

DW-86L828JA
Haier Ultra-Low Temperature Freezer
Special Order
Quantity:
