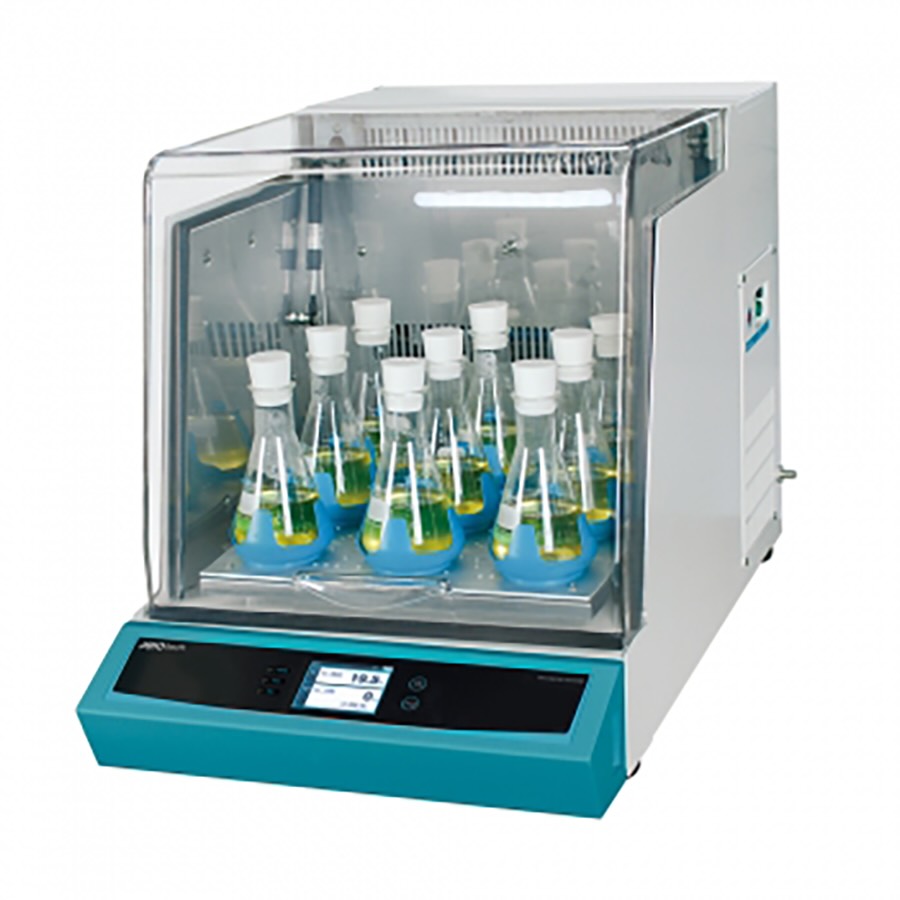

Jeio Tech Benchtop Incubated Shakers

Digital incubating/refrigerating benchtop shakers with optional dedicated platform and universal attachment.

These shakers offer a high shaking speed of up to 500 rpm and a wide speed range even with a heavy workload. Shakers are equipped with a maintenance-free BLDC motor to generate a smooth, quiet, uniform, and yet powerful shaking motion, 19 mm in diameter.

The testing environment is clean and stable, supported by the smooth acceleration and deceleration control. Smooth start and stop functions prevent chemical spills from flasks or test tubes.

Shakers have exceptional temperature performance. A high-velocity fan ensures uniform temperature distribution and rapid thermal recovery after the door is opened. Air-tight silicone door seal provides excellent temperature uniformity.

Temperature range:

• Ambient +5°C to 80°C for IST-3075 / 4075.
• Ambient -15°C (Min. 15) to 80°C for IST-3075R / 4075R.

Main Attributes

• Performance
• Competitive high shaking speed up to 500 rpm
• Orbital shaking motion (19 mm diameter)
• Microprocessor PID control
• Three-point temperature calibration / Automatic tuning
• Sustainability
• Eco-friendly design with R-600a refrigerant to minimize greenhouse gas emissions (R models)
• Convenience

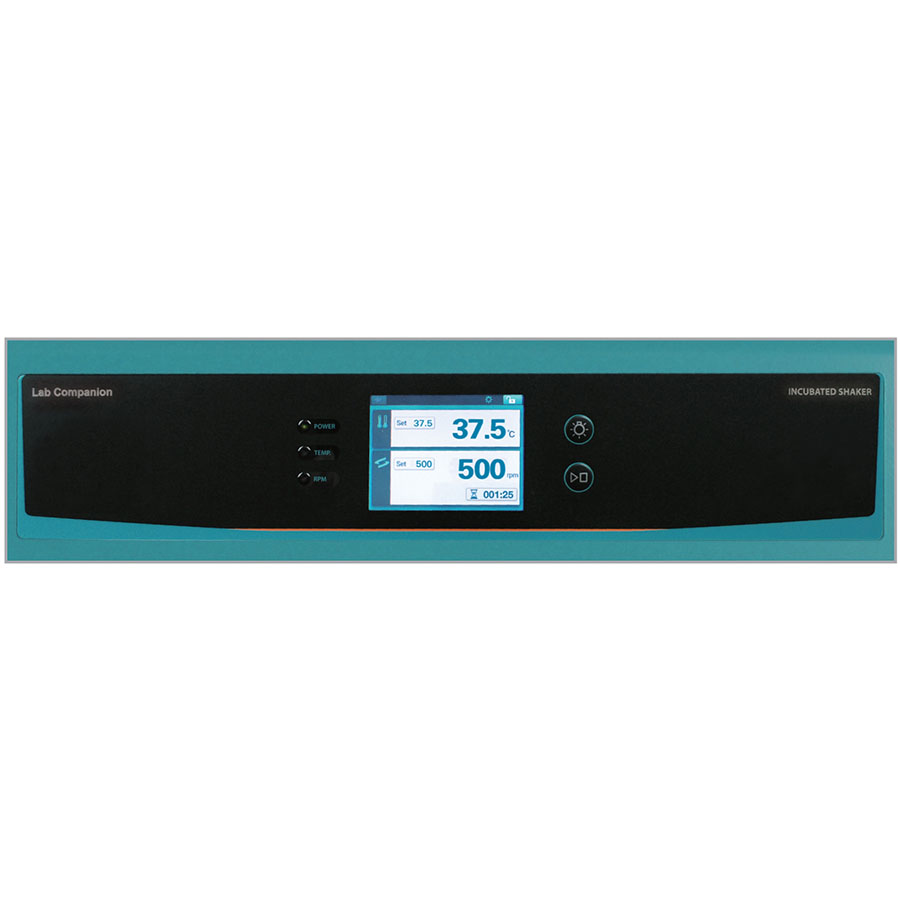

• Intuitive touch screen LCD controller with easy icons and logical menus
• Easy-set digital timer for shaking operation. (1 min. to 999 hr. 59 min.)
• Wide sample monitoring and convenient sample loading
• Convenient sample monitoring without affecting the inside environment
• Three-side transparent acrylic lid with bright LED lamps
• Gas Spring lid supports providing smooth motion, soft opening and closing
• Stopping the shaking platform always at the same position is highly beneficial for automated dosing or sampling process
• Repetitive tasks can be easily performed as the platform stops where it starts
• Corrosion-resistant stainless steel interior
• Built-in RS-232 port and USB port for external control and data collection
• Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection (when purchased LC GreenBox)
• Integrated with 21 CFR Part 11-compliant LC DataKeeper, suitable for GMP audits (option)
• Safety
• Automatic run after power interruption
• Temperature and shaking speed deviation alarm
• Over-current protection, Stalled platform check
• Mechanical over-temperature protection device
• Environment-friendly CFC-free refrigerant (for IST-3075R / 4075R)
• Audible and visible open door alarms

Specifications


Model	IST-3075 Tabletop	IST-3075R Tabletop	IST-4075 Tabletop	IST-4075R Tabletop
Item #	AAH23465U	AAH23565U	AAH23665U	AAH23765U
Temp. Range	Amb. 9 to 176ºF | 5 to 80ºC	Amb. -27 to 176ºF | -15 to 80ºC	Amb. 9 to 176ºF | 5 to 80ºC	Amb. -27 to 176ºF | -15 to 80ºC
Fluctuation	0.18ºF | 0.1ºC at 37ºC in Flask
Variation	0.90ºF | 0.5ºC at 37ºC in Flask
Refrigerator (Hp)	N/A	1 / 6 HBP	N/A	1 / 6 HBP
Shaking Motion	Orbital
Amplitude Size	0.75 In. | 19.1. mm
Speed Range	20 to 500 RPM
Shaking Accuracy	±1% of set speed (>100rpm) / ±1 (≤100rpm)
Timer	1 min. to 999 hr 59 min.
Max. Shaking Load	10 / 22.0 at 500 rpm15 / 33.1 at 400 rpm		14 / 30.9 at 500 rpm21 / 46.3 at 400 rpm
Volume	53 L | 1.9 Cu. Ft.		83 L | 2.9 Ct. Ft.
Platform Dimensions (W x D)	13.8×13.8 In. | 350×350 mm		17.7×17.7 In. | 450×450 mm
Interior Dimensions (W x D x H)	16.1×16.1×12.6 In. | 410×410×320 mm		20.1×20.1×12.6 In. | 510×510×320 mm
Exterior Dimensions (W x D x H)	17.3x30.9x20.1 In. | 440x785x510 mm		21.3x35x20.1 In. | 540x 890 x510 mm
Net Weight	143.3 lb | 143.3 kg	160.9 lb | 73 kg	178.6 lb | 81 kg	198.4 lb | 90 kg
Electrical Requirements	(120V) 60Hz, 7.5A	(120V) 60Hz, 10.1A	(120V) 60Hz, 7.5A	(120V) 60Hz, 10.1A
