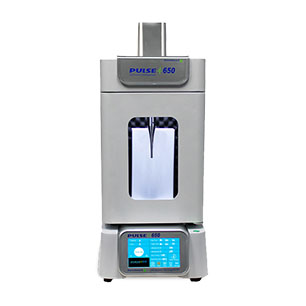

Pulse 650™ Ultrasonic Homogenizer

Item #: ASPULSE650

Specifications

Power 6.5 - 650 W continuously adjustable
Frequency 20 - 25 KHz
Cycle Time (pulse on/off) 0.1 - 99.9 sec
Timer 1 sec - 99 hours:59 min:59 sec
Duty Cycle 0.1 - 99.9%
Volume* 0.1 - 500 mL
Program Memory 20 programs
Display/Control 7 inch full color touch screen
Horn 6 mm titanium
(2, 4, 8, 10, 12 mm available)
Alarms No load/over load/end of run/over temperature
Controller W x D x H 13.4 x 16.5 x 6.6 in.
34 x 42.7 x 16.8 cm
Controller Weight 24.2 lbs/11 kg

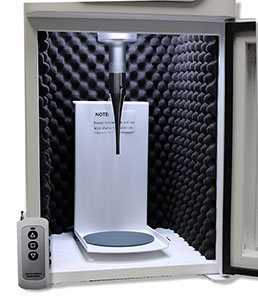

Soundproof Enclosure
(W x D x H)		 13 x 13 x 20.5 in.
32 x 32 x 52 cm
Soundproof Enclosure Weight 24.2 lbs/11 kg
Electrical 120 V or 230 V 50-60 Hz
Warranty 2 years

*Volume dependent upon the installed horn. Supplied with 6 mm horn for volumes 10 - 100 mL.



Item # DP0150-2 DP0150-3 DP0150-6 DP0150-8 DP0150-10 DP0150-12
Horn size 2 mm 3 mm 6 mm* 8 mm 10 mm 12 mm
Process Capacity 0.1 - 5 mL 3 - 10 mL 10 - 100 mL 20 - 200 mL 30 - 300 mL 50 - 500 mL
Power Ratio 1 - 40% 1 - 50% 1 - 70% 1 - 80% 1 - 90% 20 - 95%

*Supplied with Pulse 650



VCX130


VCX130 Ultrasonic Processor



The VCX 130 is a 130-watt, programmable ultrasonic processor, and a most popular small-volume system. This model offers the same programmability as larger VCX versions.

  • Programmable
  • Pulse mode
  • 10-hour timer
  • Variable power output
  • Wattage and Energy display

Processing Volume is 200 μL–150 mL*

The 1/4" probe (10 – 50 mL volumes) is included with the VCX 130 and a variety of accessories are available for various applications and sample volumes.
Part No. VCX 130A can be used to order the system without the standard probe.

*The actual processing volume of a specific probe or accessory is application-specific.





Specifications
Power Output130 watt maximum
Frequency20kHz
Dimensions H x W x D4.5 x 9.75 x 12.5 in.
(115 x 250 x 320mm)
Weight7 lbs.
Warranty3 years
Converter CablePermanently attached
Cable Length5 ft. (1.5m)



SKU Number Description Probe size Compatible With Price Quantity Add to Cart
DP0650 Homogenizer w/ horn & soundproof box, 120V 6mm dia. --
6644.00
Each
DP0650-E Homogenizer w/ horn & soundproof box, 230V 6mm dia. --
6644.00
Each

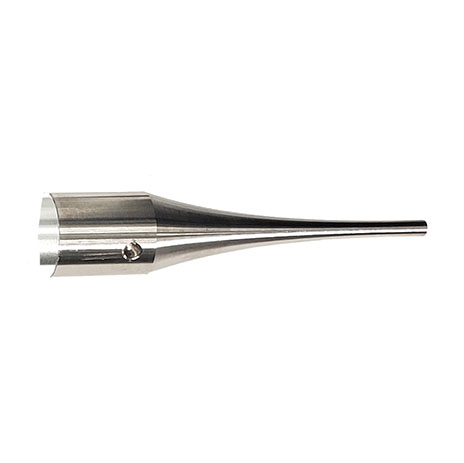

DP0150-2 Horn, for 0.1-5mL 2mm dia. fits DP0150 & DP0650
376.00
Each
DP0150-3 Horn, for 3-10mL 3mm dia. fits DP0150 & DP0650
376.00
Each
DP0150-6 Horn, for 10-100mL 6mm dia. fits DP0150 & DP0650
376.00
Each
DP0150-8 Horn, for 25-150mL 8mm dia. fits DP0150 & DP0650
376.00
Each
DP0150-10 Horn, for 30-300mL 10mm dia. fits DP0650 only
376.00
Each
DP0150-12 Horn, for 50-500mL 12mm dia. fits DP0650 only
376.00
Each
Pulse 650
Pulse 650™ Ultrasonic Homogenizer
Special Order
Quantity:
