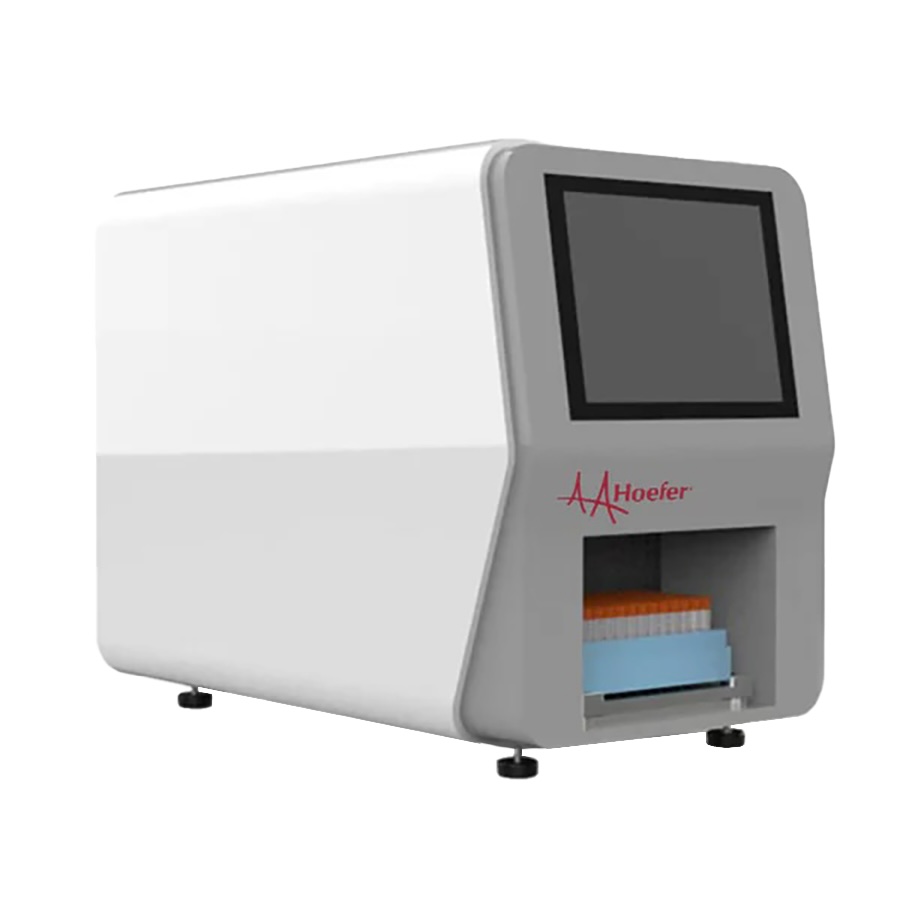

Hoefer® AutoLaser Marking Machine

• Laser-etch tri-code sample tubes with a maximum of 1200 tubes per hour, user-defined with their own information
• Customize the code using characters, numbers, letters, barcodes, 2D codes, graphics, etc
• Laser-etched code with high contrast and readability, simply recognized with a Hoefer® Barcode Reader.

Open communication interface for integrating into existing software. Data can be imported externally without manual input. Compatible with the entire suite of Hoefer® sample storage tubes. Simplify the sample handling process by solving issues of paper labels that are prone to contamination, not waterproof, and fall off at low temperatures

Specifications


Dimensions (D x W x H)	19.09 x 22.44 x 25.59 In. 485 × 570 × 650 mm
Unit Weight	158.73 lb | 72 kg
Optical Parameters	Marking range
Marking Line Width	0.06 mm (depend on the material)
Min. Character Height	0.2 mm
Cooling System	Forced air cooling
Controlling Unit	I5-6200 main board, 4G Memory, 128G drive, touch screen
Operating environment	1.5KW/AC220V/50Hz The voltage fluctuation range is ± 5%. If it exceeds the fluctuation range, a voltage regulator device needs to be equipped.
Grounding	Class D [grounding resistance 100 or less]
Ambient Temp.	10 ~ 35°C
Ambient humidity	≤ 90%
Vibrate	0.98m/s2 {0.1G} or less, 10~60Hz. During transportation: 4.9 m/s2 {0.5G} or less.
Dust	Less 0.20 mg/m3
Mist	Not allow
Condensation	Not allow
