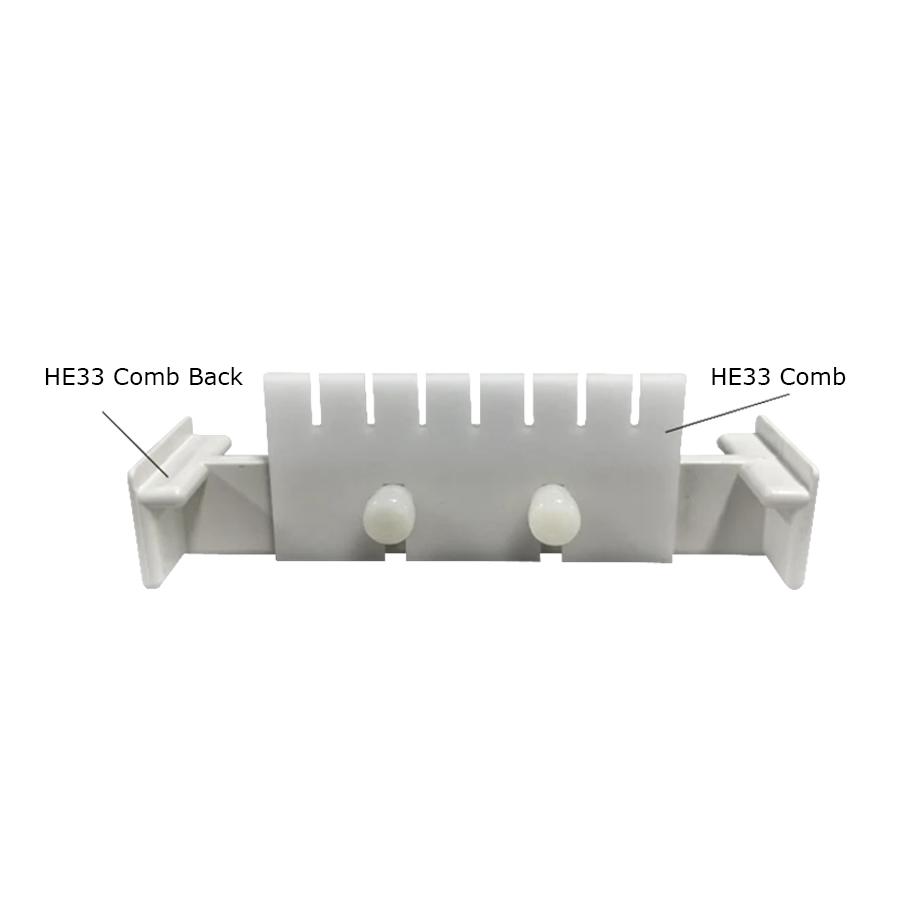

Hoefer® Combs for HE33 Mini Horizontal Agarose Systems

Available in multiple tooth configurations and thicknesses to suit various sample volumes and well sizes. Hoefer® combs ensure sharp, consistent, well formation for accurate, reproducible results.

• All combs require HE31-BK comb back ordered separately
• Preparative combs have 1 preparative well and 2 reference wells
• Sample volume listed is for a 5 mm deep well
• For use with HE33 Mini Horizontal Agarose Systems

Specifications


Item #	Type	Wells	Teeth	Thickness	Width	Sample Vol.
HE31A-P-10	HE33 Comb	1/2 Wells	1/2 Teeth	1 mm	44/6 mm	235/35 uL
HE31A-P-15	HE33 Comb	1/2 Wells	1/2 Teeth	1.5 mm	44/6 mm	255/50 uL
HE31A-8-10	HE33 Comb	8 Wells	8 Teeth	1 mm	6.5 mm	32.5 uL
HE31A-8-15	HE33 Comb	8 Wells	8 Teeth	1.5 mm	6.5 mm	48.5 uL
HE31A-12-10	HE33 Comb	12 Wells	12 Teeth	1 mm	3.9 mm	19.5 uL
HE31A-12-15	HE33 Comb	12 Wells	12 Teeth	1.5 mm	3.9 mm	30.5 uL
HE31A-16-10	HE33 Comb	16 Wells	16 Teeth	1 mm	2.6 mm	13 uL
HE31A-16-15	HE33 Comb	16 Wells	16 Teeth	1.5 mm	2.6 mm	2.6 uL
HE31-BK	HE33 Comb Back and Two Screws
