5 Prime G gradient thermal cycler

Discontinued, Contact us for more options!
Item #: ASPCRTC6

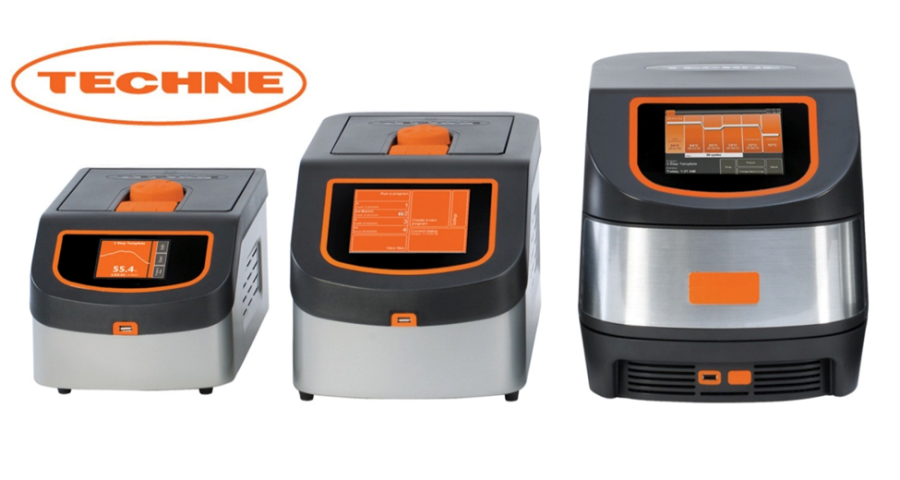

3 PRIME Base thermal cycl


Please know that the manufacturer has suspended manufacturing this product indefinitely.
Contact your trusted MIDSCI Lab Consultant
or email tech@midsci.com for more information.




PRIME G (gradient) Thermal Cycler

  • Colour touchscreen for fast program setup
  • Small space-saving footprint
  • Temp Range 4°C to 100°C
  • Fast ramp rate of up to 3.0°C/sec
  • Larger block sizes; 48 x 0.2ml, 30 x 0.5ml and half a 96 well plate in horizontal format.
  • Gradient can be applied across a Temp Range of 30°C to 80°C
  • Maximum Gradient 30°C
  • Gradient calculator function
  • Data transfer via USB
  • 4 year warranty

The 3 PRIME G is a small gradient thermal cycler that builds on all the features of the 3 PRIME X instrument. The 48 well block format offers eight columns for annealing temperature optimisation and six rows for optimising reagents such as MgCl2 and primer concentrations. Annealing temperatures can be optimised over 30oC between temperatures 30°C to 80°C. The gradient calculator function displays the temperature for each of the eight columns, ensuring easy replication of thermal conditions.


Technical Specification


Sample capacity: 0.2ml

48

Sample capacity: 0.5ml

30

Maximum heating rate

3.0°C/s

Block Temp Range

4 °C to 100°C

Block uniformity at 50°C

<±0.3°C

Temperature accuracy at 50°C

<±0.2°C

Gradient Range

30°C to 80°C

Maximum Gradient

30°C

Minimum Gradient

1°C

Type

4 peltier element/block

Maximum cooling rate

2.1°C/s

Selectable heated lid temperature

100 °C to 115°C or off

Heated Lid pressure

Adjustable, dependent on consumables

Program interface

3.5" VGA colour touchscreen with graphical display

Maximum number of programs stored

1000

Data transfer

USB port

Auto re-start on power failure

Yes

Dimensions (L x W x H)

350 x 210 x 180mm

Weight

6kg

Voltage

100-230V, 50-60Hz

Power

155W
SKU Number Type # of Samples Price Quantity Add to Cart
5PRIMEG02 Thermal cycler 96 x 0.2mL
6702.00
Each
  Item is no longer available.
5PRIMEG05 Thermal cycler 60 x 0.5mL
6753.00
Each
  Item is no longer available.
5PRIMEG384 Thermal cycler 384 wells
6794.00
Each
  Item is no longer available.
