Jeio Tech Shaking Heating Baths

Item #: ASLCSHKBATHS

Warranty

2-Year: Parts and Labor



Shaking Heating Baths


Jeio Tech Shaking Heating Baths

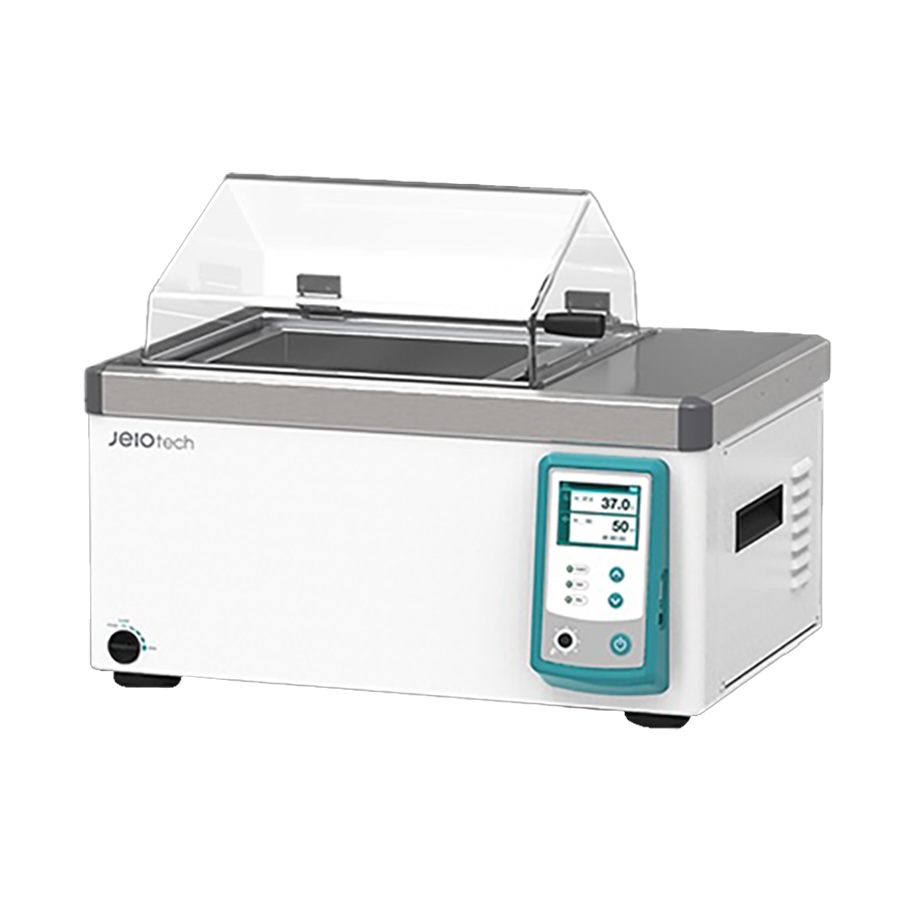

Reciprocal shaking heating bath with transparent cover.



Jeio Tech Shaking Heating Baths are ideal for sample incubation conditions for DNA, tissue culture, and heat-sensitive samples. Each unit includes 1 spring wire rack.


Performance Attributes

  • Temperature range from ambient +5°C to 100°C (amb. +9°F to 212°F)
  • Precise rpm (Max 200 rpm) and temperature (Max 100°C) control with accuracy
  • Excellent temperature distribution by shaking motion. (50°C ±0.1°C)
  • Better performance with 3-point temperature calibration and 1-point shaking calibration
  • Optimal PID control for the Bath
  • Bath structure for a smooth water circulation flow
  • Extended height for larger sample volumes. (maximum 2.8 L of flasks)

Convenience Attributes

  • Automatic On/Off timer. (up to a maximum of 999 hours and 59 minutes)
  • Easy operation with a touch color display
  • Drain port of better accessibility located on the side
  • USB port to connect to PC for recording and monitoring
  • Transparent gable roof-shaped cover prevents condensed water from falling onto the specimen
  • Corrosion-resistant spring wire rack (1ea) is provided. (Standard)
  • Real-time temperature and rpm control via mobile monitoring system. (Option)

Safety Attributes

  • Audio and visual alarms and heater shutdown in case of water shortage
  • Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor
  • Over-current and short circuit protection of device

Specifications

ModelBS2-10BS2-15
Item #AAH44103UAAH44153U
Bath Vol.17 L |  0.6 Cu. Ft.26 L | 0.9 Cu. Ft.
Working Temp. RangeAmb. +9 to 212ºF | Amb. +5 to 100ºC
Temp. Stability at 50ºC±0.18ºF | ±0.1ºC
Shaking Motion TypeReciprocal
Shaking Frequency30 to 200 rpm
Shaking Stroke Length0.98 In. | 25 mm
Dimensions23.5 × 16.4 × 16.8 In. |
Bath Opening (W x L)5.6 x 10.6 In. | 143 x 269 mm10.4 x 10.6 In. | 263 x 269 mm
Bath Depth7.6 In. | 192 mm7.6 In. | 192 mm
Exterior Dimension (W x L x H)18.7 x 16.4 x 16.8 In. | 474 x 417 x 426 mm23.5 x 16.4 x 16.8 In. | 594 x 417 x 426 mm
Weight60 lbs | 27.22 kg
Electrical Requirements7.1 (120V, 60Hz, A)8.8 (120V, 60Hz, A)
Warranty2-Year: Parts and Labor

*The lowest temperature that can be controlled depends on changes in room temperature and sample temperature. Therefore, please contact the distributor for technical consultation.
*Technical data according to DIN 12876.
*Bath fluid: Water
Dry Bath PLUS Series
Item#:
ASDRYBATH1

Heating Bath Circulator
Item#:
ASH2OBATHS3

Bath Circulators
Item#:
ASH2OBATHS4

SKU Number Type Capacity Price Quantity Add to Cart
AAH44103U BS2-10 Shaking Bath 17 L, 0.9 Cu. Ft.
3848.00
Each
AAH44153U BS2-15 Shaking Bath 26 L, 0.6 Cu. Ft.
3997.00
Each
AAA44521 Universal Platform For Model BS2-10
268.00
Each
AAA44522 Universal Platform For Model BS2-15
349.00
Each
AAA44581 Test Tube Rack 86 x 8 mm Diameter Tubes
379.00
Each
AAA44582 Test Tube Rack 86 x 10 mm Diameter Tubes
379.00
Each
AAA44583 Test Tube Rack 58 x 12 mm Diameter Tubes
379.00
Each
AAA44585 Test Tube Rack 32 x 16 mm Diameter Tubes
379.00
Each
AAA44586 Test Tube Rack 19 x 25 mm Diameter Tubes
379.00
Each
AAA23551 Flask Clamp 100 mL Erlen. Flask
20.00
Each
AAA23552 Flask Clamp 250 mL Erlen. Flask
26.00
Each
AAA23553 Flask Clamp 500 mL Erlen. Flask
35.00
Each
AAA23556 Flask Clamp 300 mL Erlen. Flask
26.00
Each
