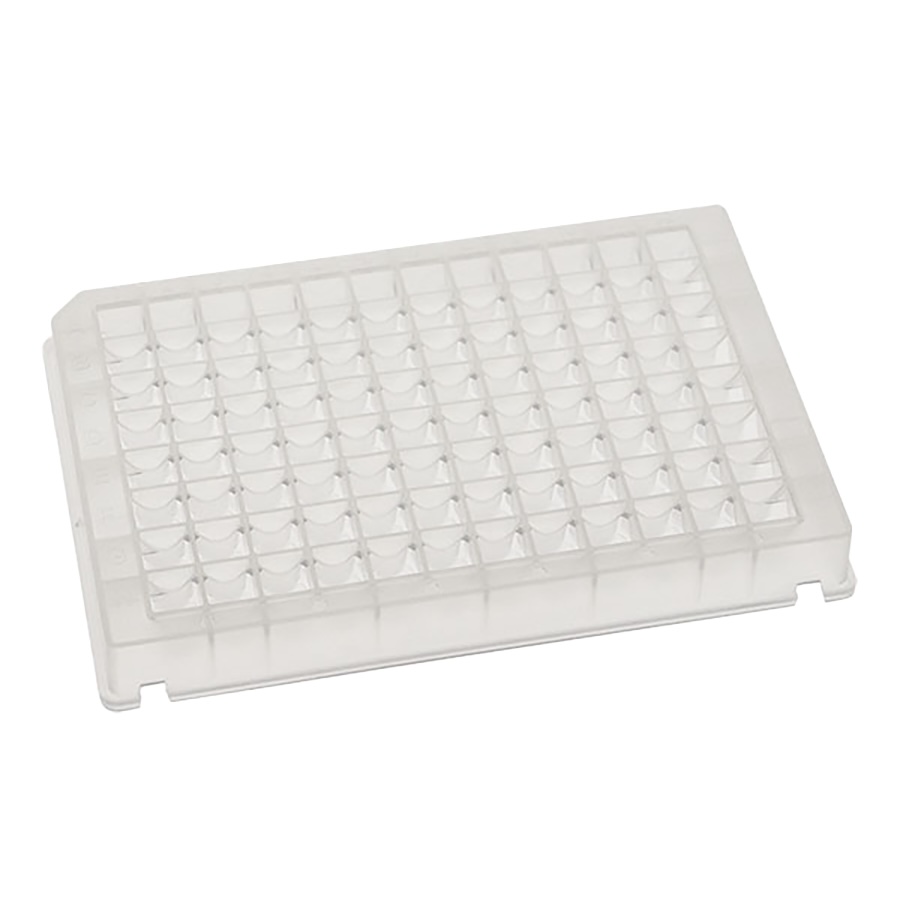

ILP MicroPlates - KingFisher™ Compatible

Item #: ASILPKFPLTS

Specifications

Plate Micro Plate Deep Well Plate
Number of Wells 96
Number of Plugs 96
Plug Shape Round – V Conical – V
Well Shape Top Square
Well Shape Bottom Round – V
Material USP Class VI Polypropylene
Color Natural
Alphanumeric Molded in
Compliance ANSI/SBS 6-2012
Surface Treatment None
Certified DNase-/RNase-/Pyrogen-Free
Overall Height 15.10 mm 44.00 mm
Well Depth 13.30 mm 39.00 mm
Overall Length 127.50 mm
Width 85.35 mm 85.40 mm
Well Diameter Bottom 6.62 mm
Well Diameter Top 8.20 x 8.20 mm
Well Bottom To Deck 1.80 mm
Max Vol. 350 uL 2.2 mL
Working Volume 250 uL 1.0 mL
Vol. w/ Mat Lid 200 uL 1.0 mL
Plug Depth 13.30 mm 41.55 mm
Plug Diameter 6.62 mm
Autoclavable 121ºC at 15 psi, 15 min.
Max RCF 4,000 RCF
Temp. Range -80 to 120ºC (-112 to 248ºF)
Case Dimensions 6 x 10.75 x 17.75 In. | 152.4 x 273.05 x 450.85 mm 9.5 x 10.75 x 17.75 In. | 241.3 x 273.05 x 450.85 mm
Case Weight 4.5 lb | 2.04 kg 11.2 lb | 5.08 kg





Glass Plates


Hoefer® Standard Format Glass Plates for Vertical Systems



Standard format glass plates are for SE660, SE600X Chroma, SE600, SE640, SE410, and SE400 Vertical Gel Electrophoresis Units.



Run as many as four 0.75, 1.0, or 1.5 mm thick gels on SE600 Series units and two gels on the SE400 Series at one time under identical conditions using the double gel capacity Divider Plates. Insert a divider plate between the glass plates that make up a single gel sandwich. Place spacers on each side of the divider plate to form two gel cavities for pouring gels. This two gel “club sandwich” fits into the same casting stand and seals perfectly.


Hoefer® PlateMate™ Glass Plate Washer and Storage Kit



Dramatically reduces glass plate loss due to chipping and cracking. Each holder can hold either ten 18 cm wide plates in the long direction or twenty 8 cm wide plates in the short direction. The adaptor can be placed in three different slots, labeled to refer to the length of the plates: 8, 10, or 12 cm.

  • Glass plates fit securely into the plate holders' grooves for safe washing, rinsing, and storage
  • Stainless steel handles let you carry plate holders easily and set them safely into the washing bath
  • Accommodates forty 8 cm tall or twenty 18 cm wide plates
  • Holds as many as twenty 10.5 cm tall plates with the optional SE103 long plate adapter accessory

Includes

  • Polypropylene Washing Tank, 1/ea
  • Plate Holders with Handles and Dust Cover, 2 sets
  • Long Plate Adapters, 2/pk
  • Holders and Adapters, 1/ea

Each holder can support either ten SE600 series glass plates in the long direction or twenty SE250 glass plates in the short direction. An optional adapter (included in the PlateMate™ Washer and Storage Kit) is available to enable each holder to accept ten SE260 or miniVE glass plates.



Liquid Capacity of Tank

  • 5 liters to cover 10 x 8 cm and/or 10 x 10.5 cm plates (for the SE250, SE260, or miniVE).

Proudly made in the USA! Click here for more made in America products!
Glass and Alumina Plates
Item#:
ASHOFRGAPLTS

Mighty Small Precast Gels
Item#:
ASHOFRPCGEL

SKU Number Description Volume Color Sterility Qty Price Quantity Add to Cart
KF05US-9-NS 96 Sq. Well, 15.10mm Ht., V-Bottom 0.2 mL Natural Sterile [PP] 5/pk, 10/pks/cs
270.00
Each
KF05US-9-N 96 Sq. Well, 15.10mm Ht., V-Bottom 0.2 mL Natural Non-Sterile [PP] 5/pk, 10/pks/cs
218.00
Each
KF05AX-96-N 96 Sq. Well, 15.10mm Ht., V-Bottom, Barcode 0.2 mL Natural Non-Sterile [PP] 5/pk, 10/pks/cs
242.00
Each

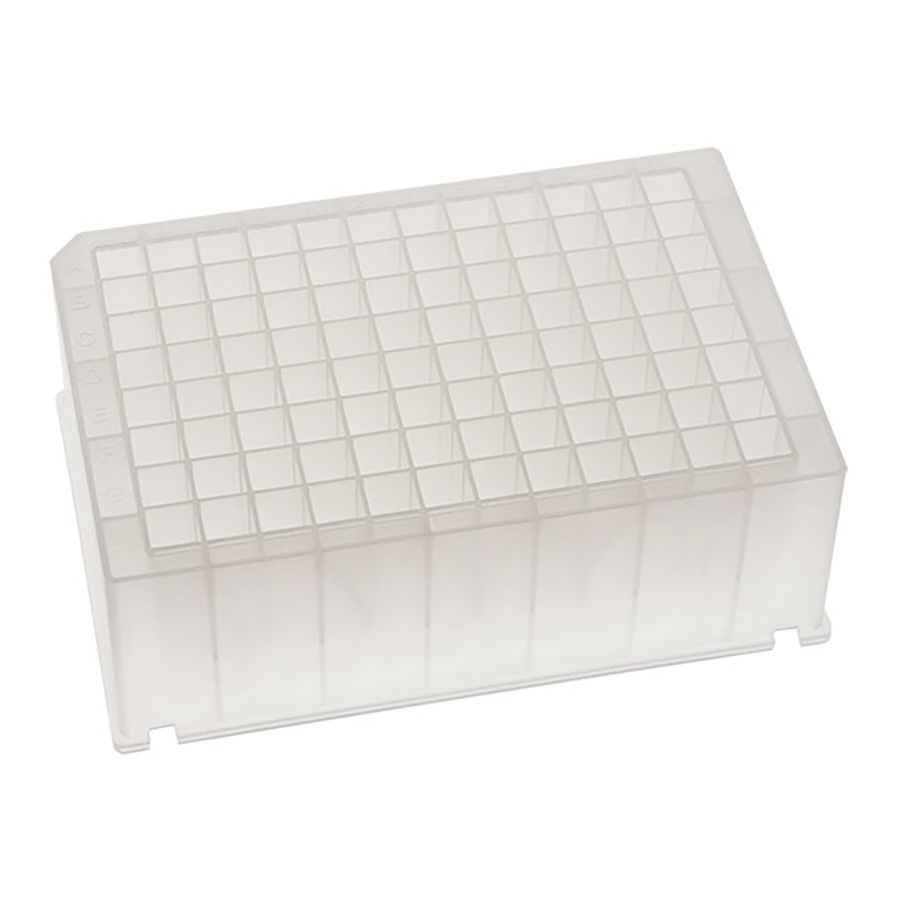

KF22US-9-NS 96 Sq. Well, 41.60mm Ht., V-Bottom 2.2 mL Natural Sterile [PP] 5/pk, 10/pks/cs
258.00
Each
KF22US-9-N 96 Sq. Well, 41.60mm Ht., V-Bottom 2.2 mL Natural Non-Sterile [PP] 5/pk, 10/pks/cs
236.00
Each
KF22AX-96-N 96 Sq. Well, 41.60mm Ht., V-Bottom, Barcode 2.2 mL Natural Non-Sterile [PP] 5/pk, 10/pks/cs
335.00
Each
KF Plates
ILP MicroPlates - KingFisher™ Compatible
