Hoefer® Submarine Gel Electrophoresis Systems

Item #: ASHOFRSUBES

Specifications

Item # SUB6 SUB10 SUB13 SUB15 SUBHT SUB20 SUB20C SUB25 SUB25C
Gel Dims (W x L) 2.36 x 2.95 In.
6 x 7.5 cm		 3.94 x 4.53 In.
10 x 11.5 cm		 2.04 x 5.91 In.
12.8 x 15 cm		 5.91 x 5.91 In.
15 x 15 cm		 7.87 x 7.87 In.
20 x 20 cm		 9.84 x 11.81 In.
25 x 30 cm
Max. Buffer Vol. 325 mL  450 mL  900 mL  1.2 L  2.2 L  3 L
Max. Power 300 V, 200 mA, 60 W  1000 V, 500 mA, 500 W
Max. Capacity 32 Samples  80 Samples  112 Samples  120 Samples  120 Samples  160 Samples  160 Samples  624 Samples  624 Samples
Max. Running Temp. 113ºF | 45°C
Indoor Use 39.2 to 104ºF | 4 to 40°C
Humidity Up to 80%
Dims
(D x W x H)		 9.44 x 5.12 x 2.56 In.
24 x 13 x 6.5 cm		 9.06 x 6.50 x 2.56 In.
23 x 16.5 x 6.5 cm		 12.60 x 7.87 x 2.76 In.
32 x 20 x 7 cm		 13.19 x 8.46 x 2.76 In.
33.5 x 21.5 x 7 cm		 18.70 x 10.63 x 3.15 In.
47.5 x 27 x 8 cm		 22.05 x 13.78 x 3.54 In.
56 x 35 x 9 cm
Weight 3.31 lb | 1.50 kg 3.75 lb | 1.70 kg 5.95 lb | 2.70 kg 6.39 lb | 2.90 kg 6.48 lb | 2.94 kg N/A 15.87 lb | 7.20 kg



Horizontal Gel System, 15

Horizontal Gel System, 15cmW x 25cmL


Galileo large gel systems are designed for high resolution of complex analytes. All units feature long run lengths, with medium to high capacity units available. High quality 9mm thick rugged acrylic construction, resists cracking and warping.

Your safety ensured with interlocking lid, protected sockets and permanently attached power cords. Epoxy sealed electrode connections, resist corrosion and leaks. Gold plated banana plugs.
Meets or exceeds IEC1010-1 standards. Safe & Reliable UV transmissible gel trays with built-in fluorescent rulers.

Large units feature trays with multiple comb slots for veratility. Machined finger grooves on the tray sides for easy and sure handling. Wide range of comb configurations, including multi-channel capability. Selected units available with buffer recirculation capabilities. Combs specifications clearly marked on each comb. Optional casting methods for flexibility, convenience and speed.

Convenient & Versatile

  • Exceptional resolution.
  • Platinum electrodes configured to provide uniform field for straight runs.
  • Multiple comb slot options for a wide range of sample and run-length configurations.
SKU Number Type Size Teeth Thickness Qty Price Quantity Add to Cart
SUB6 Mini 6 x 7.5 cm 8 Wells 1 mm 1/ea
470.00
Each

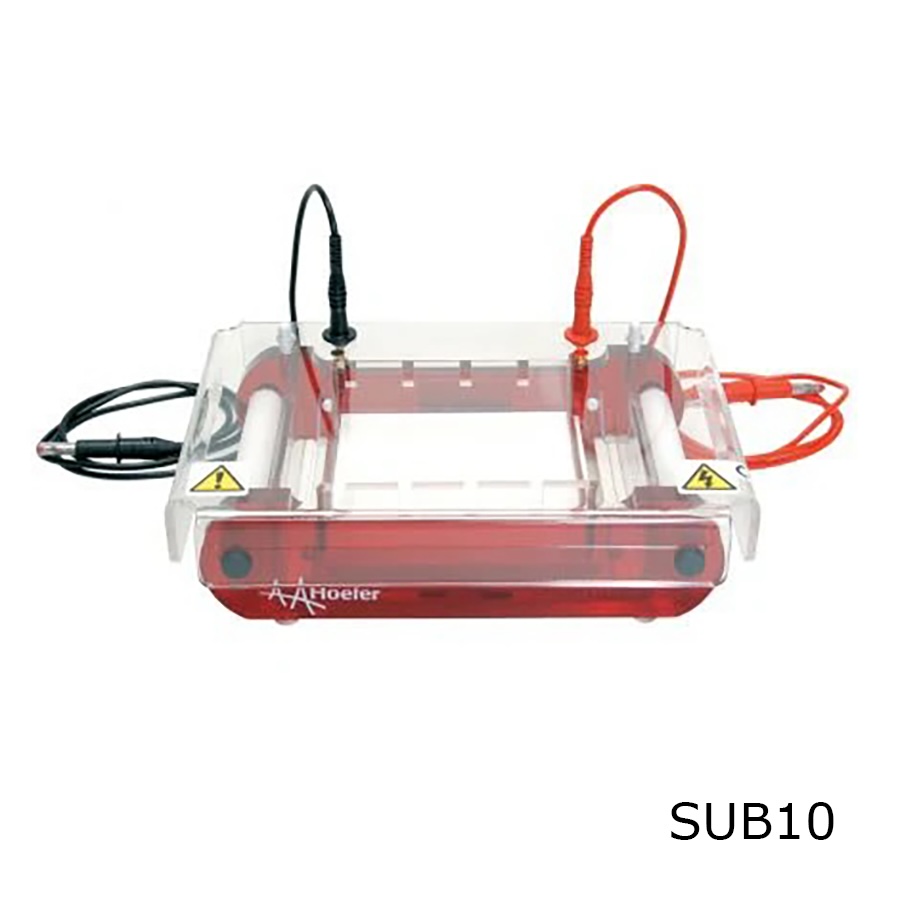

SUB10 Mini-Plus 10 x 11.5 cm 16 Wells 1 mm 1/ea
610.00
Each
SUB13 Midi 12.8 x 15 cm 16 Wells 1 mm 1/ea
650.00
Each

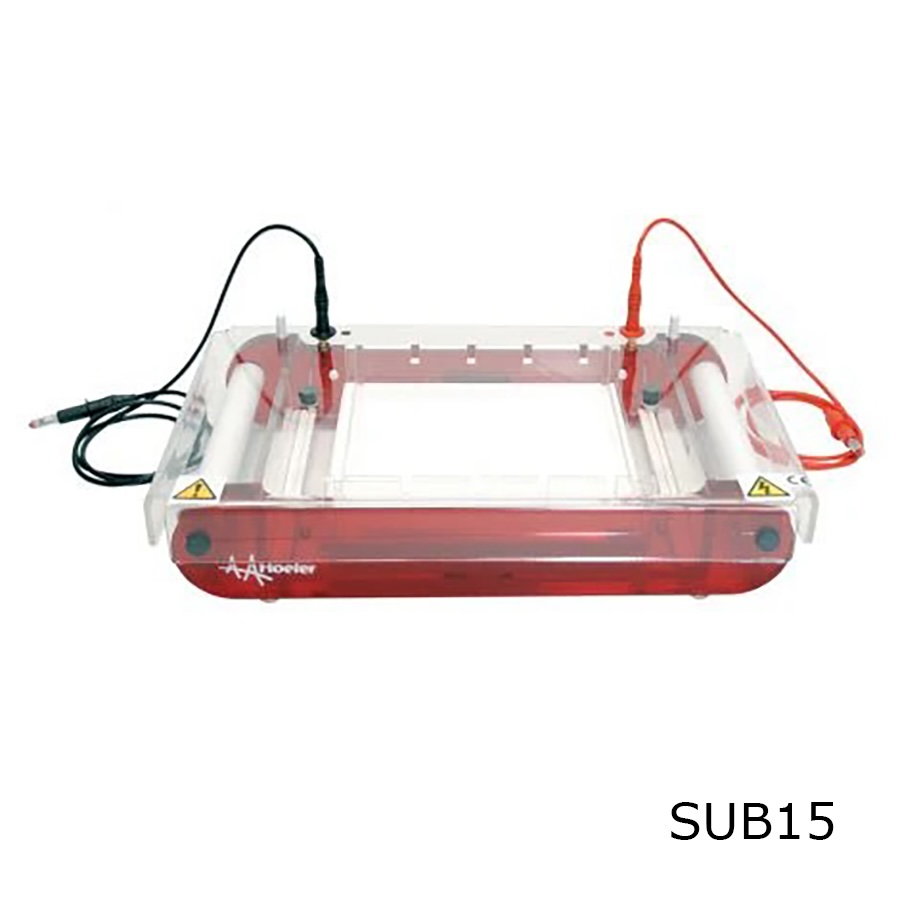

SUB15 Standard 15 x 15 cm 1 to 30 wells 1 mm 1/ea
760.00
Each

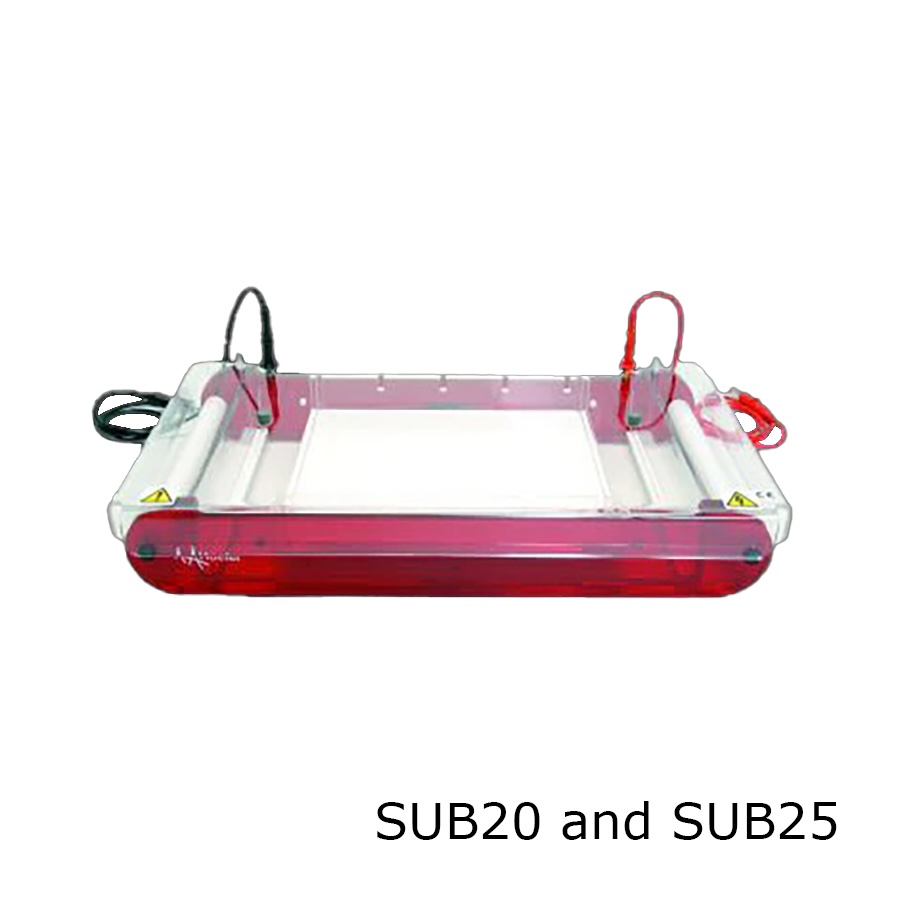

SUB20 Maxi-Standard 20 x 20 cm 16 Wells (Max 40) 1 mm 1/ea
1100.00
Each

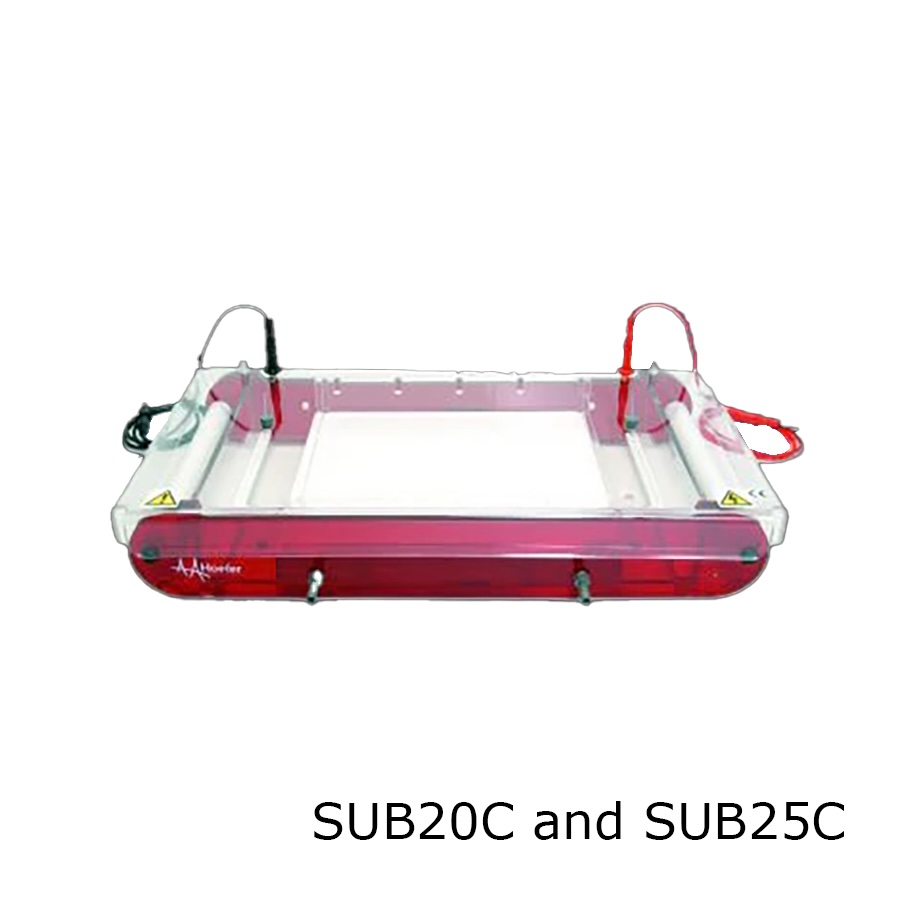

SUB20C Maxi-Cooled 20 x 20 cm 16 Wells (Max 40) 1 mm 1/ea
1300.00
Each
SUB25 Maxi-Plus 25 x 30 cm 26 Wells (Max 52) 1 mm 1/ea
1200.00
Each
SUB25C Maxi-Plus Cooled 25 x 30 cm 26 Wells (Max 52) 1 mm 1/ea
1400.00
Each

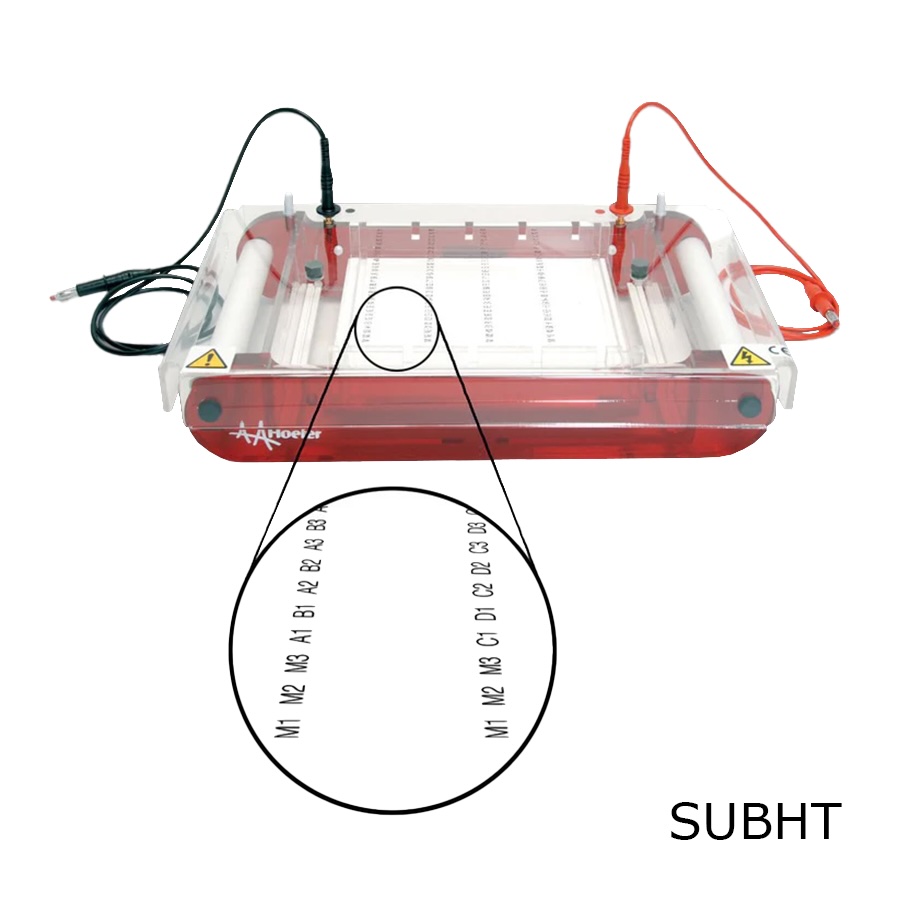

SUBHT High Throughput 15 x 15 cm 30 Wells 1 mm 1/ea
800.00
Each

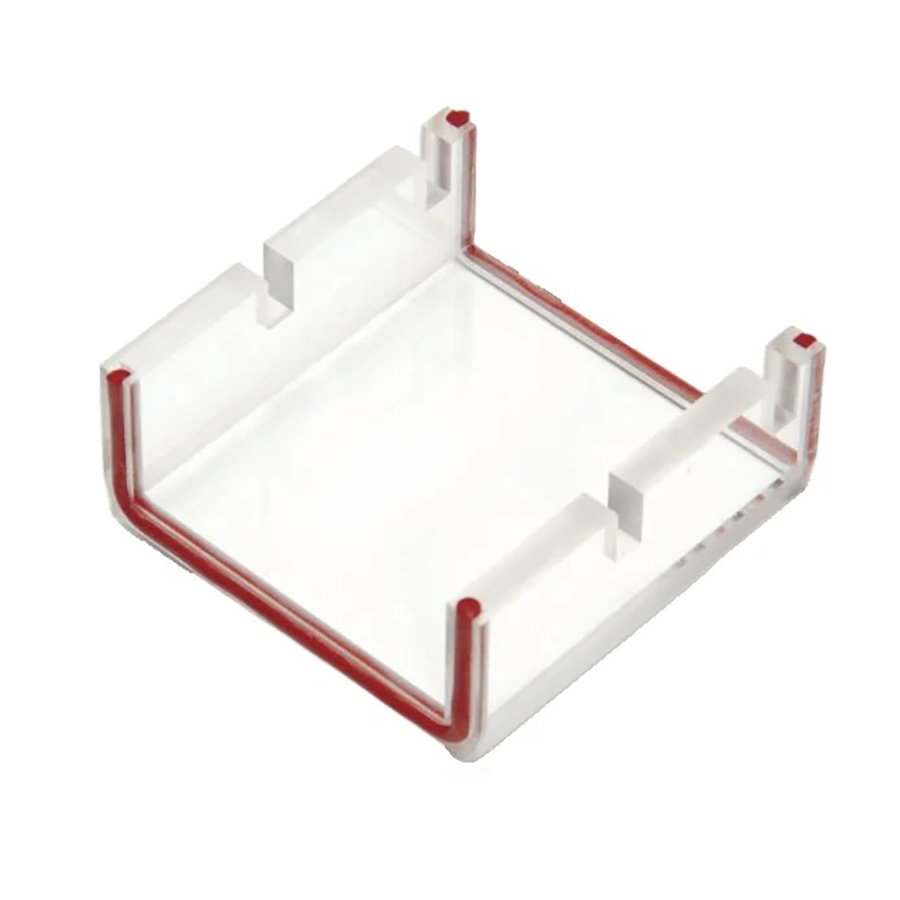

SUB6-UT Running Tray w/ Gasket 6 x 7.5 cm For SUB6 Mini N/A 1/ea
93.00
Each
SUB10-UT Running Tray w/ Gasket 10 x 11.5 cm For SUB10 Mini+ N/A 1/ea
123.00
Each

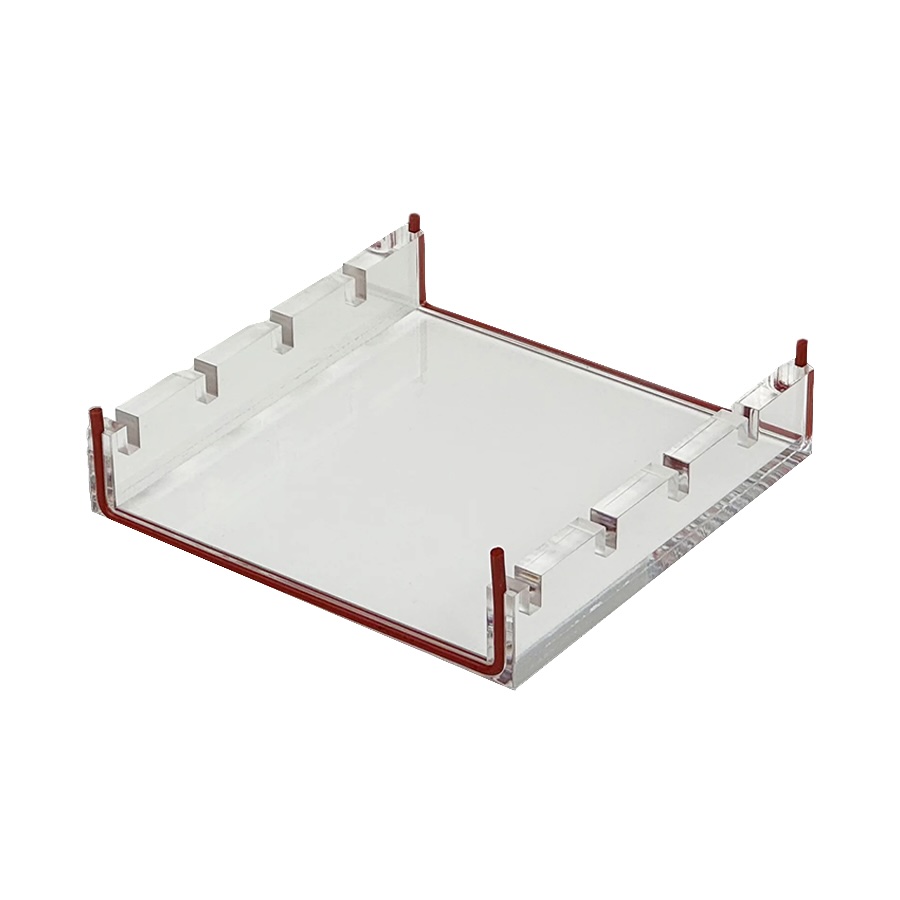

SUB13-UT Running Tray w/ Gasket 12.8 x 15 cm For SUB13 Midi N/A 1/ea
162.00
Each
SUB15-UT Running Tray w/ Gasket 15 x 15 cm For SUB15 Std. N/A 1/ea
184.00
Each
SUB20-UT Running Tray w/ Gates 20 x 20 cm For SUB20 and SUB20C N/A 1/ea
220.00
Each
SUB25-UT Running Tray w/ Gates 25 x 30 cm For SUB25 and SUB25C N/A 1/ea
457.00
Each
SUBHT-UT Labeled Running Tray w/ Gates 15 x 15 cm For SUBHT N/A 1/ea
205.00
Each
SUBHT-LUT Running Tray w/ Gates 15 x 15 cm For SUBHT N/A 1/ea
226.00
Each
