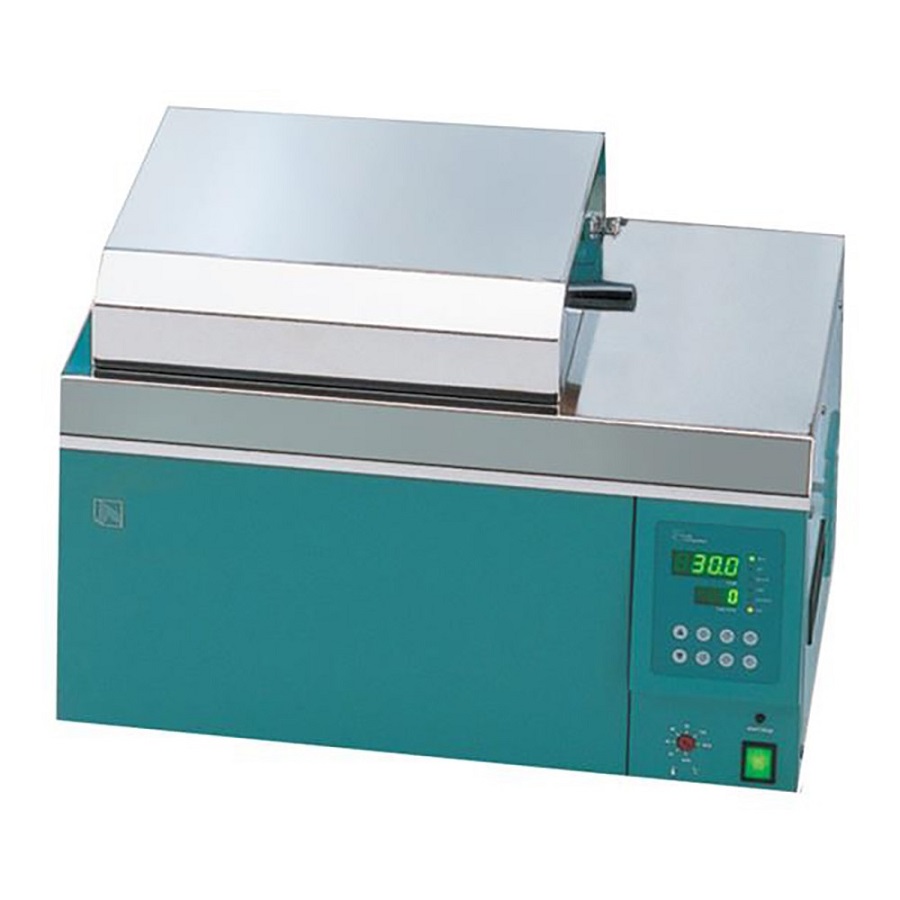

Shaking Water Bath

Operating features for BW-B (Analog models)

• +7°C above room temperature to 100°C

• On /Off temperature control

• Over-temperature limiter, alarm indicator.

• Analog dialed indication with fine adjustment
• 18 months standard; 6 addiitionl months upon receipt of warranty card

  Constructional features

• Low-profile baths with front slope-panel controls provide an easier
  access and makes it safer.

• Additional inner circulating system by equipped agitator
  (BW-H series)

• Dual bath models features individually programmable temperature
  controller chambers. (BW-H series)

• Various accessories gable and flat covers, test tube and spring wire
  racks, half-shelf adjusters etc. (optional)
  * All accessories for dual baths (BW-H series) refer to BW-H/ B series
  accessories options per each bath size.
  (Ex. Each of gable covers for BW-0510H may be used to cover BW-05H / B and
  the other cover for BW-10H / B)



  Model BW-05B BW-10B BW-20B Bath wolume (L/cu ft) 3.5 / 0.1 11.5 / 0.4 20.0 / 0.7 Working Temperature Range (°C/°F) Amb. +7 to 100 / Amb. +12.6 to 212 Temperature Stability(±°C/°F) 0.5 / 0.9 Dimensions Bath opening / depth  (WxL, D) (mm/inch) 240x136/ 115mm 300x240/ 165mm 498x300/ 165mm (9.4x5.4/ 4.5â) (11.8x9.5/ 6.5â) (19.6x11.8/ 6.5â) Overall/  with gabel cover  (WxLxH, H) (mm/inch) 303x242x245/  380mm 357x330x290/  425mm 564x392x290/ 425mm (11.9x9.5x9.6/ 15.0â) (14.1x13.0x11.4/ 16.7â) (22.2x15.4x11.4/ 16.7â) Net weight (kg/lbs) 6.5kg (14.3lb) 10.0kg (22.0lb) 18.5kg (40.8lb) Electrical Requirements  (230V) 60Hz, 3.0A 50Hz, 3.0A 60Hz, 4.3A 50Hz, 4.3A 60Hz, 8.7A 50Hz, 8.7A Cat. No. AAH46011K AAH46012K AAH46021K AAH46022K AAH46031K AAH46032K Electrical Requirements  (120V) 60Hz, 5.8A 60Hz, 8.3A 60Hz, 8.3A Cat. No. AAH46013U AAH46023U AAH46033U

  1) Technical data (according to DIN 12876)
