Home > Equipment > Baths > Dry Baths > Digital Dry Baths

Digital Dry Baths

Item #: ASDIGDRYBATH

Specifications

Item #	DB-01A	DB-02A	DB-03A	DB-04A
Product Name	Programmable Dry Bath	Digital Dry Bath	2-Block Dry Bath	4-Block Dry Bath
Temperature Range	Ambient+5°C ~ 120°C	Ambient+5°C ~ 120°C	Ambient+5°C ~ 120°C	Ambient+5°C ~ 120°C
Temperature Accuracy	±0.1°C	±0.1°C	±0.1°C	±0.1°C
Temperature Stability	@50~100°C: ≤±0.15°C @100.1~120°C: ≤±0.2°C	@50~100°C: ≤±0.15°C @100.1~120°C: ≤±0.2°C	@50~100°C: ≤±0.15°C @100.1~120°C: ≤±0.2°C	@50~100°C: ≤±0.15°C @100.1~120°C: ≤±0.2°C
Temperature Uniformity	@37°C: ±0.3°C	@37°C: ±0.3°C	@37°C: ±0.5°C	@37°C: ±0.5°C
Heat Up Time	20°C to 120°C: ≤15 min	20°C to 120°C: ≤15 min	20°C to 120°C: ≤ 25 min	20°C to 120°C: ≤25min
Timer	0~99hr 59min or Continuous	0~99hr 59min or Continuous	0~99 hr 59 min or Continuous	0~99hr 59min or Continuous
Programmable	6 Segments	6 Segments	6 Segments	6 Segments
Number of Block Chambers	1	1	2	4
Block Chamber Dimensions	4.6 x 3.1 x 1.2 In. 118 x 78 x 31.5 mm	4.6 x 3.1 x 1.2 In. 118 x 78 x 31.5 mm	4.6 x 3.1 x 1.6 In. 118 x 78 x 40 mm	4.6 x 3.1 x 1.6 In. 118 x 78 x 40 mm
Accessory Included in Standard Pkg	1 x DBA05 Insulating Cover	1 x DBA05 Insulating Cover	2 x DBA05 Insulating Cover	4 x DBA05 Insulating Cover
Ambient Temperature	5°C ~ 40°C	5°C ~ 40°C	5°C ~ 40°C	5°C ~ 40°C
Ambient Relative Humidity	≤85%	≤85%	≤85%	≤85%
Power Supply	AC110V±11V, 60Hz	AC110V±11V, 60Hz	AC110V±11 V, 60 Hz	AC110V±11V, 60Hz
Max Power	100W	100W	150 W	300W
Dimensions (W x D x H)	5.8 x 10.3 x 3.9 In. 148 x 261 x 99 mm	5.8 x 10.3 x 3.9 In. 148 x 261 x 99 mm	8.7 x 11.8 x 4.4 In. 220 x 300 x 111 mm	8.7 x 16.9 x 4.4 In. 220 x 430 x 111 mm
Net Weight	2.7 lb \| 1.2 kg	2.7 lb \| 1.2 kg	6.6 lb \| 3 kg	9.9 lb \| 4.5 kg
Protection Level	IP21	IP21	IP21	IP21
Certifications	CE, RoHS, WEEE	CE, RoHS, WEEE	CE, RoHS, WEEE	CE, RoHS, WEEE

3514.29

Each

Quantity:

Quantity	Price
1	3514.29

Lumate Microplate Luminometer

LuMate is a compact microplate glow luminometer. Its streamlined design with minimal footprint offers superb optics to fit any size lab bench. LuMate teams up with your PC to provide full access to high level software for curve fitting, reporting, and data storage to meet the requirements of modern laboratories. Instrument and software come ready to "plug and play" with your PC.

Easy & Automatic

Simply select an assay from the stored menu and load the plate. LuMate automatically reads the plate, precisely measuring and reporting the light output from each well. LuMate runs hormones and many other applications, with on-board calculations for point to point, linear and log regressions, and log logit modes. A built in reference assures continuous calibration.

Specifications

Optical
Detection Mode	Glow Luminescence
Sensitivity/Detection Limit	HRP 1 X 10-18 moles, ALP 1 X 10-21 moles
Linear Dynamic Range	106 RLU
Cross talk	Less than 2.5 X 10-4
Detector	Photomultiplier (PMT)
Spectral Response Range	300-650 nm
Peak Wavelength	400 nm
Vessel	96 wells in strip tray or plate
Electronic
PC connection	USB port
Microprocessor	eZ80
Plate Transport	Stepper motor
Power Requirements	100V-250 AC, 50-60 Hz (auto-sensing)
Software
PC Interface	LuMate Manager Software
Calculation Modes	Multipoint calibration with Regression or Point to Point curve fit with Curve storage option; Relative Light units
Additional Features	User-programmable open system with curve plotting and editing Selectable plate formatting with duplicates and end-reading selections Multiple timed reading options Automatic interpretation options Alphanumeric test naming Flags and error messages
Other
Certifications	NRTL listed, CE marked
Enclosure	All metal enclosure
Dimensions	7.5 X 8 X 16 inches (19 X 20.3 X 42 cm); 11 lbs (5 kg)

lipoGrade 96-Well Immunoassay Plates

Implen NanoPhotometer® NP60 and N50 Spectrometer

AMMEX® Nitrile Powder-Free Gloves

SKU Number	Type	Block Chamber Dims	Capacity	Operating Temp	Hole Dia/Depth	Hole Bottom	Price	Quantity	Add to Cart
DB-01A	Single Block Digital Dry Bath	4.6 x 3.1 x 1.2 in	1 Block (Varies)	Ambient + 5 - 120ºC	N/A	N/A	470.0000 564.00 Each

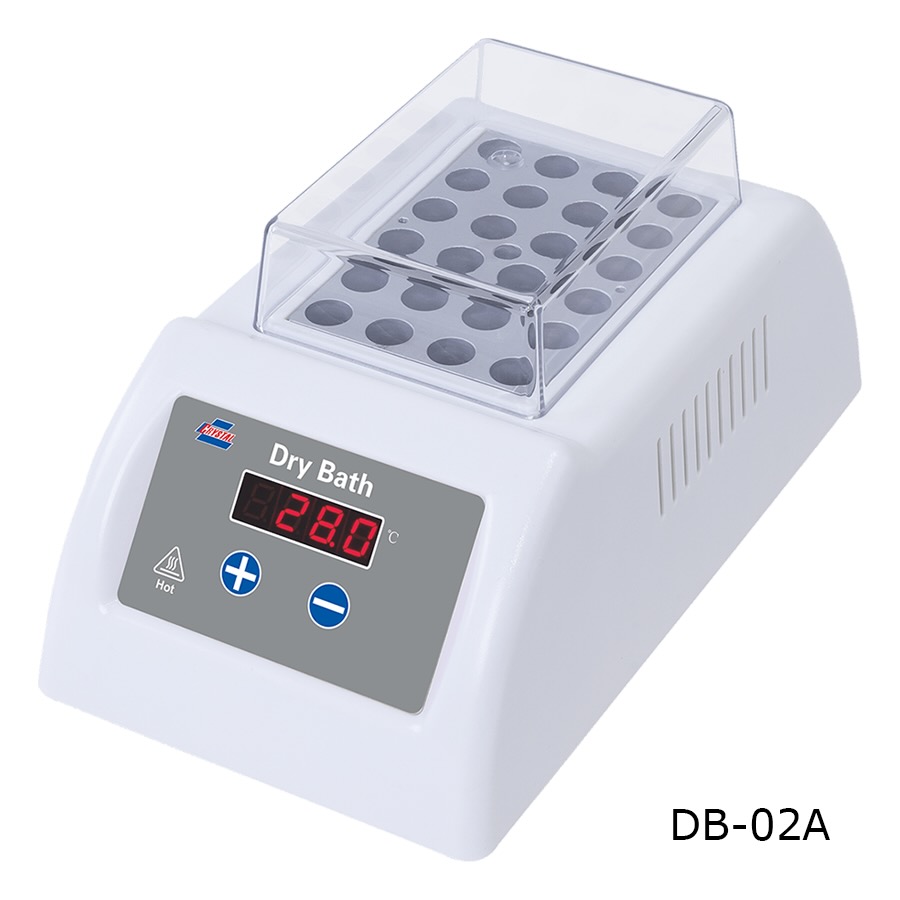

DB-02A	Single Block Dry Bath	4.6 x 3.1 x 1.2 in	1 Block (Varies)	Ambient + 5 - 120ºC	N/A	N/A	415.0000 501.00 Each

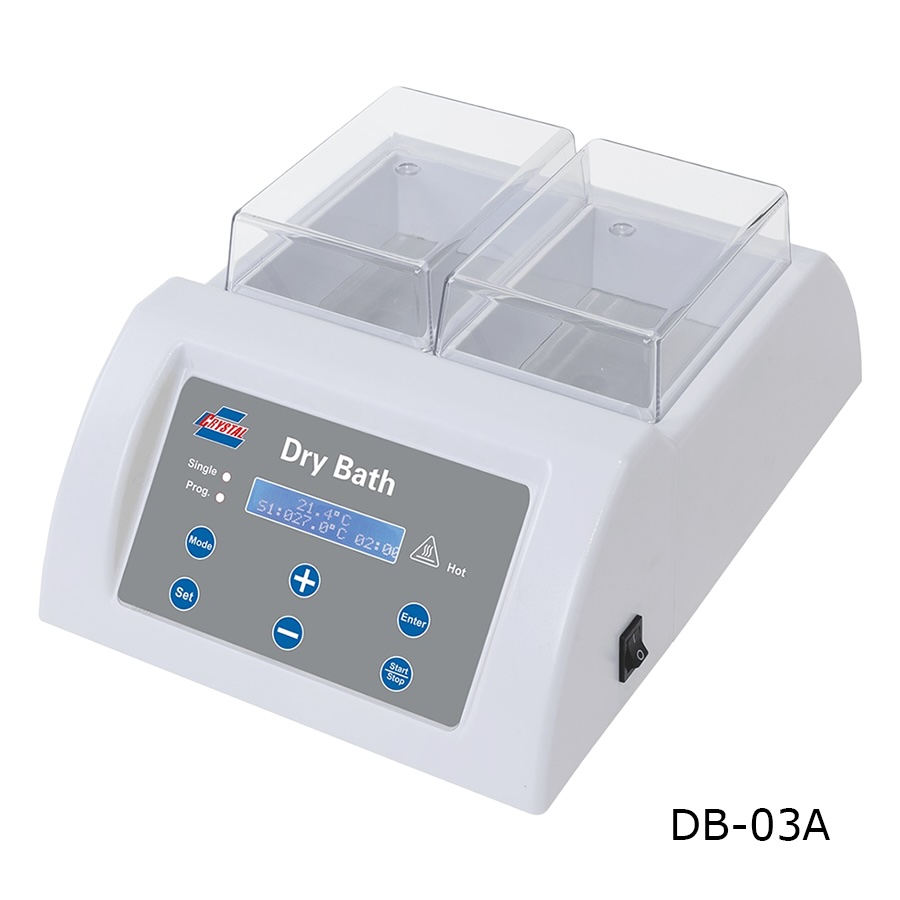

DB-03A	Dual Block Digital Dry Bath	4.6 x 3.1 x 1.6 in	2 Blocks (Varies)	Ambient + 5 - 120ºC	N/A	N/A	565.0000 680.00 Each

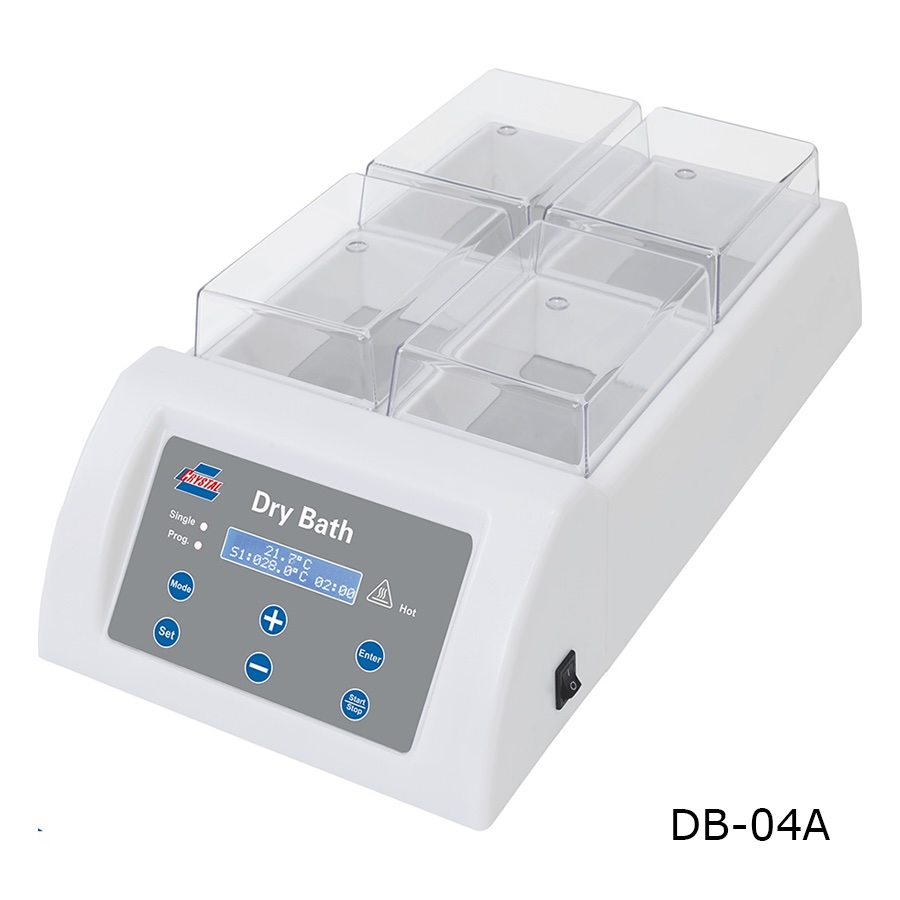

DB-04A	4-Block Dry Bath	4.6 x 3.1 x 1.6 in	4 Blocks (Varies)	Ambient + 5 - 120ºC	N/A	N/A	715.0000 861.00 Each
DBA02	12 x 1.5 mL Half Block	58.9 x 77.8 x 50 mm \| 2.32 x 3.06 x 1.97 in.	1.5 mL Microtubes	N/A	10.8 mm \| 0.43 in.	Conical	51.0000 62.00 Each
DBA03	10 x 10/15 mL Half Block	58.9 x 77.8 x 50 mm \| 2.32 x 3.06 x 1.97 in.	10/15 mL Round Bottom Tubes	N/A	16 mm \| 0.63 in.	Round	51.0000 62.00 Each
DBA07	48 x 0.2 mL Half Block	58.9 x 77.8 x 40 mm \| 2.32 x 3.06 x 1.57 in.	10.2 mL Trube o B PCR Strips	N/A	6.1 mm \| 0.24 in.	Conical	89.0000 108.00 Each
DBA12	96 x 0.1/0.2 mL PCR Block	117.8 x 77.8 x 50 mm \| 4.64 x 3.06 x 1.97 in.	0.1/0.2 mL PCR Tubes	N/A	6.1 mm \| 0.24 in.	Cone-Shape	106.0000 129.00 Each
DBA04	96 x 0.2 mL Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	0.2 mL PCR or Microtubes	N/A	6.4 mm \| 0.25 in.	Conical	102.0000 124.00 Each
DBA23	30 x 06 mm Tube Block	117.8 x 77.8 x 50 mm \| 4.64 x 3.06 x 1.97 in.	06 mm Standard Round Bottom Test Tubes	N/A	6.5 mm \| 0.26 in.	Round	78.0000 95.00 Each
DBA09	30 x 0.5 mL Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	0.5 mL PCR Tubes	N/A	7.9 mm \| 0.31 in.	Conical	72.0000 88.00 Each
DBA06	24 x 1.5 mL Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	1.5 mL Microtubes	N/A	11 mm \| 0.43 in.	Conical	72.0000 88.00 Each
DBA11	24 x 1.5 mL Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	1.5 mL V-Shaped Tubes	N/A	11 mm \| 0.43 in.	V-Shape	72.0000 88.00 Each
DBA24	20 x 010 mm Tube Block	117.8 x 77.8 x 50 mm \| 4.64 x 3.06 x 1.97 in.	010 mm Standard Round Bottom Test Tubes	N/A	10.7 mm \| 0.42 in.	Round	78.0000 95.00 Each
DBA08	24 x 1.5/2 mL Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	1.5/2.0 mL Microtubes	N/A	11.5 mm \| 0.45 in.	Conical	72.0000 88.00 Each
DBA01	24 x 5 mL Block	117.8 x 77.8 x 31.5 mm \| 4.64 x 3.06 x 1.24 in.	5 mL Round Bottom Tubes	N/A	13.5 mm \| 0.53 in.	Round	72.0000 88.00 Each
DBA01-H	24 x 5 mL Tall Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	5 mL Round Bottom Tubes	N/A	13.5 mm \| 0.53 in.	Round	72.0000 88.00 Each
DBA25	20 x 013 mm Tube Block	117.8 x 77.8 x 50 mm \| 4.64 x 3.06 x 1.97 in.	012/13 mm Standard Round Bottom Test Tubes	N/A	13.9 mm \| 0.55 in.	Round	78.0000 95.00 Each
DBA16	12 x 15 mL Block	117.8 x 77.8 x 50 mm \| 4.64 x 3.06 x 1.97 in.	15 mL Conical Bottom Centrifuge Tubes	N/A	16 mm \| 0.63 in.	Conical	89.0000 108.00 Each
DBA17	6 x 50 mL Block	117.8 x 77.8 x 50 mm \| 4.64 x 3.06 x 1.97 in.	50 mL Conical Bottom Centrifuge Tubes	N/A	29 mm \| 1.14 in.	Conical	42.0000 52.00 Each
DBA10	Flat Block	117.8 x 77.8 x 40 mm \| 4.64 x 3.06 x 1.57 in.	Suitable for 96-well/384-well Microplates/Slides	N/A	N/A	N/A	39.0000 48.00 Each

Digital Dry Baths

Special Order

Quantity:

Request A Quote

For quote requests, include the specific product number(s) in the message box. Or for a faster experience, existing customers can log in to your account, add the item(s) to your cart, and click the “Save as Quote” button at the bottom of the payment options page during the checkout process.

Request a Quote
