Chromate® Microplate Reader

Item #: ASCHROMATEREAD

Specifications

Linear Measurement Range -0.20 to 4.0 absorbance units (A)
Photometric Accuracy ±1%
Stability Drift of no more than 0.005A in 8 hours
Light Source Remote halogen lamp source with lamp saver feature
Wavelengths Standard: 405, 450, 492, and 630 nm
Filter Options From 405 nm to 700 nm
Filter Type IAD hardcoat interference, 10 nm half bandpass
Vessel Standard 96-well microtiter plates, or strip trays
Power Requirements 115V or 230V, 50-60Hz (auto-sensing)
PC Connection USB port
Speed Reads absorbances of 96 wells in about 8 seconds
Dimensions 7.25 x 7.25 x 16.5 In. | 18.42 x 18.42 x 41.91 cm
Weight 10 lb | 4.54 kg
Warranty 1-Year

Software

Calculation Modes Single-point calibration, point-to-point curve fit, polynomial regression, linear and sigmoidal regression (log & linear), cutoff absorbance, multipoint % absorbance
Additional Features User-programmable open system, selectable plate formatting, alphanumeric test naming, automatic interpretation options, duplicate well options, curve plotting and editing, flags and error messages

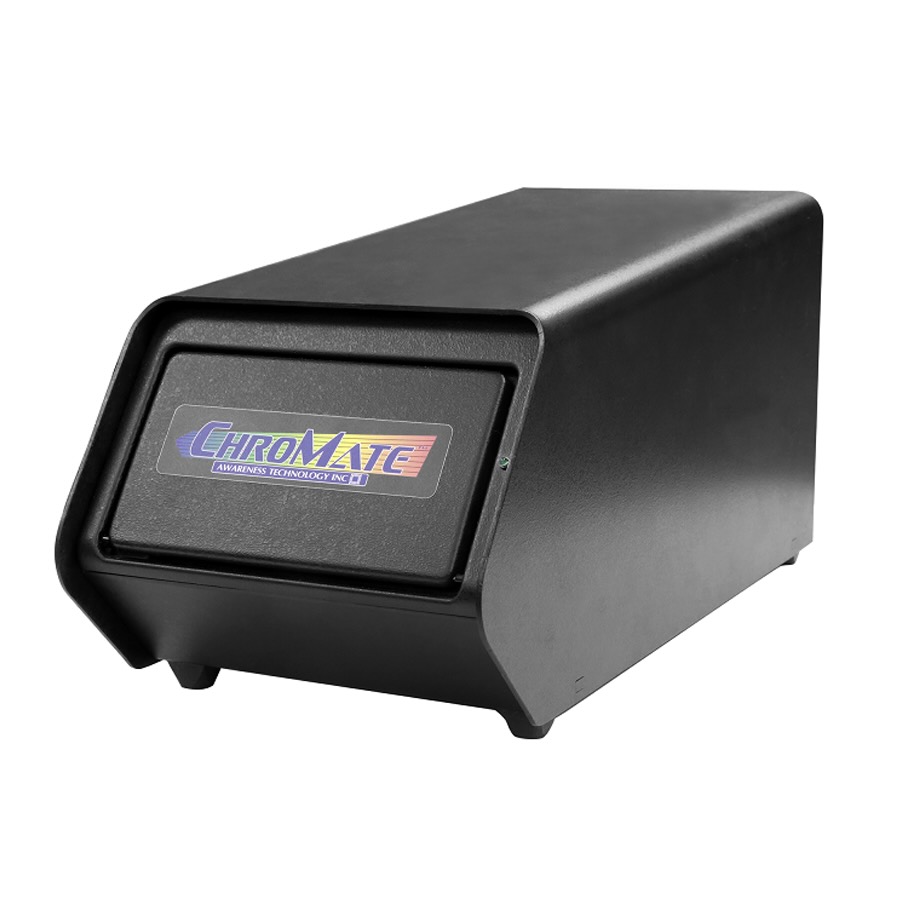

Chromate Reader


Chromate® Microplate Reader



The Chromate® Microplate Reader is a compact, economical 8-channel absorbance reader designed for fast, reliable analysis of standard 96-well plates. With the ability to read a full plate in under 10 seconds, Chromate® delivers high-quality optical performance without sacrificing bench space.



Its streamlined footprint fits easily on any lab bench, making it ideal for laboratories of all sizes. Chromate® connects seamlessly to your PC and includes powerful, user-friendly software for data acquisition, reporting, curve fitting, and long-term data storage. The instrument and software come fully configured for true “plug and play” operation, no complex setup required.



Ideal for modern laboratory workflows, Chromate® provides speed, simplicity, and dependable performance at an accessible price point.



Main Attributes

  • Compact, cost-effective 8-channel microplate reader
  • Reads absorbance of 96-well plates in under 10 seconds
  • Small footprint fits any laboratory bench
  • PC-based system with advanced software for analysis and reporting
  • Ready to use with simple plug-and-play setup
