Home > Equipment > Freezers and Refrigeration > Freezers > - 80C Freezers > Haier TwinCool -86°C ULT Freezers with Touchscreen

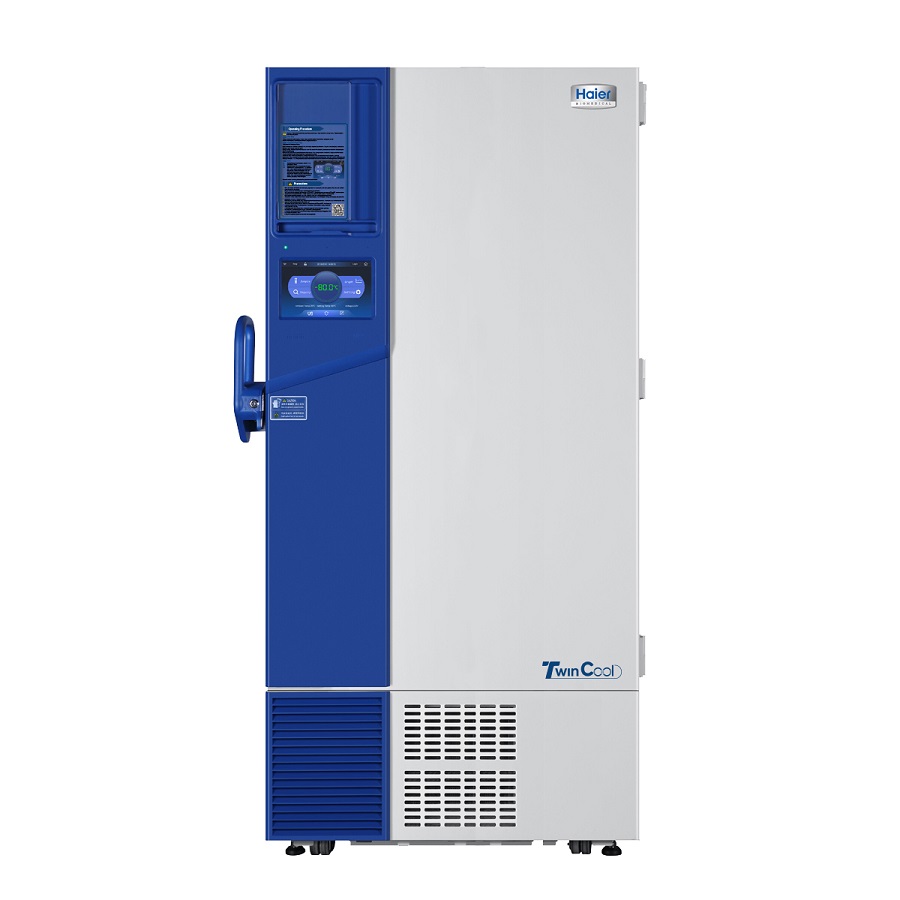

Haier TwinCool -86°C ULT Freezers with Touchscreen

Discontinued, Contact us for more options!

Item #: ASTWINCOOLUPR

Specifications

Technical Data	DW-86L578ST	DW-86L728ST	DW-86L578SAT	DW-86L728SAT
Type	-86L°C ULT Freezer	-86L°C ULT Freezer	-86L°C ULT Freezer	-86L°C ULT Freezer
Cabinet Type	Upright	Upright	Upright	Upright
Climate Class	N	N	N	N
Cooling Type	Direct cooling	Direct cooling	Direct cooling	Direct cooling
Defrost Mode	Manual	Manual	Manual	Manual
Refrigerant	HC	HC	HC	HC
Noise Lever (dB)	53	50	53	50
Performance
Cooling performance	-86°C	-86°C	-86°C	-86°C
Temperature Range	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C	-40°C to -86°C
Control
Controller	Microprocessor	Microprocessor	Microprocessor	Microprocessor
Display	LCD	LCD	LCD	LCD
Electrical Data
Power Supply	115V, 60Hz	115V, 60Hz	220-240V, 50Hz / 115V, 60Hz	220-240V, 50Hz
Power	1400W	1400W	1400W	1400W
Electrical Current	10A	10A	10A	10A
Dimensions
Capacity	578 L / 20.4 Cu Ft	728 L / 25.7 Cu Ft	578 L / 20.4 Cu Ft	728 L / 25.7 Cu Ft
Net/Gross Weight(approx)	325/355 kg 717.1/783.3 lbs	350/385 kg 771.6/848.8 lbs	325/355 kg 717.1/783.3 lbs	350/385 kg 771.6/848.8 lbs
Interior Dimensions (w x d x h)	620 x 716 x 1310 mm 24.4 x 28.2 x 51.6 in	766 x 716 x 1310 mm 30.2 x 28.2 x 51.6 in	620 x 716 x 1310 mm 24.4 x 28.2 x 51.6 in	766 x 716 x 1310 mm 30.2 x 28.2 x 51.6 in
Exterior Dimensions (w x d x h)	895 x 998 x 1980 mm 35.2 x 39.3 x 78.0 in	1046 x 998 x 1980 mm 41.2 x 39.3 x 78.0 in	895 x 998 x 1980 mm 35.2 x 39.3 x 78.0 in	1046 x 998 x 1980 mm 41.2 x 39.3 x 78.0 in
Packing Dimensions (w x d x h)	950 x 1055 x 2150 mm 37.4 x 41.5 x 84.6 in	1100 x 1105 x 2150 mm 43.3 x 43.5 x 84.6 in	950 x 1055 x 2150 mm 37.4 x 41.5 x 84.6 in	1100 x 1105 x 2150 mm 43.3 x 43.5 x 84.6 in
Container load (20'/40'/40'H)	12/24/24	10/20/20	12/24/24	10/20/20
Alarms
High/Low Temperature	Y	Y	Y	Y
Hot Condenser	Y	Y	Y	Y
Power Failure	Y	Y	Y	Y
High/Low Voltage	Y	Y	Y	Y
Sensor Error	Y	Y	Y	Y
Low Battery	Y	Y	Y	Y
High Ambient Temp	Y	Y	Y	Y
Door Ajar	Y	Y	Y	Y
Accessories
Caster	Y	Y	Y	Y
Foot	Y	Y	Y	Y
Test Hole	Y/2	Y/2	Y/2	Y/2
Shelves/Inner Doors	3/4	3/4	3/4	3/4
USB Interface	Y	Y	Y	Y
Remote Alarm	Y	Y	Y	Y
5V Power Supply Port	Y	Y	Y	Y
Temperature Recorder	Optional	Optional	Optional	Optional
Rs232/485 Interface	Optional	Optional	Optional	Optional
CO2 Backup System	Optional	Optional	Optional	Optional
LN2 Backup System	Optional	Optional	Optional	Optional

Freestanding Vaccine Countertop Freezer NSF/ANSI 456 Certified

These premier freestanding countertop freezers are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Freezers protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

These models utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes. American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.

Dimensions: 23 5/8” W X 23” D X 20 3/8” H

Product Weight: 80 Lbs.

Shipping Weight: 106 Lbs.

Rated Amperage: 1.0 Amps

Simulator Ballast: 20 Ml Bottle, Glass Bead Thermal Media

Compressor: Hermetic, High Performance

Refrigerant: Epa Snap Compliant, R600a, Isobutane

Condenser: Hybrid Fin and Tube With Low Noise Fan

Evaporator: Plate Wall

Defrost: Cycle Optimized, Zero Energy

Performance

Uniformity¹ (Cabinet Air): +/- 0.8°c

Stability² (Cabinet Air): +/- 1.2°c

Maximum Temperature Variation (Cabinet Air): +/- 1.4°c

Temperature Rise After an After 8 Sec Door Openings: Temperature Did Not Exceed 6.4°c at Any Probe for All Required Nsf/ansi 456 Testing Protocols

Recovery After 3 Min Door Opening: All Probes Recover to Under 8°c Within 4.8 Min.

Energy Consumption: 1.15 Kwh/day

Average Heat Rejection: 1.57 Kwh/day (224 Btu/h)

Noise Pressure Level (Dba): 43 or Less Installed

Pull Down Time to Nominal Operating Temp: 35 Min

Controller Technology: Parametric, Microprocessor, Led Display With 0.1°c Resolution

Temperature Setpoint Range: 1°c to 10°c (Setpoint Must Remain Unaltered From the Factory Setting to Remain Compliant With Nsf/ansi Performance Requirements)

Display Probe: Calibrated, Stainless Steel

External Alarm Connection: State Switching Remote Alarm Contacts

Alarms: Visual and Audible Indicators

High / Low Temperature, Compliant With Alarm Requirements Defined in the Nsf/ansi Standard for Vaccine Storage

Display Probe: Calibrated, Stainless Steel

Simulator Ballast: 20 Ml Bottle, Glass Bead Thermal Media

Description: Single Solid Door Pharmacy/vaccine Undercounter Freezer Freestanding

Operational Environment: Indoor Use Only. Optimal Operating Range: +18°c to +26°c (+65°f to +78°f), 70% Rh

Storage Capacity: 1.7 Cu. Ft. Gross Volume

Door: One Swing Solid Door, Self-closing, Right Hinged, Non-reversible, Magnetic Sealed Gasket, Keyed Lock

Shelves: Three Shelves (Two Adjustable/one Fixed) With Guard Rail on Back

Mounting and Installation: Leveling Legs. Note: 4" of Clearance on All Sides Must Be Maintained for Adequate Ventilation

Interior Lighting: N/a

External Probe Access: Side Wall Port (3/8") Dia.

Insulation: Cabinet is Foamed-in-place With Epa Compliant High Density Urethane Foam

Exterior Materials: White Powder Coated Steel

Access Control: Pyxis®, Omnicell® and Acudose Rx® Compatible

General Warranty: Two (2) Years Parts and Labor Warranty, Excluding Display Probe Calibration

Compressor Warranty: Five (5) Years Compressor Warranty

Power Plug/power Cord: Nema 5-15 Plug, 8 to 10 Ft Typical, Conforms to Ul471 Requirements, Vaccine Storage Power Cord Warning Label

Facility Electrical Requirement: 110-120v Ac: 15 a (Minimum)

Agency Listing and Certification: Compliant With the Thermal Performance Requirements as Defined in the Nsf/ansi 456 Standard for Vaccine Storage for All Testing Protocols. Ul, C-ul, Etl, C-etl Listed (Either Single or Dual Agency Listings) and Certified to Ul471 Standard, Hydrocarbon Refrigerant Safety.

Included Accessories: Temperature Monitor Device (Tmd) Complies With the Current Cdc Guidelines, With 3 Years Certification of Calibration, “buffered” Probe in the Product Simulated Solution, Min/max Memory. °f/°c Switchable, Field Installable, and Visual & Audible Temp Alarm

Facility Electrical Requirement: Pharmacy Refrigerator/freezer Toolkit and Temperature Logs

SKU Number	Cu Ft	Operating Temp Range	Style	Monitoring System	Price	Quantity	Add to Cart
DW-86L578SAT	20.4 Cu Ft (578 L)	-40°C to -86°C	Upright 220 V 60 HZ	Yes			This item is temporarily unavailable.
DW-86L578ST	20.4 Cu Ft (578 L)	-40°C to -86°C	Upright 115 V 60 HZ	Yes	21995.0000 21995.00 Each
DW-86L728SAT	25.7 Cu Ft (728 L)	-40°C to -86°C	Upright 220 V 60 HZ	Yes			This item is temporarily unavailable.
DW-86L728ST	25.7 Cu Ft (728 L)	-40°C to -86°C	Upright 115 V 60 HZ	Yes			This item is temporarily unavailable.
