Labcon APT™ Automation Pipette Tips

Item #: ASLABAPTTIPS
Microcentrifuge

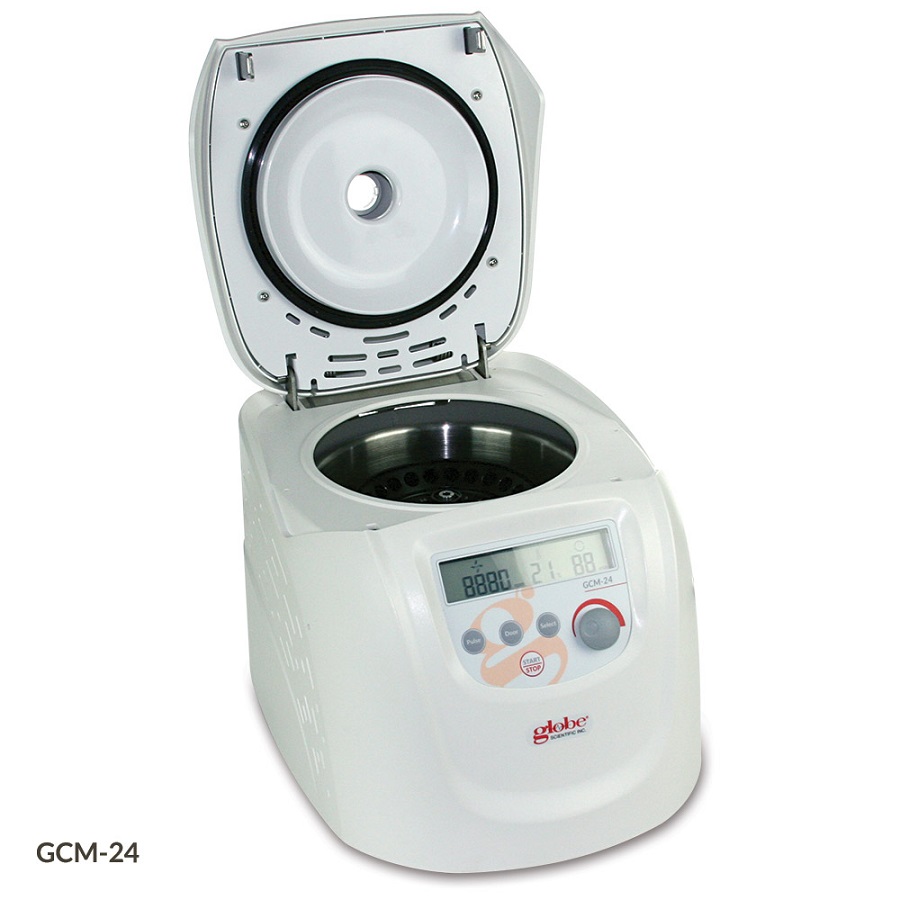

High Speed Microcentrifuge  24 Place (GCM-24)

The GCM-24 is a powerful, feature-rich microcentrifuge at an affordable cost. It is easily programmable through a combination of LCD display, control buttons and parameter adjustment knob. The GCM-24 is compatible with numerous biological, chemistry, clinical and research applications including molecular biology, blood labs, DNA protocols and many more.

Standard features include a high strength 24 place 1.5 / 2.0mL aluminum alloy rotor with biosafety aerosol containment lid (all of which can be fully autoclaved). Multi-flow air cooling ensures your temperature sensitive samples are safe. The GCM-24 features pulse operation for quick spins, a unique temperature monitor and much more.

Features:

  • Reliable and intuitive LCD display
  • Temperature monitoring for handling of critical samples sensitive to fluctuations
  • Quiet operation
  • Maintenance-free brushless DC motor
  • Fully autoclavable 1.5 / 2.0mL aluminum rotor with aerosol lid included as standard
  • Includes pulse operation (quick spin)
  • Patented multi-flow air cooling design ensures fast, efficient cooling of the rotor and helps lower energy consumption
  • Optional rotors available



Advanced Features:

  • Speed / RCF switch
  • Quick spin function
  • Audible alert function



Safety Features:

  • Dual door safety interlock
  • Excessive speed detection
  • Automatic internal diagnostics





Technical Data:

Specifications

GCM-24

GCM-R-24

Maximum Speed

15,000 rpm (200-15,000 rpm), 10rpm increment

15,000 rpm (200-15,000rpm), 10 rpm increments

Maximum RCF

21,380 x G, (10 x G Increment)

21,380 x G, (10 x G increments)

Speed Accuracy

+/- 20 rpm

+/- 20 rpm

Temperature

N/A

-20°C to 40°C

Rotor Capacity

Twenty-Four (24) 1.5 / 2.0mL tubes

Twenty-four (24) 1.5 / 2.0mL tubes

Run Time

30 sec - 99 min or continuous

30 sec - 99 min or continuous

Power

5A, 500W

10A, 400W

Acceleration Time

25 Seconds

25 Seconds

Braking Time

25 Seconds

25 Seconds

Dimension (W x D x H)

280 x 364 x 266mm (11.0 x 14.3 x 10.5")

338 x 580 x 324mm (13.3 x 22.8 x 12.8")

Weight

12 Kg (26.5 lbs)

30 Kg (66.1 lbs)

Certifications

CE, cTÜVus, FCC, MCA

CE, cTÜVus, FCC, MCA

Warranty

2 Years

2 Years



Microcentrifuge Accessories:

GCM-24-AD2:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.2mL Tubes, 24/bag

GCM-24-AD5:  Rotor Adapters for GCM-12, GCM-24, GCH-24 for 0.5mL Tubes, 24/bag

GCM-24-5MLR:  Rotor for use with GCM-24 Series, 15000rpm max, 18-Place for 5mL Tubes

GCM-24-5ML:  Rotor for use with GCM-24 Series, 15000rpm max, 12-Place for 5mL Epp*

GCM-24-05ML:  Rotor for use with GCM-24 Series, 15000rpm max, 36-Place, for 0.5mL MCTs

GCM-24-PCR:  Rotor for use with GCM-24 Series, 15000rpm max, 4 x 8 positions for 0.2mL PCR Tubes

GCM-24-AD52:  Rotor Adapters for GCM-24-05ML Rotor for 0.2mL Tubes, 36/bag

GCM-AD2:  Rotor Adapter for use with GCM Series for 0.2mL MCT Tubes, 8/bag

GCM-AD5:  Rotor Adapter for use with GCM Series for 0.5mL MCT Tubes, 8/bag
SKU Number Tip Fit Lid Type Vol Sterile Qty Price Quantity Add to Cart
8007-200-008-9 For Workstations Refills 30 uL Non-Sterile 8 refills of 7,680 tips
14814.00
Each
8015-200-020-9 For Workstations Refills 50 uL Non-Sterile 8 refills of 2,688 tips
2771.00
Each
8016-200-020-9 For Workstations Refills 200 uL Non-Sterile 8 refills of 1,920 tips
1980.00
Each
8010-200-020-9 For Biotek Instruments Workstations Refills 50 uL Non-Sterile 8 refills of 2,688 tips
3203.00
Each
8020-200-020-9 For Biotek Instruments Workstations Refills 200 uL Non-Sterile 8 refills of 1,920 tips
1715.00
Each
8021-200-020-9 For Beckman Multimek Workstations Refills 200 uL Non-Sterile 8 refills of 1,920 tips
2157.00
Each
8015-690-008-9 For Workstations Racked 50 uL Non-Sterile 50 racks of 96 tips
890.00
Each
8124-695-000-9 For Beckman FX and NX AP96 Workstations Racked 90 uL Sterile with Aerosol Filter 50 racks of 96 tips
1140.00
Each
8024-695-010-9 For Beckman FX and NX AP96 Workstations Racked 90 uL Sterile 50 racks of 96 tips
802.00
Each
8024-690-010-9 For Beckman FX and NX AP96 Workstations Racked 90 uL Non-Sterile 50 racks of 96 tips
765.00
Each
8114-695-000-9 For Beckman FX and NX AP96 Workstations Racked 100 uL Sterile with Aerosol Filter 50 racks of 96 tips
1139.00
Each
8014-695-010-9 For Beckman FX and NX AP96 Workstations Racked 100 uL Sterile 50 racks of 96 tips
802.00
Each
8014-690-010-9 For Beckman FX and NX AP96 Workstations Racked 100 uL Non-Sterile 50 racks of 96 tips
765.00
Each
8117-695-000-9 For Beckman FX and NX AP96 Workstations Racked 220 uL Sterile with Aerosol Filter 50 racks of 96 tips
1132.00
Each
8020-695-028-9 For Biotek Instruments Workstations Racked 200 uL Sterile 50 racks of 96 tips
955.00
Each
8020-690-028-9 For Biotek Instruments Workstations Racked 200 uL Non-Sterile 50 racks of 96 tips
875.00
Each
8017-695-010-9 For Beckman FX and NX AP96 Workstations Racked 220 uL Sterile 50 racks of 96 tips
804.00
Each
8017-690-010-9 For Beckman FX and NX AP96 Workstations Racked 220 uL Non-Sterile 50 racks of 96 tips
768.00
Each
8005-695-009-9 For Beckman FX and NX AP384 Workstations Racked 30 uL Sterile 50 racks of 384 tips
4736.00
Each
8005-690-009-9 For Beckman FX and NX AP384 Workstations Racked 30 uL Non-Sterile 50 racks of 384 tips
4337.00
Each
8010-250-000-9 For Biotek Instruments Workstations Mini Refills 50 uL Non-Sterile 8 refills of 672 tips
867.00
Each
8020-250-000-9 For Biotek Instruments Workstations Mini Refills 200 uL Non-Sterile 8 refills of 480 tips
337.00
Each

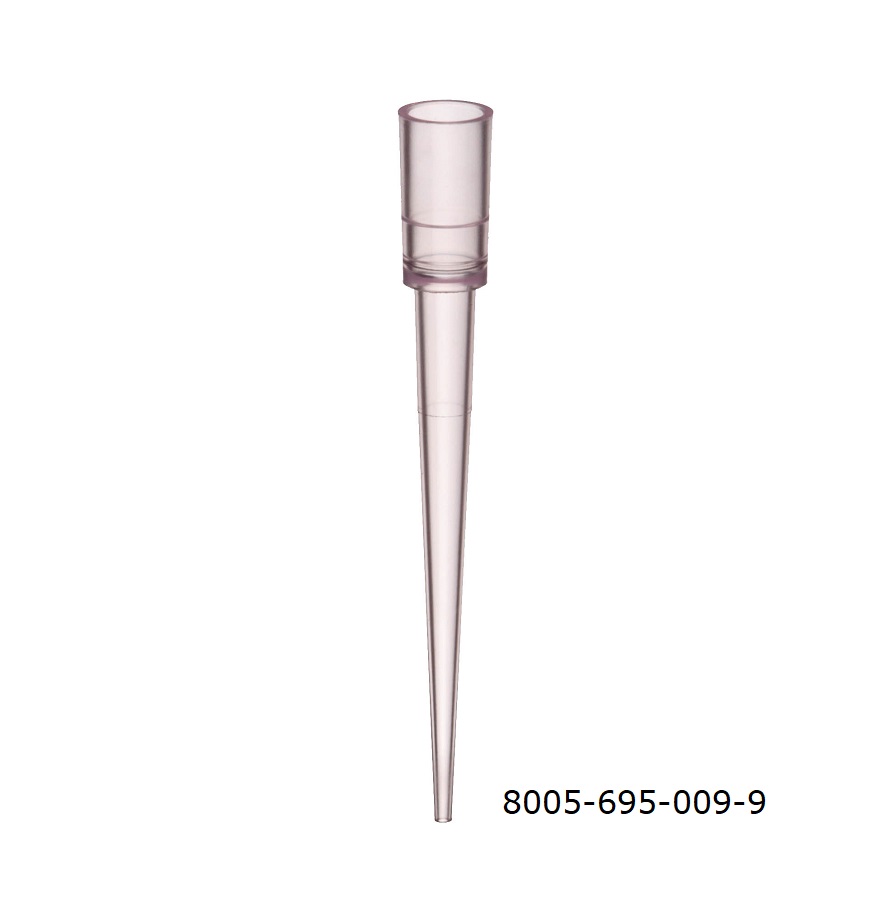

LabCon APT Automation Tip
Labcon APT™ Automation Pipette Tips
Special Order
Quantity:
