Hoefer® AutoLaser Marking Machine

Item #: ASHOFRALSR

Specifications

Dimensions
(D x W x H)		 19.09 x 22.44 x 25.59 In.
485 × 570 × 650 mm
Unit Weight 158.73 lb | 72 kg
Optical Parameters Marking range
Marking Line Width 0.06 mm (depend on the material)
Min. Character Height 0.2 mm
Cooling System Forced air cooling
Controlling
Unit		 I5-6200 main board,
4G Memory, 128G drive, touch screen
Operating
environment		 1.5KW/AC220V/50Hz
The voltage fluctuation range is ± 5%.
If it exceeds the fluctuation range,
a voltage regulator device needs to be equipped.
Grounding Class D [grounding resistance 100 or less]
Ambient Temp. 10 ~ 35°C
Ambient humidity ≤ 90%
Vibrate 0.98m/s2 {0.1G} or less, 10~60Hz.
During transportation: 4.9 m/s2 {0.5G} or less.
Dust Less 0.20 mg/m3
Mist Not allow
Condensation Not allow




Hoefer® AutoLaser Marking Machine

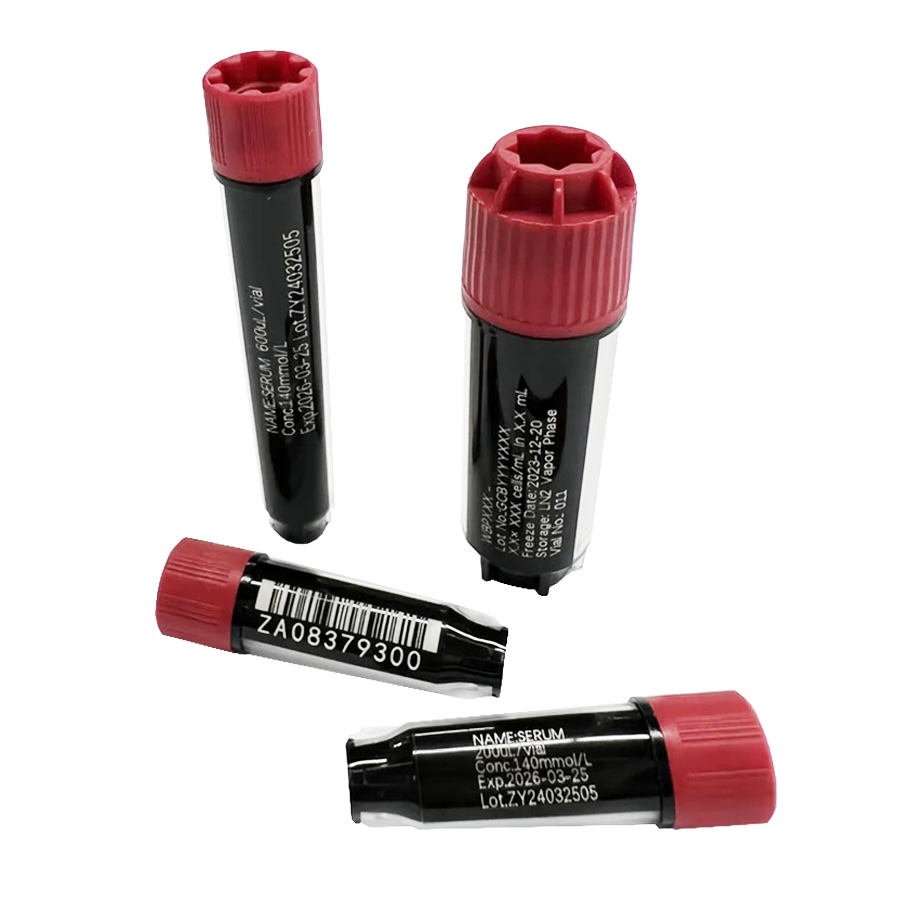

  • Laser-etch tri-code sample tubes with a maximum of 1200 tubes per hour, user-defined with their own information
  • Customize the code using characters, numbers, letters, barcodes, 2D codes, graphics, etc
  • Laser-etched code with high contrast and readability, simply recognized with a Hoefer® Barcode Reader.

Open communication interface for integrating into existing software. Data can be imported externally without manual input. Compatible with the entire suite of Hoefer® sample storage tubes. Simplify the sample handling process by solving issues of paper labels that are prone to contamination, not waterproof, and fall off at low temperatures.
Barcode Raeder
Item#:
ASHOFRBRCDRD

Tri-Coded Tubes
Item#:
ASHOFRTRITUBES

SKU Number Range Print Dims Cooling System Power Price Quantity Add to Cart
ST-ATL02 110 x 110 mm H: 2.0 x W: 0.06 mm Forced Air Cooling 1.5KW/AC220V/50Hz
136800.00
Each
Laser Marking Machine
Hoefer® AutoLaser Marking Machine
Special Order
Quantity:
