Haier Biobank Series Liquid Nitrogen Container

Item #: ASHAIERZHILN2
Model

CryoBio 11Z

CryoBio 20Z

CryoBio 34Z
  Vapor Phase Liquid Phase Vapor Phase Liquid Phase Vapor Phase Liquid Phase
1.2 mL, 1.8 mL, 2 mL Vials
(Internal Thread)		 11,000 13,000 20350 24050 33550 39650
5 × 5 Rack (Vertical Type)     10 10 10 10
10 × 10Rack (Vertical Type)  10 10 16 16 28 28
5 × 5 Freezer Box     110 130 110 130
10 × 10 Freezer Box 110 130 176 208 308 364
Layers of Vertical Type Rack 11 13 11 13 11 13
Volume of LN2 (L) 200 340 550
Exterior Dimensions
(W x D x H)		 1,125 x 860 x1190 mm
44.29 x 33.86 x 46.85 in.		 1195 x 960 x 1190 mm
47.05 X 37.80 X 46.85 in.		 1410 x 1100 x 1190 mm
55.51 X 43.31 X 46.85 in.
Static Evapouration (L/Day)  7 10 12
Empty Weight (kg) 180 260 400
Inside Neck Diameter 610 mm | 24.02 in. 790 mm | 31.10 in. 1000 mm | 39.07 in.
Item Includes Includes:
• Vacuum isolated hose (GRG-DN10/2.0)
• 1 set of cryosmart (level monitoring system)
• 10 pcs of 11-tier rack(9*9)
•110pcs of cryo boxes(9*9) for 2 mL vial		 Includes:
• Vacuum isolated hose (GRG-DN10/2.0)
• 1 set of cryosmart (level monitoring system)
• 10 pcs of 11-tier rack(5*5)
• 16pcs of 11-tier rack(9*9)
•110pcs of cryo boxes(5*5) for 2 mL vial
176 pcs of cryo boxes(9*9) for 2 mL vial		 Includes:
• Vacuum isolated hose (GRG-DN10/2.0)
• 1 set of cryosmart (level monitoring system)
• 10 pcs of 11-tier rack(5*5)
• 28pcs of 11-tier rack(9*9)
• 110 pcs of cryo boxes(5*5) for 2 mL vial
• 308 pcs of cryo boxes(9*9) for 2 mL vial

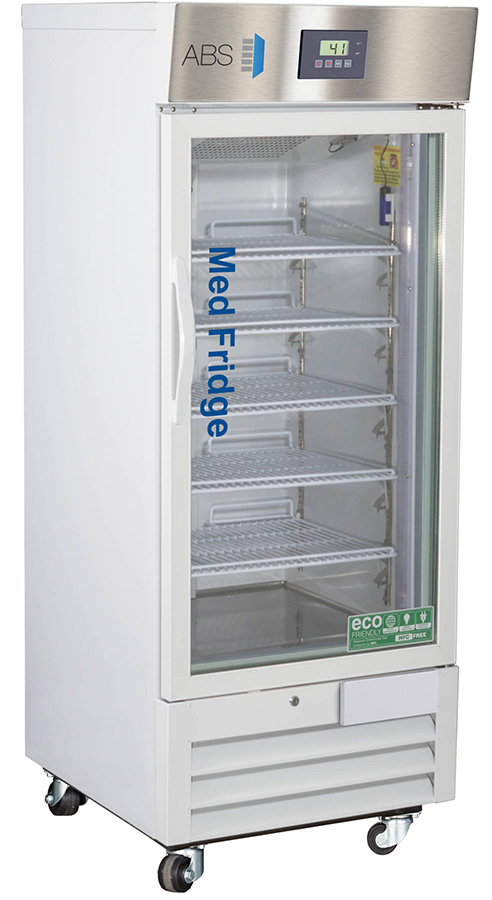

PH-ABT-HC-12G Ext Image


Need Cold Storage in a Hurry?

MIDSCI™ Delivers Fast with ABS|American BioTech Supply!


5-8 Days Shipping on Fast Track Freezers & Refrigerators

Check out the Laboratory FastTrack | Pharmacy FastTrack flyers for full details.





Items are subject to change without notice. Fast delivery options may end at any time and are dependent on stock availability and location.

While we strive to ensure the accuracy of all product descriptions and shipping timelines,

delivery times may vary based on factors such as order volume and shipping carrier performance.

MIDSCI™ and ABS|American BioTech Supply reserve the right to modify or discontinue promotions at their discretion.

All terms and conditions apply.

Premier Pharmacy Glass Door Refrigerator

Pharmacy Premier Series Refrigerators are Large Capacity Refrigerator Units for High Volume Pharmacies. Standard features include a microprocessor temperature controller and display for superior temperature control, verification, and recovery. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. An extensive package of audible and visual alarms is provided to protect critical samples and vaccines.
The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller for additional product security.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

  • Cycle Defrost
  • 115v, 60 Hz, 3 Amps, 1/5 Hp
  • Etl Listed
  • Shipping Weight: 258 Lbs
  • Microprocessor Temperature Controller
  • Adjustable Operating Temperature Range: 36°f to 46°f (2°c to 8°c)
  • Temperature Monitor Device (Tmd) Complies With the Current Cdc Guidelines, With 3 Years Certification of Calibration, “buffered” Probe in the Product Simulated Solution, Min/max Memory. F/c Switchable, Field Installable, and Visual & Audible Temp Alarm
  • Standard Digital Temperature Display and Alarm Module With Battery Back-up to Support Temperature Monitoring and Alarms
  • Sample Simulated Digital Temperature Display; .1° Resolution
  • Adjustable Temperature Display in Celsius or Fahrenheit
  • Audible and Visual High/low Temperature Alarms
  • 2 Probes; 1 in Air and 1 in Sample Bottle

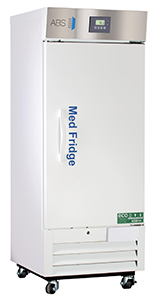

PH-ABT-HC-12S Ext Image
Item#:
ASPHSODOREF

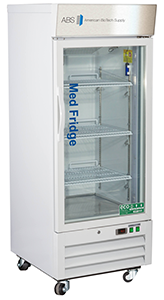

PH-ABT-HC-S12G Ext Image
Item#:
ASSTPHGLDOREF

SKU Number Volume of LN Exterior Dimensions (W*D*H) Holds Inside Neck Diameter Price Quantity Add to Cart
CRYOBIO-11Z 200 L 44.29 x 33.86 x 46.85 in. 11,000 or 13,000 Vials 24.02 in.
33590.00
Each
CRYOBIO-20Z 340 L 47.05 X 37.80 X 46.85 in. 20,350 or 24,050 Vials 31.10 in.
42500.00
Each
CRYOBIO-34Z 550 L 55.51 X 43.31 X 46.85 in. 33,550 or 39,650 Vials 39.37 in.
48330.00
Each
Zhiling LN2 Container
Haier Biobank Series Liquid Nitrogen Container
Special Order
Quantity:
