ABS Standard Glass Door Laboratory Refrigerators

Item #: ASGDLABRFG

Specifications

Door Swing glass door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Adjustable shelves (adjustable in ½ In. increments)
Mounting and Installation Swivel casters - locking front casters
Interior lighting LED interior lights are safety shielded and switch controlled
External probe access Probe access port (3/4 In.) on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access Control Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110 to 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators. Official listing pending – see energystar.gov
Compressor Hermetic
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle defrost
Controller technology Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Max temp. variation – cabinet air    +/- 2.5° C
Stability - simulator ballast    +/- 0.5° C
Display Technology    Digital Temperature Display
Noise pressure level    40 dBA or less installed
Adjustable Temp. Range    2° C to 15° C
External alarm connection    Remote alarm contacts
Display Probe    Product simulator bottle with glass bead media
Alarms    Audible and visual high/low temperature alarms, remote alarm contacts
General warranty Two (2) year parts and labor warranty
Compressor  warranty Five (5) year compressor warranty

*Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings.

Warranty

Two (2) year parts and labor warranty

Five (5) year compressor warranty



Mohr (Measuring) Pipettes

Borosilicate Glass Mohr (Measuring) Pipets

Class A Borosilicate Glass Mohr (Measuring) Pipets, Batch Certified

  • Made from borosilicate glass in compliance with ASTM specification E1293
  • Color coded
  • Calibrated to deliver
  • Printed with durable amber markings

 WARNING:  Cancer and Reproductive Harm www.P65Warnings.ca.gov

Specifications

ITEM #CapacityGraduation IntervalToleranceColor Code
PM7059-A0.1 mL0.01 mL± 0.006 mLWhite
PM7059-B0.2 mL0.01 mL± 0.006 mLBlack
PM7059-D1 mL0.1 mL± 0.010 mLRed
PM7059-F2 mL0.1 mL± 0.010 mLGreen
PM7059-H5 mL0.1 mL± 0.020 mLBlue
PM7059-I10 mL0.1 mL± 0.030 mLOrange
PM7059-J25 mL0.1 mL± 0.050 mLWhite

Serological Pipettes
Item#:
ASGLASSERPIP

Transfer Pipette
Item#:
ASGLASVOLPIP

SKU Number Cu Ft Description Dimensions (L x W x H)) Door Type Price Quantity Add to Cart

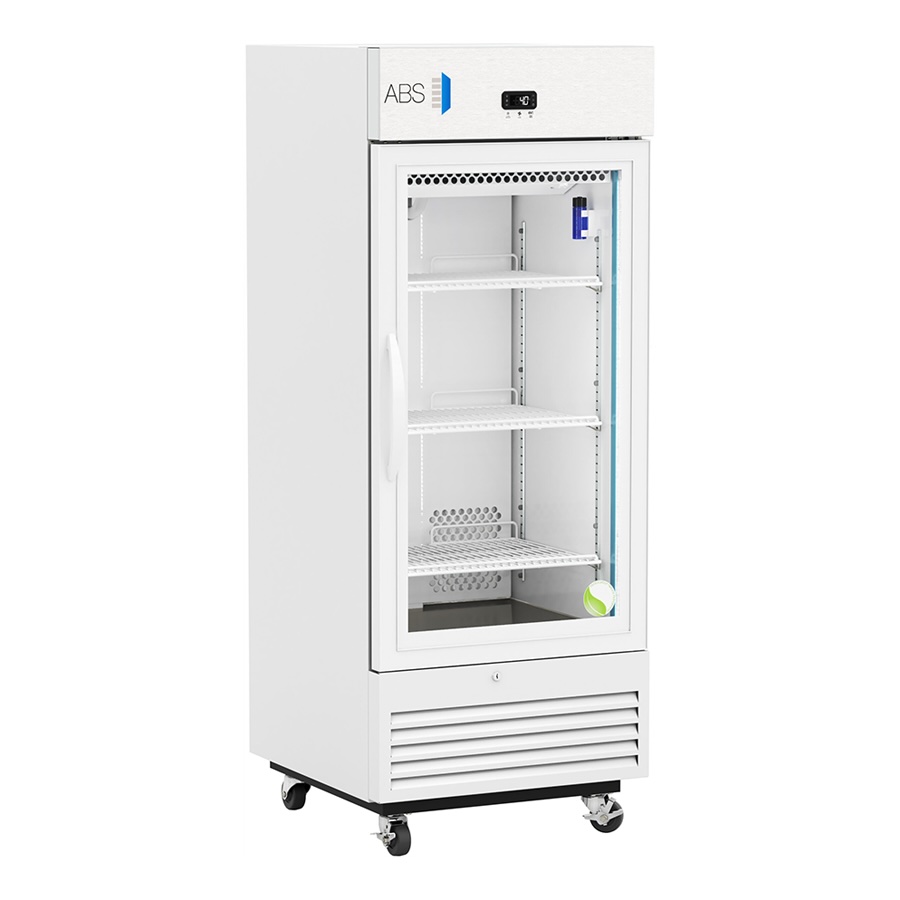

ABT-VS-LS-12 12 Cu. Ft. Laboratory 29 x 25 x 66 In. Standard Glass
4464.00
Each

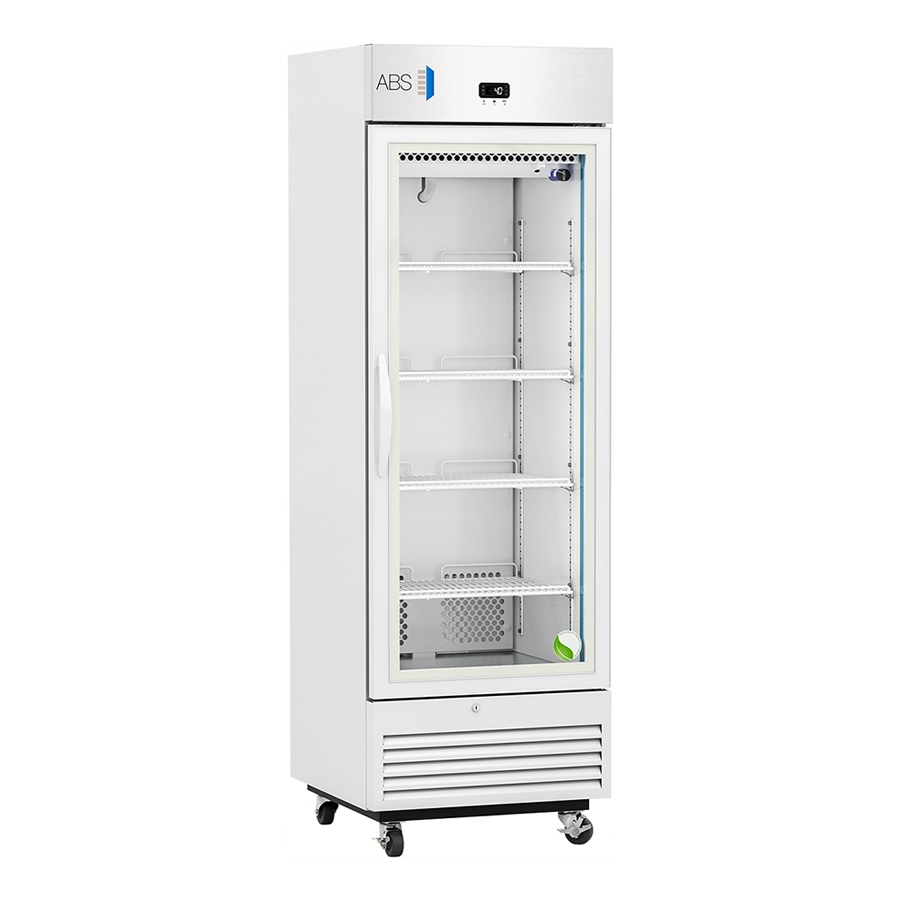

ABT-VS-LS-16 16 Cu. Ft. Laboratory 28.875 x 25 x 79 In. Standard Glass
4426.00
Each
ABT-VS-LS-23 23 Cu. Ft. Laboratory 34.75 x 26.875 x 81.75 In. Standard Glass
5392.00
Each

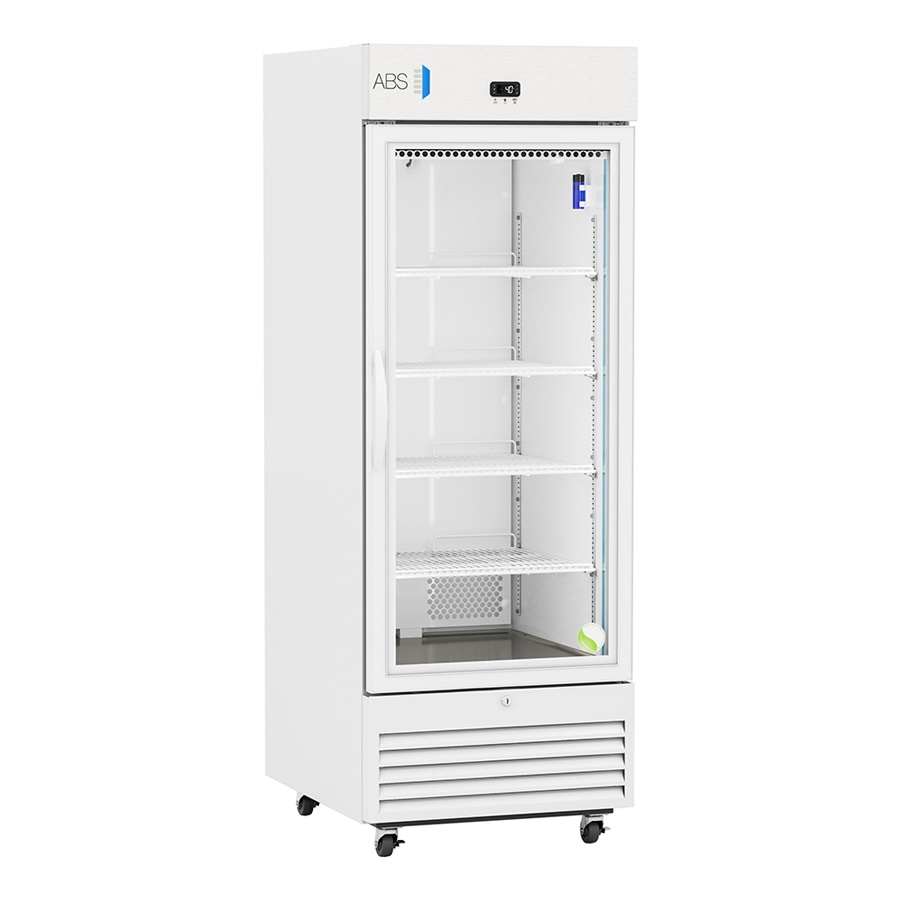

ABT-VS-LS-26 26 Cu. Ft. Laboratory 36.5 x 28.375 x 81.75 In. Standard Glass
5454.00
Each
ABT-VS-LS-36 36 Cu. Ft. Laboratory 34.75 x 39.625 x 81.75 In. Standard Glass
6940.00
Each

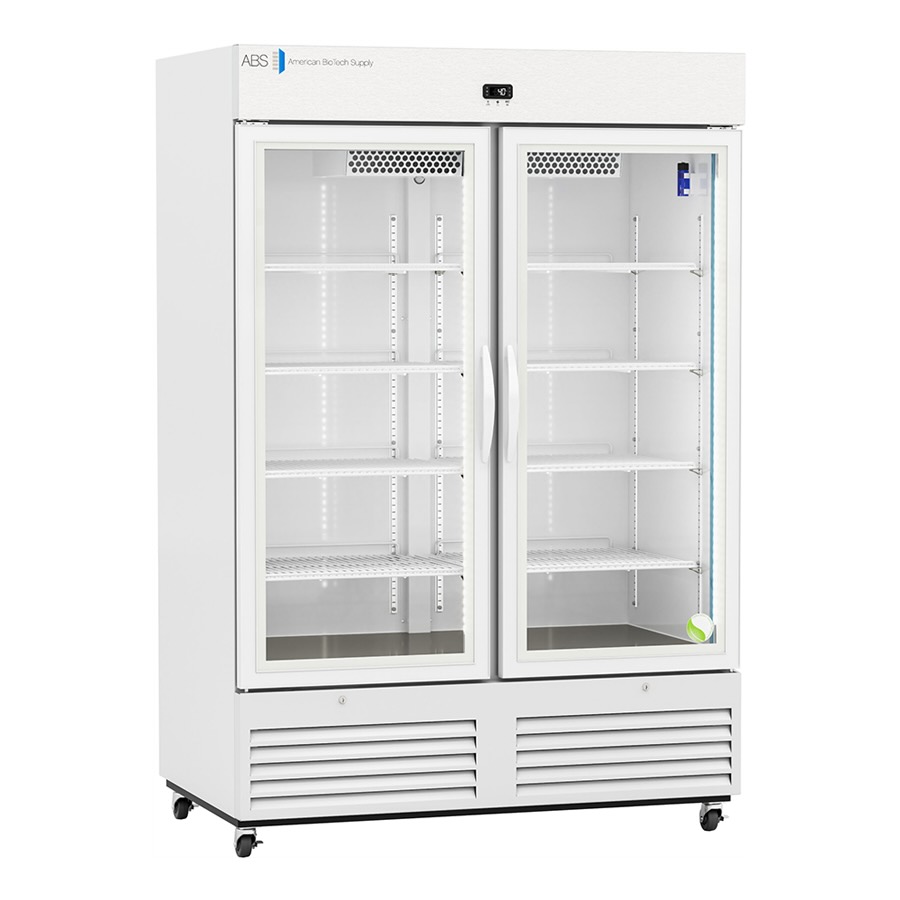

ABT-VS-LS-49 49 Cu. Ft. Laboratory 34.75 x 54 x 81.75 In. Standard Glass
7546.00
Each
ABT-VS-LS-72 72 Cu. Ft. Laboratory 34 x 81 x 81.75 In. Standard Glass
9482.00
Each
