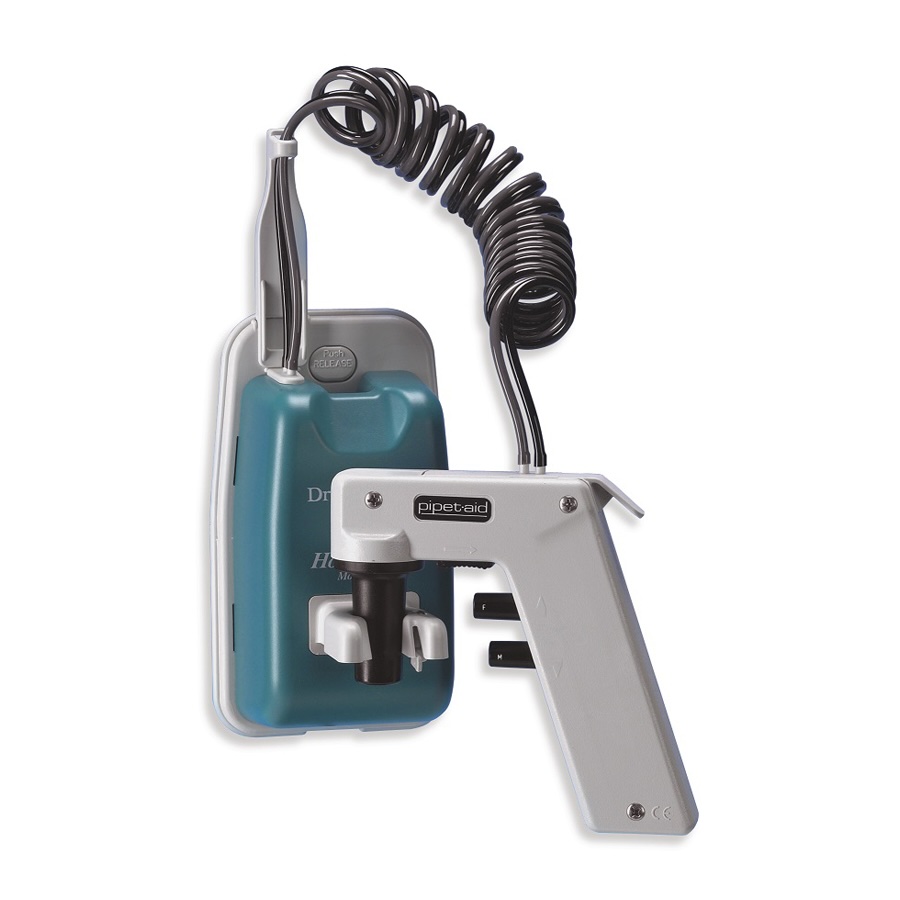

Drummond Pipet-Aid XL and Hood Mate Models

Item #: ASDRUM2

Specifications

  Pipet-Aid® XL Pipet-Aid® Hood Mate®
Item # 4-098-105 4-000-300
Size 10 in. 5.5 in.
Weight 8 oz. 4.3 oz (handle)
Capacity Accepts 1mL to 100 mL pipets Accepts 1mL to 100 mL pipets
Battery 3/VH 700AAA (3.6V/750 mAh) Power Supply, 110V
Speed 3 Speed Buttons 3 Speed Buttons
(S)low, (M)edium and (F)ast (S)low, (M)edium and (F)ast







PR1MA MyVolt Touch

PR1MA™ Touch Power Supply

  • Touch screen control
  • Bright color display
  • Dual orientation, auto-rotating display

The PR1MA™ Touch is a workhorse electrophoresis power supply, ideal for the efficient separation of nucleic acids and proteins as well as basic western blotting applications. Four pairs of output jacks are wired in parallel for connecting multiple electrophoresis tanks. A color touch screen allows quick setting and monitoring of all run conditions, including run time, voltage, and current. Users can select “Constant Current” or “Constant Voltage” during an electrophoresis run, keeping the chosen parameter fixed as resistance changes. The dual orientation design with a rotating display allows the PR1MA™ Touch to be installed in the most convenient location, on a shelf or bench, saving valuable space.



The PR1MA™ Touch features a logical user interface.

Setting up an electrophoresis run couldn’t be easier; simply touch the parameter to select it, press the “up” and “down” arrows to adjust the value, and then touch “Start”. All parameters are always displayed, with no need to toggle between Time, Voltage, or Amperage. In addition, the run status is always displayed.



Specifications


Output SettingsConstant voltage or constant current
Voltage Output10 to 300 V (1 V increments)
Current Output4 to 400mA  (1 mA increments)
Max Wattage100 W
Timer1 min. to 20 hours or continuous
Output Terminals4 pairs (wired in parallel)
SafetyNo load detection, overload detection with power limitying function
Display2 x 2 In. color touchscreen
Dimensions8.5 x 6.3 x 4.0 In.
Weight2 lbs
Electrical*100 V to 230 V, 50-60 Hz (Universal Input)
Warranty2 years



Proudly made in the USA! Click here for more made in America products!
Enduro Mini Power Suppy
Item#:
ASPOWERSUP1

myVolt Mini
Item#:
ASPS2100

SKU Number Type Color Qty Price Quantity Add to Cart
4-098-105 Pipet-Aid XL, 110V White, Yellow 1/ea
385.00
Each
4-000-300 Pipet-Aid Hood Mate,110V White, Gray 1/ea
475.00
Each

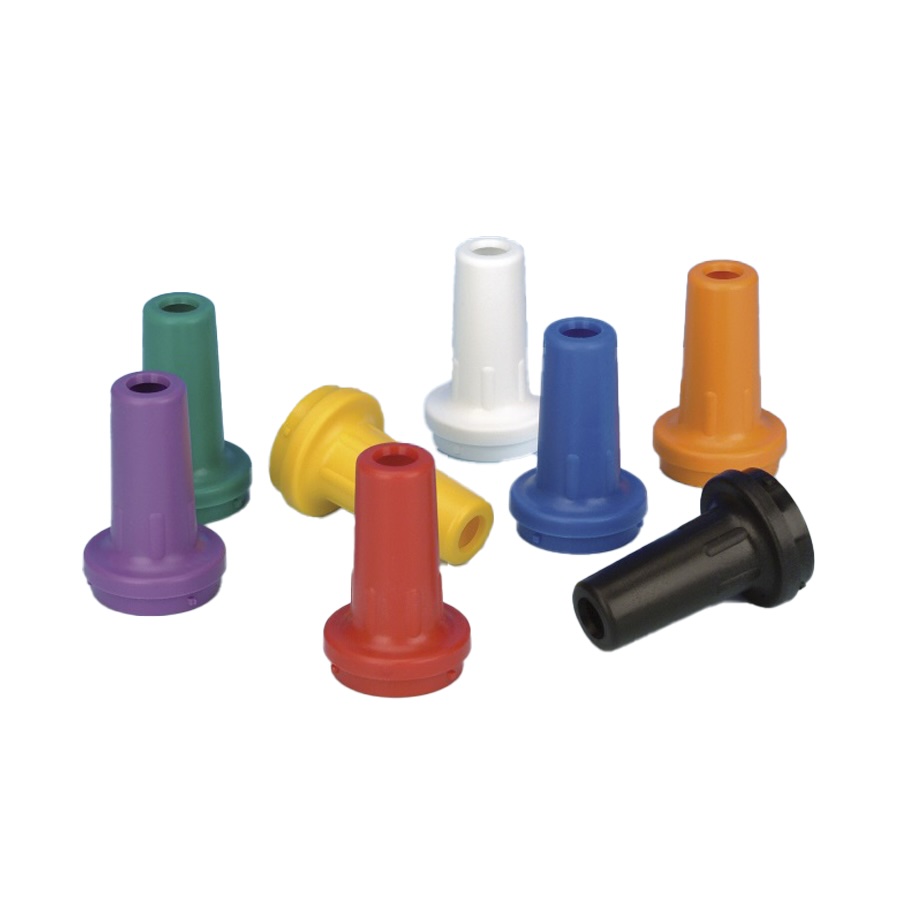

4-000-079 EZ Grip TC Nosepiece Black 1/ea
25.00
Each
4-000-079-B EZ Grip TC Nosepiece Blue 2/pk
40.00
Each
4-000-079-G EZ Grip TC Nosepiece Green 2/pk
40.00
Each
4-000-079-O EZ Grip TC Nosepiece Orange 2/pk
40.00
Each
4-000-079-R EZ Grip TC Nosepiece Red 2/pk
40.00
Each
4-000-079-V EZ Grip TC Nosepiece Violet 2/pk
40.00
Each
4-000-079-W EZ Grip TC Nosepiece White 1/ea
25.00
Each
4-000-051 TC Replacement Filters (8 um), Non-Sterile White 5/pk
37.00
Each
4-000-052 TC Replacement Filters (8 um), Non-Sterile White 50/pk
300.00
Each
4-000-050 Portable Nosepiece Kit w/ 4 Filters (8um) Black 1/ea
105.00
Each

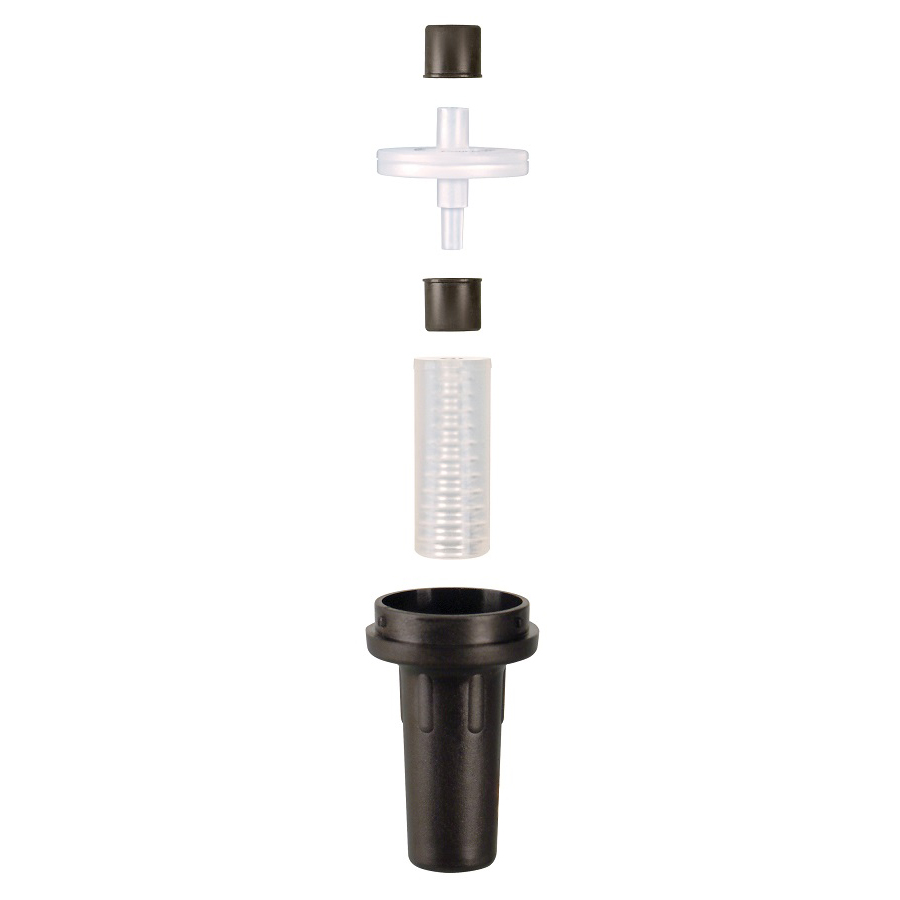

4-000-087 XP/Hoodmate Nosepiece Kit w/ 4 Filters (8um) Black 1/ea
95.00
Each
4-000-062 Pipet-Aid XL Handrest White 1/ea
16.00
Each
4-000-065 Power Supply/Charger ForPipet-Aid XL White 1/ea
34.00
Each
4-000-057 TC Rubber Gaskets Black 1/pk
15.00
Each
Pipet Aid XL
Drummond Pipet-Aid XL and Hood Mate Models
Special Order
Quantity:
