Home > Supplies > Racks > Freezer Storage Racks > Upright Drawer Freezer Racks for 3 in. Boxes

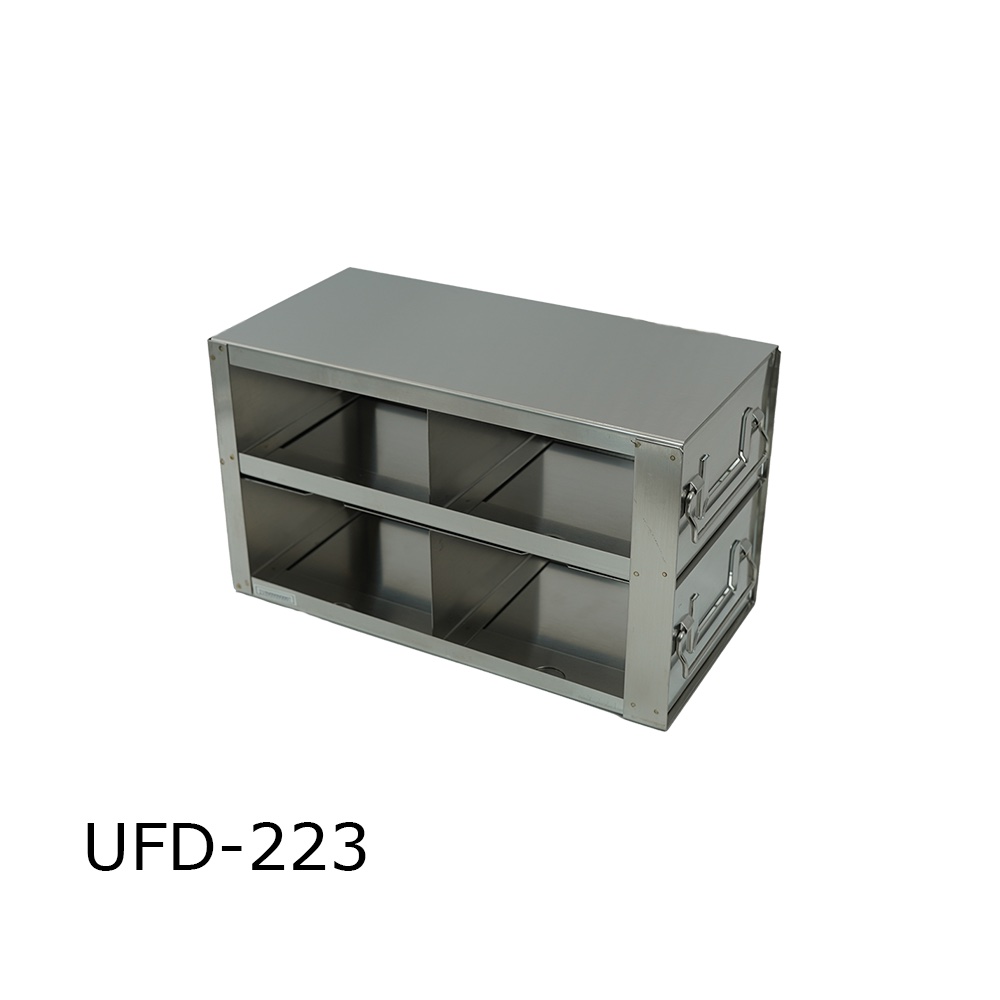

Upright Drawer Freezer Racks for 3 in. Boxes

Item #: ASUPDRWFRZRK3IN

Item #	Rack Dimensions (D x W x H)	Compartment Dimensions (D x W x H)	Box Size	Box Configuration (D x H)
UFD-223	289 x 140 x 164 mm 11 3/8 x 5 1/2 x 6 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	2 x 2
UFD-233	289 x 140 x 256 mm 11 3/8 x 5 1/2 x 10 1/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	2 x 3
UFD-243	289 x 140 x 341 mm 11 3/8 x 5 1/2 x 13 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	2 x 4
UFD-323	426 x 140 x 164 mm 16 3/4 x 5 1/2 x 6 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	3 x 2
UFD-333	426 x 140 x 256 mm 16 3/4 x 5 1/2 x 10 1/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	3 x 3
UFD-343	426 x 140 x 341 mm 16 3/4 x 5 1/2 x 13 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	3 x 4
UFD-423	566 x 140 x 164 mm 22 5/16 x 5 1/2 x 6 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	4 x 2
UFD-433	566 x 140 x 256 mm 22 5/16 x 5 1/2 x 10 1/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	4 x 3
UFD-443	566 x 140 x 341 mm 22 5/16 x 5 1/2 x 13 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	4 x 4
UFD-443-S	566 x 420 x 140 mm 22 3/8 x 16 9/16 x 5 1/2 in.	137.4 x 79.4 x 133 mm 5 1/2 x 3 1/8 x 5 1/4 in.	Drawer Rack for 3 in. boxes, made to fit Binder Freezers. Rack Only – Top-loaded drawer rack.	4 x 4
UFD-453	566 x 140 x 420 mm 22 5/16 x 5 1/2 x 16 9/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	4 x 5
UFD-533	687 x 140 x 256 mm 27 1/16 x 5 1/2 x 10 1/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	5 x 3
UFD-543	687 x 140 x 341 mm 27 1/16 x 5 1/2 x 13 7/16 in.	133 x 137.4 x 75.9 mm 5 3/8 x 5 1/4 x 3 in.	Drawer Rack for 3 in. boxes	5 x 4

PR1MA™ 3D Nutating Shaker with Variable Speed

Adjustable speed & tilt for a wide range of applications
Large 12 x 12 in. work surface
Insta-TILT™ technology for instant adjustment to the tilt angle
Dual platform accessory doubles work surface
Cold room and incubator safe

The PR1MA™ 3D is designed to provide the precise speeds and tilt angles required for a broad range of molecular and biological mixing applications. The user can adjust both parameters to match the vessel size and the volume of liquid being mixed, yielding optimum results.
This model includes both flat and dimpled (autoclavable) mats for mixing a wide variety of tubes and other vessels.

Proprietary InstaTilt™ technology means no tools, no disassembly. Simply grip the platform with two hands and move to the desired position.

Stacking platforms can be purchased as accessories, effectively doubling the usable surface area of each model. PR1MA™ 3D features a maintenance-free, brushless motor, capable of loads up to 4.4 lbs, and is safe for use in cold rooms and incubators.

Specifications

Speed Range	Variable; 2 to 30 rpm
Tilt Angle	Variable; 0 to +/-30°
Platform Size	12 x 12 in. / 30 x 30 cm
Load Capacity	5 lbs (2.3kg)
Operating Temp. Range	+4°C to +50°C
Dimensions (in)	12 x 12 x 8 in.
Dimensions (cm)	30 x 30 x 20 cm
Weight	7.5 lbs (3.4kg)
Electrical	115 or 230V 50-60Hz; 50W
Warranty	2 years

TubeRocker 2D Mini

Item#:

ASTUBEROCKER

PR1MA™ Variable Speed 2D Rocker

Item#:

ASROCKER9

SKU Number	Rack Dims (DxWxH)	Compartment Dims (DxWxH)	Box Size	Box Config (DxH)	Price	Quantity	Add to Cart
UFD-223	11.38 x 5.5 x 6.44 in.	5.38 x 5.25 x 3 in.	3 in.	2 x 2	61.9300 69.00 Each
UFD-233	11.38 x 5.5 x 10.06 in.	5.38 x 5.25 x 3 in.	3 in.	2 x 3	69.1800 77.00 Each
UFD-243	11.38 x 5.5 x 13.44 in.	5.38 x 5.25 x 3 in.	3 in.	2 x 4	103.2300 114.00 Each
UFD-323	16.75 x 5.5 x 6.44 in.	5.38 x 5.25 x 3 in.	3 in.	3 x 2	69.1800 77.00 Each
UFD-333	16.75 x 5.5 x 10.06 in.	5.38 x 5.25 x 3 in.	3 in.	3 x 3	107.5200 119.00 Each
UFD-343	16.75 x 5.5 x 13.44 in.	5.38 x 5.25 x 3 in.	3 in.	3 x 4	147.4800 163.00 Each
UFD-423	22.31 x 5.5 x 6.44 in.	5.38 x 5.25 x 3 in.	3 in.	4 x 2	92.2400 102.00 Each
UFD-433	22.31 x 5.5 x 10.06 in.	5.38 x 5.25 x 3 in.	3 in.	4 x 3	138.1200 152.00 Each
UFD-443	22.31 x 5.5 x 13.44 in.	5.38 x 5.25 x 3 in.	3 in.	4 x 4	185.8000 205.00 Each
UFD-443-S	22.38 x 16.56 x 5.5 in.	5.5 x 3.13 x 5.25 in.	3 in.	4 x 4	212.7000 234.00 Each
UFD-453	22.31 x 5.5 x 16.56 in.	5.38 x 5.25 x 3 in.	3 in.	4 x 5	230.1400 254.00 Each
UFD-533	27.06 x 5.5 x 10.06 in.	5.38 x 5.25 x 3 in.	3 in.	5 x 3	192.0400 212.00 Each
UFD-543	27.06 x 5.5 x 13.44 in.	5.38 x 5.25 x 3 in.	3 in.	5 x 4	265.4400 292.00 Each

Upright Drawer Freezer Racks for 3 in. Boxes

Special Order

Quantity:

Request A Quote

For quote requests, include the specific product number(s) in the message box below. Or for a faster experience, existing customers can log in to your account, add the item(s) to your cart, and click the “Request a Quote” button at the bottom of the page during the checkout process.

Request a Quote
