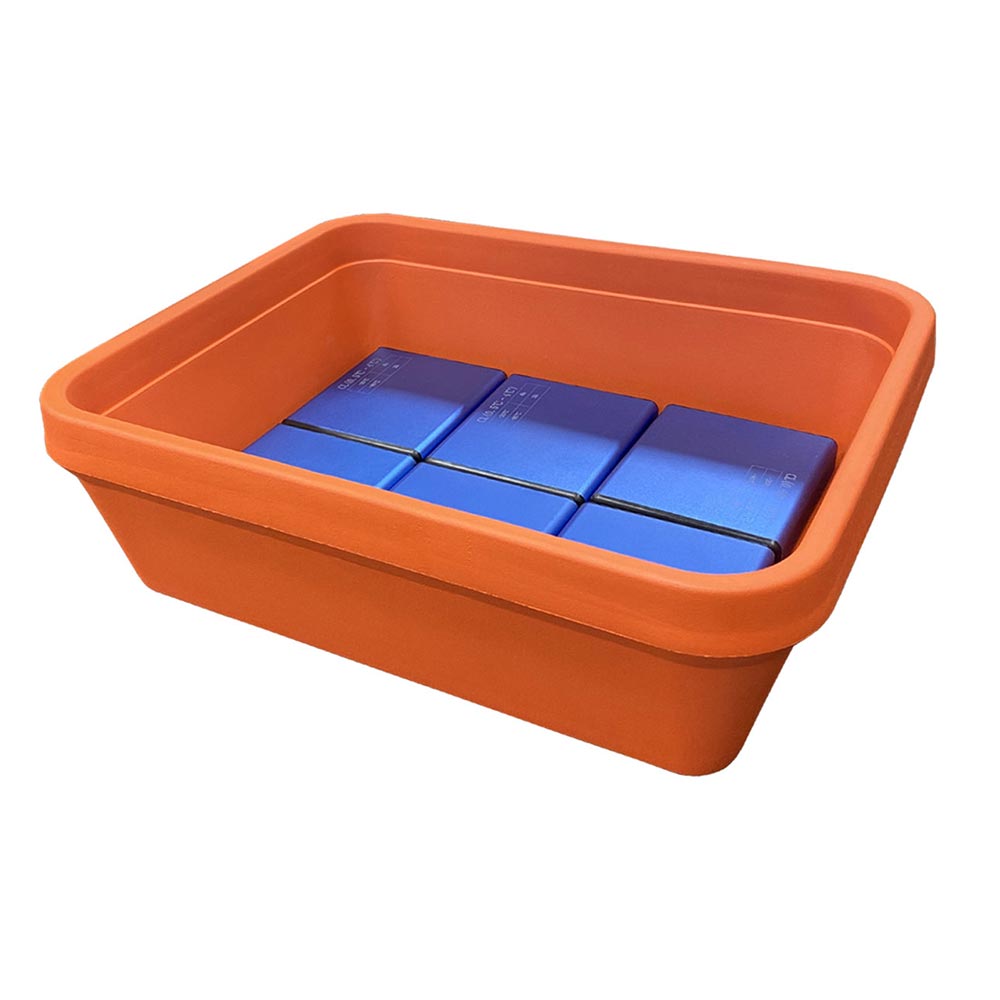

CryoCommand™ for Replacing Ice Baths

Temperature Range

Cooling Sources

Cryo-Core Preparation

Tube Module Preparation

Insulation Time (open cover)

0.5°C to 4°C

Cryo-Core CL

-20°C freezer for 4 hours, then 10 minutes at room temp, then use

Precool tube module at 0.5°C to 4°C for 30 min.

4h

0.5°C to 4°C

-20°C freezer for more than 4 hours, then use directly

Use tube module at room temperature

0.5°C to 4°C

-80°C freezer for more than 2 hours, then use directly

-18°C to -4°C

Cryo-Core CF

-20°C freezer for more than 6 hours

Precool tube module at ≤ -20°C for 30 min.

3h

-18°C to -4°C

-80°C freezer for more than 3 hours

-78°C to -30°C

Dry Ice

Add 200g of dry ice into the bottom of the FreezeBox

Use tube module at room temperature

4h

Cryo-Core

Product Name

Temp. Range

Freezer Temp.

Freeze Time

Dimensions

CL

Cooling Core

0.5°C to 4°C

-20°C

4h+

105 x 100 x 26 mm

-80°C

2h+

CF

Freeze Core

-18°C to -4°C

-20°C

6h+

-80°C

3h+

Tube Module

Part Number

Specifications

Dimensions

2 mL Tubes

CM01

30 x 2 mL Cryo Tube

119 x 101 x 38 mm

1.5 mL Tubes

CM02

48 x 1.5 mL Cryo Tube

5 mL Tubes

CM03

30 x 5 mL Cryo Tube

PCR Tubes

CM04

96 x PCR Module
